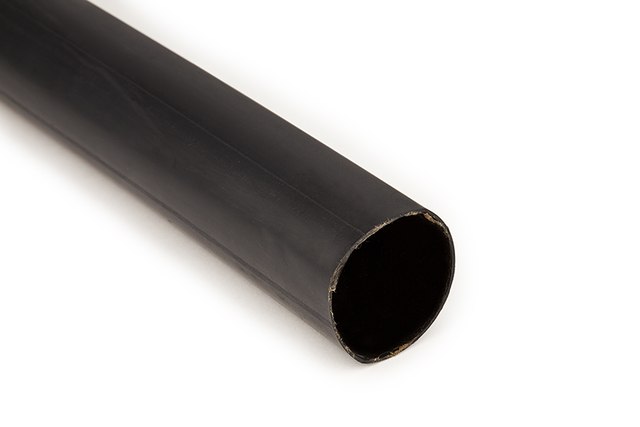

3M™ Heat Shrink Multiple-Wall, Semi-Rigid Polyolefin Tubing MW-3/8-48"-Black-12 Pcs, 48 in length sticks, 12 pieces/case - 7000133572

Sold As: 12-Pack
SKU: 7000133572
MPN: 7000133572
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051128597156
3M ID: 80611473762
5 Digit UPC: 59715
$185.94 ($15.49 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Tubing MW is a multiple wall tubing offering the advantage of integral, adhesive lined construction. This tubing has a 2.5:1 shrink ratio and provides insulation for 600V rated applications. Semi rigid polyolefin construction ensures moisture seal protection for automotive and marine applications.

Features

  • Rated for 600V applications
  • Provides the advantage of integral, adhesive-lined construction
  • Withstands temperatures of -67 to 230 degrees F (-55 to 110 degrees C)
  • Made of black semi-rigid polyolefin
  • Multiple wall is co-extruded and cross-linked to offer a meltable inner wall
  • Offers a skintight fit and strain-relief sealing of electrical connections, wire splices and components
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Flame RetardantNo
Non-CorrosiveYes
Inner Diameter Before Shrink (Metric)9.53
Inner Diameter Before Shrink (Metric) UOMmm
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Maximum Operating Temperature (Fahrenheit) UOMDegree
Operating Temperature Range (Celsius)-55 °C to 110 °C
Operating Temperature Range (Fahrenheit)-67 °F to 230 °F
Minimum Expanded Tubing I. D.0.375
Operating Temperature (Celsius)-55 °C to 110 °C
UL File NumberE-157227
Inner Diameter After Shrink (Metric) UOMmm
Inner Diameter Before Shrink (Imperial)0.375
Inner Diameter After Shrink (Metric)4.75
Inner Diameter After Shrink (Imperial) UOMin
Maximum Operating Temperature (Fahrenheit)230.0
Maximum Operating Temperature (Celsius)110.0
MaterialPolyolefin
Overall Length (Imperial) UOMin
Operating Temperature (Fahrenheit)-67 °F to 230 °F
Overall Length (Metric)1219.0
Inner Diameter Before Shrink (Imperial) UOMin
Tubing TypeDual Wall (Adhesive Lined)
Overall Length (Imperial)48.0
Minimum Expanded Tubing I. D. UOMin
Units per Case12.0
Heat Shrink TypeAdhesive-Lined Polyolefin Heat Shrink Tubing
Maximum Operating Temperature (Celsius) UomDegree
Overall Length (Metric) UOMmm
Product ColorBlack
Shrink Ratio2.5:1
Inner Diameter After Shrink (Imperial)0.187
Elongation UOM%
