3M Products & Supplies

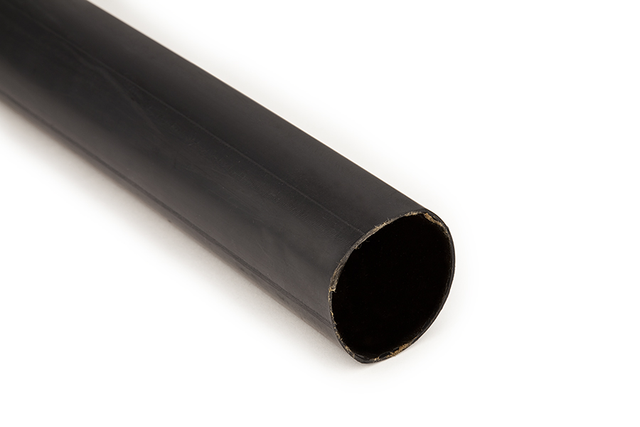

3M™ Heat Shrink Multiple-Wall, Semi-Rigid Polyolefin Tubing MW-1/2-48"-Black-75 Pcs, 48 in length sticks, 75 pieces/case - 7100083082

Sold As: 75-Pack
SKU: 7100083082
MPN: 7100083082
Stock Item: Stock items typically ship within 2-3 business days
UPC: 10051128598259
3M ID: 80611600869
5 Digit UPC: 59825
$625.20 ($8.34 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Tubing MW is a multiple wall tubing offering the advantage of integral, adhesive lined construction. This tubing has a 2.5:1 shrink ratio and provides insulation for 600V rated applications. Semi rigid polyolefin construction ensures moisture seal protection for automotive and marine applications.

Features

  • Made of black semi-rigid polyolefin
  • Withstands temperatures of -67 to 230 degrees F (-55 to 110 degrees C)
  • Rated for 600V applications
  • Offers a skintight fit and strain-relief sealing of electrical connections, wire splices and components
  • Provides the advantage of integral, adhesive-lined construction
  • Multiple wall is co-extruded and cross-linked to offer a meltable inner wall
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Overall Length (Imperial)48.0
Inner Diameter After Shrink (Metric)5.0
Non-CorrosiveYes
Maximum Operating Temperature (Celsius) UomDegree
Operating Temperature (Fahrenheit)-67 °F to 230 °F
Tubing TypeDual Wall (Adhesive Lined)
Operating Temperature (Celsius)-55 °C to 110 °C
Inner Diameter Before Shrink (Metric) UOMmm
UL File NumberE-157227
Product ColorBlack
Overall Length (Imperial) UOMin
Maximum Operating Temperature (Fahrenheit) UOMDegree
Inner Diameter After Shrink (Imperial)0.195
MaterialPolyolefin
Maximum Operating Temperature (Fahrenheit)230.0
Inner Diameter Before Shrink (Metric)12.7
Maximum Operating Temperature (Celsius)110.0
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Flame RetardantNo
Minimum Expanded Tubing I. D. UOMin
Shrink Ratio2.5:1
Inner Diameter After Shrink (Metric) UOMmm
Minimum Expanded Tubing I. D.0.5
Inner Diameter Before Shrink (Imperial) UOMin
Inner Diameter Before Shrink (Imperial)0.5
Inner Diameter After Shrink (Imperial) UOMin
Heat Shrink TypeAdhesive-Lined Polyolefin Heat Shrink Tubing
