3M Products & Supplies

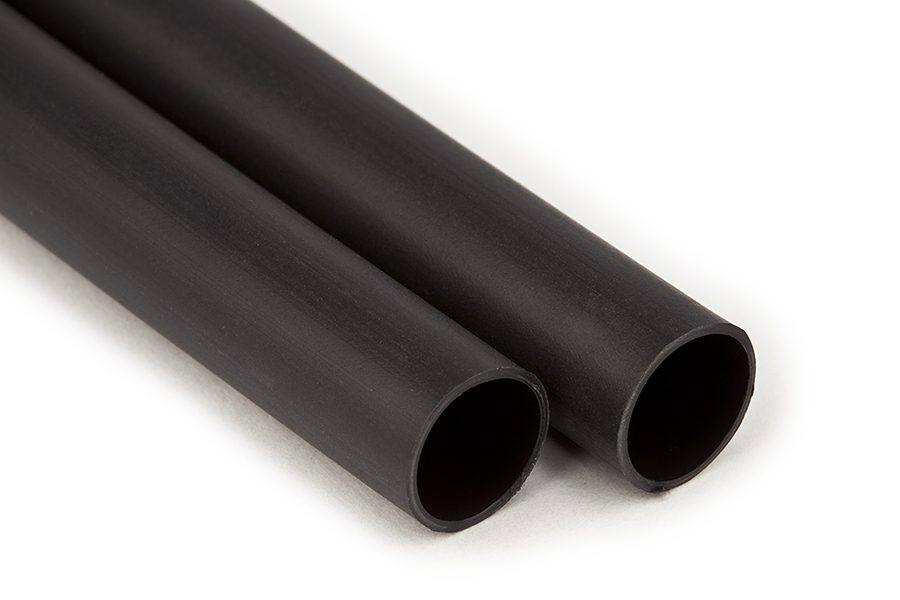

3M™ Heat Shrink Multiple-Wall Polyolefin Tubing EPS400-.450-48"-Black-75 Pcs, 48 in length sticks, 75 pieces/case - 7100083080

Sold As: 75-Pack
SKU: 7100083080
MPN: 7100083080
Stock Item: Stock items typically ship within 2-3 business days
UPC: 10051128599379
3M ID: 80611601982
5 Digit UPC: 59937
$619.07 ($8.25 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Tubing EPS-400 is a dual wall tubing provides the advantage of integral, adhesive lined construction. This flame retardant tubing with a 4:1 shrink ratio offers insulation for 600V rated applications. The semi rigid polyolefin construction has an internal layer of thermoplastic adhesive which offers moisture seal protection in automotive and marine applications.

Features

  • Offers protection for sealing voids in multiple wire bundles for automotive and marine applications
  • Offers the advantage of integral, adhesive-lined construction
  • Flame-retardant tubing is rated for 600V applications
  • Made of semi-rigid polyolefin
  • Withstands temperatures of -67 to 230 degrees F (-55 to 110 degrees C)
  • Dual-wall construction provides abrasion resistance and moisture-seal protection
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Inner Diameter After Shrink (Metric)2.67
Inner Diameter After Shrink (Imperial)0.105
Shrink Ratio4:1
Inner Diameter Before Shrink (Imperial)0.45
Inner Diameter Before Shrink (Metric)11.43
Minimum Expanded Tubing I. D. UOMin
Maximum Operating Temperature (Fahrenheit) UOMDegree
Maximum Operating Temperature (Fahrenheit)230.0
Maximum Operating Temperature (Celsius) UomDegree
Overall Length (Imperial) UOMin
Product ColorBlack
MaterialPolyolefin
Overall Length (Imperial)48.0
Non-CorrosiveYes
Tubing TypeDual Wall (Adhesive Lined)
Heat Shrink TypeAdhesive-Lined Polyolefin Heat Shrink Tubing
Operating Temperature (Fahrenheit)-67 °F to 230 °F
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
UL File NumberE-157227
Minimum Expanded Tubing I. D.0.45
Inner Diameter Before Shrink (Imperial) UOMin
Flame RetardantYes
Maximum Operating Temperature (Celsius)110.0
Inner Diameter Before Shrink (Metric) UOMmm
Operating Temperature (Celsius)-55 °C to 110 °C
Inner Diameter After Shrink (Metric) UOMmm
Inner Diameter After Shrink (Imperial) UOMin
