3M Products & Supplies

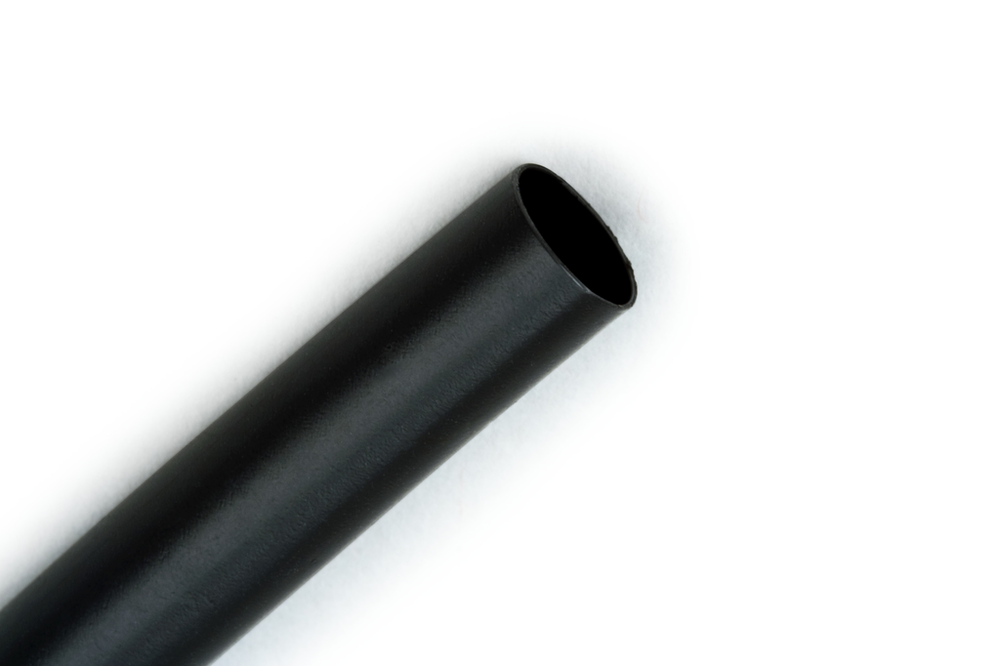

3M™ Heat Shrink Multiple-Wall, Semi-Rigid Polyolefin Tubing MW-3/4-48"-Black-45 Pcs, 48 in length sticks, 45 pieces/case - 7010350189

Sold As: 45-Pack
SKU: 7010350189
MPN: 7010350189
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051128598269
3M ID: 80611600877
5 Digit UPC: 59826
$666.76 ($14.82 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Tubing MW is a multiple wall tubing offering the advantage of integral, adhesive lined construction. This tubing has a 2.5:1 shrink ratio and provides insulation for 600V rated applications. Semi rigid polyolefin construction ensures moisture seal protection for automotive and marine applications.

Features

  • Withstands temperatures of -67 to 230 degrees F (-55 to 110 degrees C)
  • Rated for 600V applications
  • Offers a skintight fit and strain-relief sealing of electrical connections, wire splices and components
  • Provides the advantage of integral, adhesive-lined construction
  • Made of black semi-rigid polyolefin
  • Multiple wall is co-extruded and cross-linked to offer a meltable inner wall
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Non-CorrosiveYes
UL File NumberE-157227
Shrink Ratio2.5:1
Inner Diameter After Shrink (Imperial) UOMin
Product ColorBlack
MaterialPolyolefin
Operating Temperature (Celsius)-55 °C to 110 °C
Minimum Expanded Tubing I. D. UOMin
Maximum Operating Temperature (Celsius) UomDegree
Heat Shrink TypeAdhesive-Lined Polyolefin Heat Shrink Tubing
Maximum Operating Temperature (Celsius)110.0
Inner Diameter Before Shrink (Imperial) UOMin
Overall Length (Imperial) UOMin
Inner Diameter Before Shrink (Metric)19.05
Operating Temperature (Fahrenheit)-67 °F to 230 °F
Flame RetardantNo
Inner Diameter Before Shrink (Metric) UOMmm
Inner Diameter After Shrink (Metric) UOMmm
Minimum Expanded Tubing I. D.0.75
Tubing TypeDual Wall (Adhesive Lined)
Inner Diameter After Shrink (Imperial)0.313
Inner Diameter After Shrink (Metric)7.95
Maximum Operating Temperature (Fahrenheit) UOMDegree
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Maximum Operating Temperature (Fahrenheit)230.0
Inner Diameter Before Shrink (Imperial)0.75
Overall Length (Imperial)48.0
