3M Products & Supplies

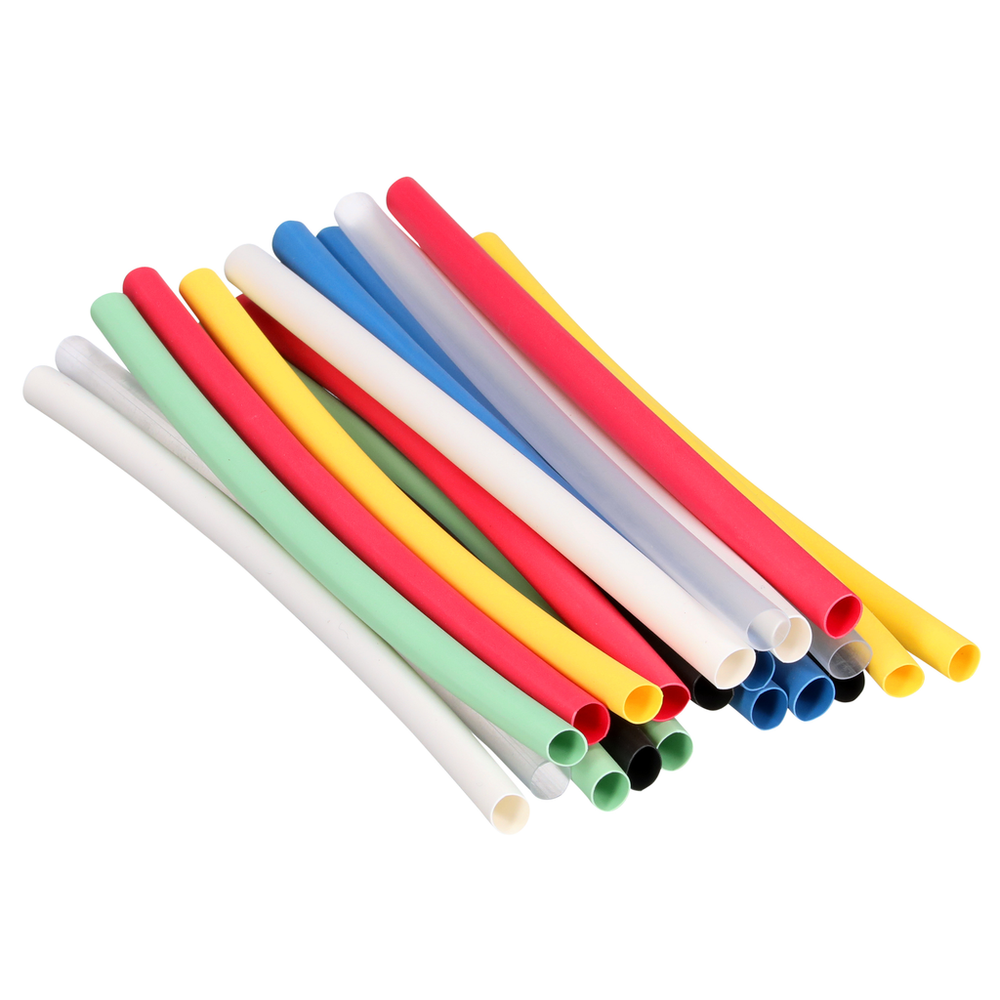

3M™ Heat Shrink Thin Wall Tubing Assortment Pack FP-301-1/4-Assort colors, 6" pieces, 3 Each of 7 Color, 10 pieces/case - 7000132601

Sold As: 10-Pack
SKU: 7000132601
MPN: 7000132601
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051135366219
3M ID: 80610785224
5 Digit UPC: 36621
$207.34 ($20.73 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Tubing FP-301 is a general purpose, thin wall tubing that provides a balance of electrical, physical and chemical properties, making it ideal for industrial and military applications. This tubing has a 2:1 shrink ratio and provides flame retardant insulation for 600V rated applications. It has a flexible polyolefin construction that offers moisture seal protection.

Features

  • A VARIETY OF APPLICATIONS: Offers a 2:1 shrink-fit ratio and serves as protection in wire-harnessing, split-resistance covering, wire marking, wire bundling, and component packaging
  • KEY SPECIFICATIONS: UL Listed, File E-39100, SAE AS23053/5, Class 1 (all colors), Class 2 (clear), CSA Certified, and RoHS 2011/65/EU Compliant
  • FLAME-RETARDANT TUBING: For applications up to 600V (clear is not flame retardant)
  • FOR DEMANDING CONDITIONS: Performs at an operating temperature up to 275 °F (135 °C)
  • HIGH-STRENGTH PROTECTION: Balances electrical, physical, and chemical properties for various industrial and military applications
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
MaterialFlexible Polyolefin
Maximum Operating Temperature (Fahrenheit)275.0
Inner Diameter Before Shrink (Imperial) UOMin
Non-CorrosiveYes
Maximum Operating Temperature (Fahrenheit) UOMDegree
Dielectric Strength900.0
Flame RetardantYes (except clear)
UL ApprovalYes
Maximum Operating Temperature (Celsius) UomDegree
Shrink Ratio2:1
Minimum Shrink Temperature (Celsius)100.0
ApplicationElectrical Insulation; High-tenacity and chemically resistant tubing
Overall Length (Imperial) UOMin
Inner Diameter Before Shrink (Metric)6.35
Inner Diameter After Shrink (Imperial)0.125
Elongation UOMdB
Inner Diameter Before Shrink (Imperial)0.25
Tubing TypeSingle Wall (Thin)
Heat Shrink TypeHeat Shrink Tubing Kits
Inner Diameter After Shrink (Imperial) UOMin
Dielectric Strength UOMV/mil
Assortment KitsYes
Units per Case21.0
Adhesive MaterialNone
Maximum Operating Temperature (Celsius)135.0
Inner Diameter After Shrink (Metric)3.18
Overall Length (Metric)152.0
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Operating Temperature (Celsius)-55 to 135 Degrees Celsius
Operating Temperature Range (Celsius)-55 °C to +135 °C
Overall Length (Metric) UOMmm
Inner Diameter Before Shrink (Metric) UOMmm
Overall Length (Imperial)6.0
Operating Temperature Range (Fahrenheit)-67 °F to 275 °F
Inner Diameter After Shrink (Metric) UOMmm
Mil SpecAMS-DTL-23053/5, Class 1
