3M Products & Supplies

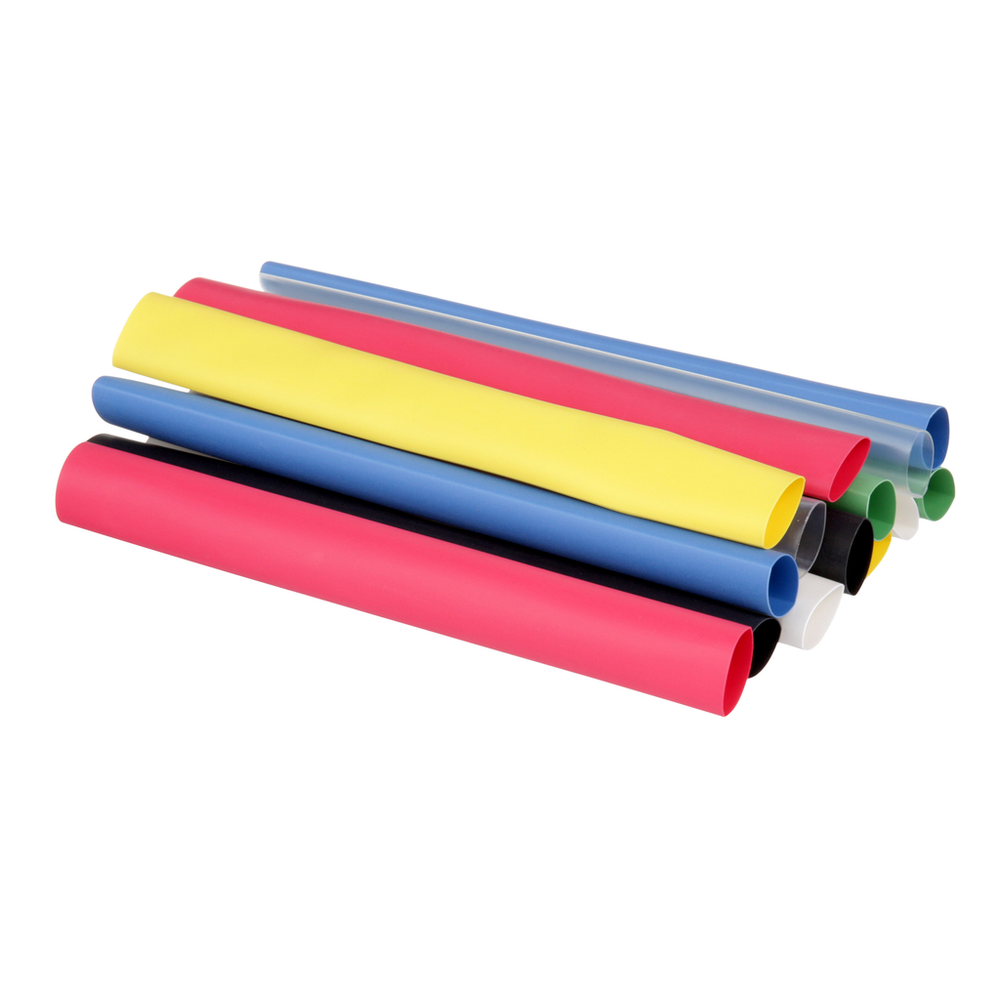

3M™ Heat Shrink Tubing Assortment Pack FP-301-3/8-Assort: 6 in length pieces, 2 each of 7 colors, 10/case - 7000132602

Sold As: 10-Pack
SKU: 7000132602
MPN: 7000132602
For an accurate lead time please contact us
UPC: 00051135366226
3M ID: 80610785232
5 Digit UPC: 36622
$195.82 ($19.58 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Tubing FP-301 is a general purpose, thin wall tubing that provides a balance of electrical, physical and chemical properties, making it ideal for industrial and military applications. This tubing has a 2:1 shrink ratio and provides flame retardant insulation for 600V rated applications. It has a flexible polyolefin construction that offers moisture seal protection.

Features

  • A VARIETY OF APPLICATIONS: Offers a 2:1 shrink-fit ratio and serves as protection in wire-harnessing, split-resistance covering, wire marking, wire bundling, and component packaging
  • HIGH-STRENGTH PROTECTION: Balances electrical, physical, and chemical properties for various industrial and military applications
  • FLAME-RETARDANT TUBING: For applications up to 600V (clear is not flame retardant)
  • FOR DEMANDING CONDITIONS: Performs at an operating temperature up to 275 °F (135 °C)
  • KEY SPECIFICATIONS: UL Listed, File E-39100, SAE AS23053/5, Class 1 (all colors), Class 2 (clear), CSA Certified, and RoHS 2011/65/EU Compliant
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Maximum Operating Temperature (Celsius) UomDegree
Inner Diameter Before Shrink (Metric)9.53
Flame RetardantYes (except clear)
Operating Temperature Range (Fahrenheit)-67 °F to 275 °F
Maximum Operating Temperature (Fahrenheit) UOMDegree
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Heat Shrink TypeHeat Shrink Tubing Kits
Shrink Ratio2:1
Inner Diameter After Shrink (Metric) UOMmm
Maximum Operating Temperature (Celsius)135.0
Inner Diameter After Shrink (Imperial)0.187
Maximum Operating Temperature (Fahrenheit)275.0
Tubing TypeSingle Wall (Thin)
Overall Length (Imperial)6.0
UL ApprovalYes
Operating Temperature (Celsius)-55 to 135 Degrees Celsius
Inner Diameter Before Shrink (Imperial) UOMin
Overall Length (Metric) UOMmm
Units per Case14.0
Assortment KitsYes
ApplicationElectrical Insulation; High-tenacity and chemically resistant tubing
Operating Temperature Range (Celsius)-55 °C to +135 °C
Inner Diameter After Shrink (Metric)4.75
Inner Diameter Before Shrink (Imperial)0.375
Adhesive MaterialNone
Minimum Shrink Temperature (Celsius)100.0
Overall Length (Metric)152.0
Non-CorrosiveYes
Overall Length (Imperial) UOMin
MaterialFlexible Polyolefin
Dielectric Strength UOMV/mil
Elongation UOMdB
Dielectric Strength900.0
Inner Diameter After Shrink (Imperial) UOMin
Mil SpecAMS-DTL-23053/5, Class 1
Inner Diameter Before Shrink (Metric) UOMmm
