3M Products & Supplies

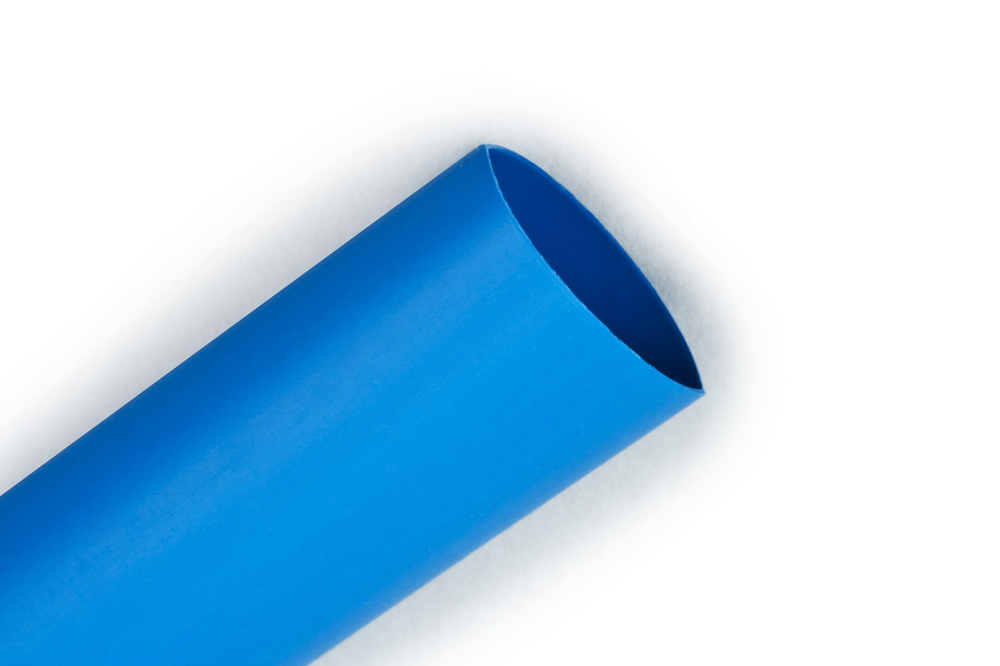

3M™ Heat Shrink Thin-Wall Tubing FP-301-1 1/2-48"-Blue-24 Pcs, 48 in Length sticks, 24 pieces/case - 7010400842

Sold As: 480-Pack
SKU: 7010400842
MPN: 7010400842
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051128599013
3M ID: 80611601628
5 Digit UPC: 59901
$5,417.48 ($11.29 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Tubing FP-301 is a general purpose, thin wall tubing that provides a balance of electrical, physical and chemical properties, making it ideal for industrial and military applications. This tubing has a 2:1 shrink ratio and provides flame retardant insulation for 600V rated applications. It has a flexible polyolefin construction that offers moisture seal protection.

Features

  • HIGH-STRENGTH PROTECTION: Balances electrical, physical, and chemical properties for various industrial and military applications
  • FLAME-RETARDANT TUBING: For applications up to 600V (clear is not flame retardant)
  • FOR DEMANDING CONDITIONS: Performs at an operating temperature up to 275 °F (135 °C)
  • KEY SPECIFICATIONS: UL Listed, File E-39100, SAE AS23053/5, Class 1 (all colors), Class 2 (clear), CSA Certified, and RoHS 2011/65/EU Compliant
  • A VARIETY OF APPLICATIONS: Offers a 2:1 shrink-fit ratio and serves as protection in wire-harnessing, split-resistance covering, wire marking, wire bundling, and component packaging
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Maximum Operating Temperature (Celsius) UomDegree
Heat Shrink TypeSingle-Wall Polyolefin Heat Shrink Tubing
Overall Length (Imperial) UOMin
Overall Length (Metric) UOMmm
Inner Diameter After Shrink (Imperial)0.75
UL Bug Temperature (Fahrenheit)257 Degrees Fahrenheit
Shrink Ratio2:1
Maximum Operating Temperature (Fahrenheit)275.0
Inner Diameter After Shrink (Imperial) UOMin
Flame RetardantYes
ApplicationElectrical Insulation; High-tenacity and chemically resistant tubing
Operating Temperature (Celsius)-55 to 135 Degrees Celsius
Overall Length (Imperial)48.0
UL Bug Temperature (Celsius)125 Degrees Celsius
UL Bug Voltage600 Volt
Inner Diameter After Shrink (Metric)19.05
Overall Width (Imperial)1.5
Mil SpecAMS-DTL-23053/5, Class 2
Maximum Operating Temperature (Celsius)135.0
Adhesive MaterialNone
Inner Diameter Before Shrink (Metric)38.1
Overall Width (Metric) UOMmm
Inner Diameter Before Shrink (Imperial) UOMin
Maximum Operating Temperature (Fahrenheit) UOMDegree
Operating Temperature (Fahrenheit)-67 °F to 275 °F
Inner Diameter Before Shrink (Metric) UOMmm
Overall Length (Metric)1220.0
Overall Width (Imperial) UOMin
Product ColorBlue
Tubing TypeSingle (Thin) Wall
Inner Diameter Before Shrink (Imperial)1.5
Non-CorrosiveYes
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Inner Diameter After Shrink (Metric) UOMmm
MaterialPolyolefin
Elongation UOMdB
