3M Products & Supplies

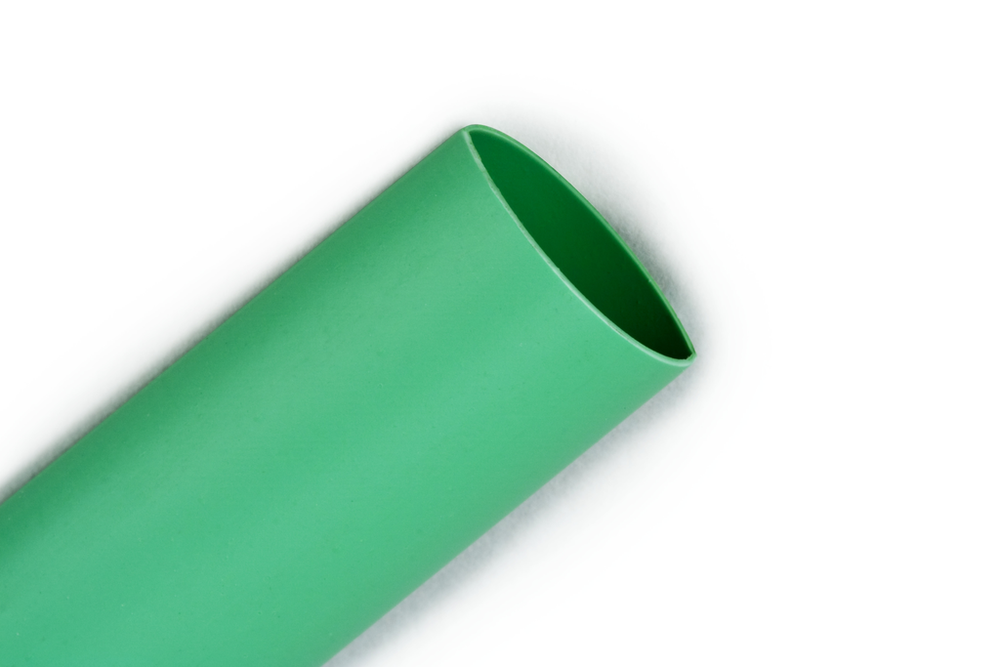

3M™ Heat Shrink Thin-Wall Tubing FP-301-1-48"-Green-24 Pcs, 48 in Length sticks, 24 pieces/case - 7010321012

Sold As: 24-Pack
SKU: 7010321012
MPN: 7010321012
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051128599587
3M ID: 80611602196
5 Digit UPC: 59958
$129.45 ($5.39 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Tubing FP-301 is a general purpose, thin wall tubing that provides a balance of electrical, physical and chemical properties, making it ideal for industrial and military applications. This tubing has a 2:1 shrink ratio and provides flame retardant insulation for 600V rated applications. It has a flexible polyolefin construction that offers moisture seal protection.

Features

  • HIGH-STRENGTH PROTECTION: Balances electrical, physical, and chemical properties for various industrial and military applications
  • FOR DEMANDING CONDITIONS: Performs at an operating temperature up to 275 °F (135 °C)
  • A VARIETY OF APPLICATIONS: Offers a 2:1 shrink-fit ratio and serves as protection in wire-harnessing, split-resistance covering, wire marking, wire bundling, and component packaging
  • FLAME-RETARDANT TUBING: For applications up to 600V (clear is not flame retardant)
  • KEY SPECIFICATIONS: UL Listed, File E-39100, SAE AS23053/5, Class 1 (all colors), Class 2 (clear), CSA Certified, and RoHS 2011/65/EU Compliant
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Inner Diameter Before Shrink (Imperial) UOMin
Adhesive MaterialNone
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Inner Diameter After Shrink (Metric) UOMmm
Inner Diameter After Shrink (Imperial)0.5
UL Bug Voltage600 Volt
Product ColorGreen
Inner Diameter After Shrink (Imperial) UOMin
Flame RetardantYes
Minimum Expanded Tubing I. D.1.0
Non-CorrosiveYes
Heat Shrink TypeSingle-Wall Polyolefin Heat Shrink Tubing
Maximum Operating Temperature (Fahrenheit)275.0
ApplicationElectrical Insulation; High-tenacity and chemically resistant tubing
Overall Length (Imperial)48.0
Overall Width (Imperial)1.0
Overall Width (Metric)25.4
Shrink Ratio2:1
Mil SpecAMS-DTL-23053/5, Class 1
Overall Width (Metric) UOMmm
Inner Diameter Before Shrink (Imperial)1.0
Maximum Operating Temperature (Celsius) UomDegree
Maximum Operating Temperature (Celsius)135.0
Operating Temperature (Fahrenheit)-67 °F to 275 °F
UL Bug Temperature (Celsius)125 Degrees Celsius
UL Bug Temperature (Fahrenheit)257 Degrees Fahrenheit
MaterialPolyolefin
Inner Diameter Before Shrink (Metric)25.4
Overall Width (Imperial) UOMin
Maximum Operating Temperature (Fahrenheit) UOMDegree
Operating Temperature (Celsius)-55 to 135 Degrees Celsius
Tubing TypeSingle (Thin) Wall
Minimum Expanded Tubing I. D. UOMin
Inner Diameter After Shrink (Metric)21.7
Overall Length (Metric) UOMmm
Inner Diameter Before Shrink (Metric) UOMmm
Elongation UOM%
Overall Length (Imperial) UOMin
Overall Length (Metric)1220.0
