3M Products & Supplies

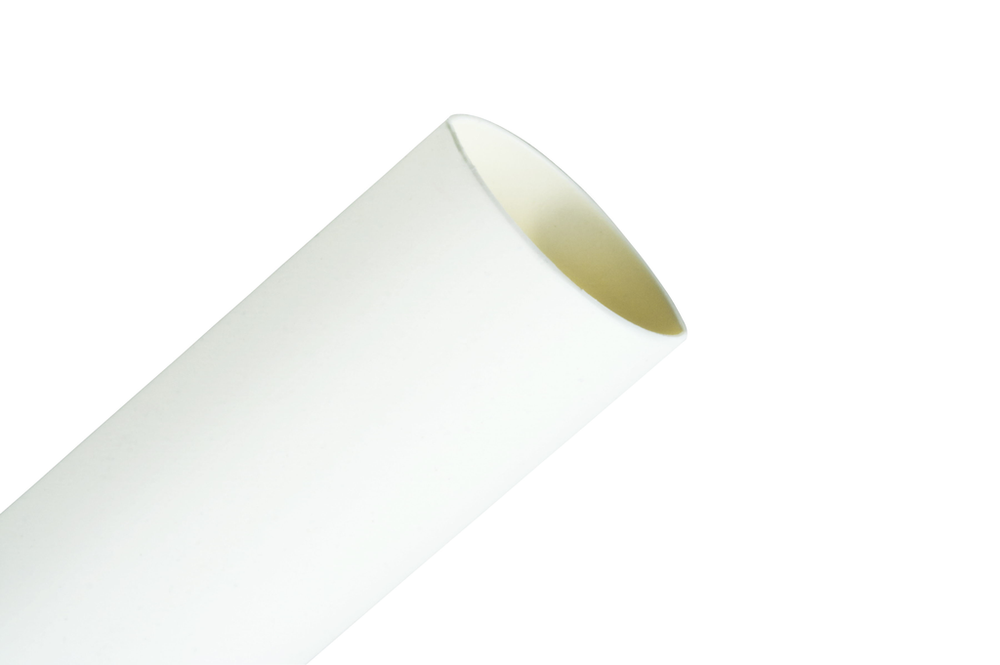

3M™ Heat Shrink Thin-Wall Tubing FP-301-1-48"-White-24 Pcs, 48 in Length sticks, 24 pieces/case - 7100089249

Sold As: 600-Pack
SKU: 7100089249
MPN: 7100089249
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051128598436
3M ID: 80611601040
5 Digit UPC: 59843
$3,236.35 ($5.39 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Tubing FP-301 is a general purpose, thin wall tubing that provides a balance of electrical, physical and chemical properties, making it ideal for industrial and military applications. This tubing has a 2:1 shrink ratio and provides flame retardant insulation for 600V rated applications. It has a flexible polyolefin construction that offers moisture seal protection.

Features

  • A VARIETY OF APPLICATIONS: Offers a 2:1 shrink-fit ratio and serves as protection in wire-harnessing, split-resistance covering, wire marking, wire bundling, and component packaging
  • FLAME-RETARDANT TUBING: For applications up to 600V (clear is not flame retardant)

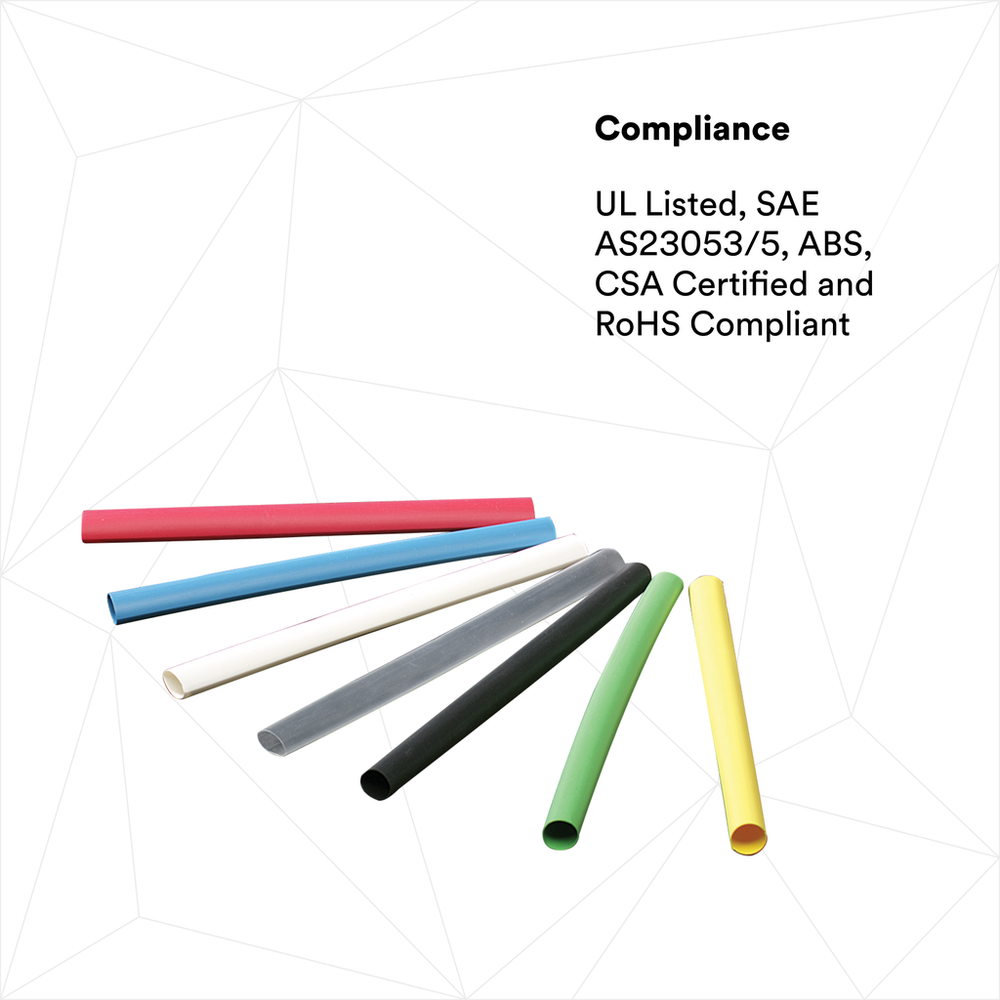

  • KEY SPECIFICATIONS: UL Listed, File E-39100, SAE AS23053/5, Class 1 (all colors), Class 2 (clear), CSA Certified, and RoHS 2011/65/EU Compliant
  • FOR DEMANDING CONDITIONS: Performs at an operating temperature up to 275 °F (135 °C)
  • HIGH-STRENGTH PROTECTION: Balances electrical, physical, and chemical properties for various industrial and military applications
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Inner Diameter Before Shrink (Imperial)1.0
Inner Diameter After Shrink (Imperial) UOMin
UL Bug Temperature (Celsius)125 Degrees Celsius
Inner Diameter Before Shrink (Metric)25.4
ApplicationElectrical Insulation; High-tenacity and chemically resistant tubing
MaterialPolyolefin
Operating Temperature (Fahrenheit)-67 °F to 275 °F
UL Bug Temperature (Fahrenheit)257 Degrees Fahrenheit
Mil SpecAMS-DTL-23053/5, Class 1
Overall Width (Imperial)1.0
Overall Width (Imperial) UOMin
Inner Diameter After Shrink (Imperial)0.5
Inner Diameter After Shrink (Metric)12.7
Maximum Operating Temperature (Celsius) UomDegree
Minimum Expanded Tubing I. D.1.0
Overall Length (Metric)1220.0
Maximum Operating Temperature (Fahrenheit)275.0
Non-CorrosiveYes
Operating Temperature Range (Celsius)-55 °C to +135 °C
Inner Diameter Before Shrink (Metric) UOMmm
Product FormStick
Overall Length (Imperial)48.0
Operating Temperature Range (Fahrenheit)-67 °F to 275 °F
Tubing TypeSingle Wall (Thin)
UL Bug Voltage600 Volt
Inner Diameter Before Shrink (Imperial) UOMin
Inner Diameter After Shrink (Metric) UOMmm
Minimum Shrink Temperature (Celsius)100.0
Operating Temperature (Celsius)-55 to 135 Degrees Celsius
Shrink Ratio2:1
Elongation UOMdB
Flame RetardantYes
Product ColorWhite
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Maximum Operating Temperature (Celsius)135.0
Overall Length (Metric) UOMmm
Overall Width (Metric) UOMmm
Adhesive MaterialNone
Minimum Expanded Tubing I. D. UOMin
Maximum Operating Temperature (Fahrenheit) UOMDegree
Heat Shrink TypeSingle-Wall Polyolefin Heat Shrink Tubing
Overall Length (Imperial) UOMin
UL ApprovalYes
