3M Products & Supplies

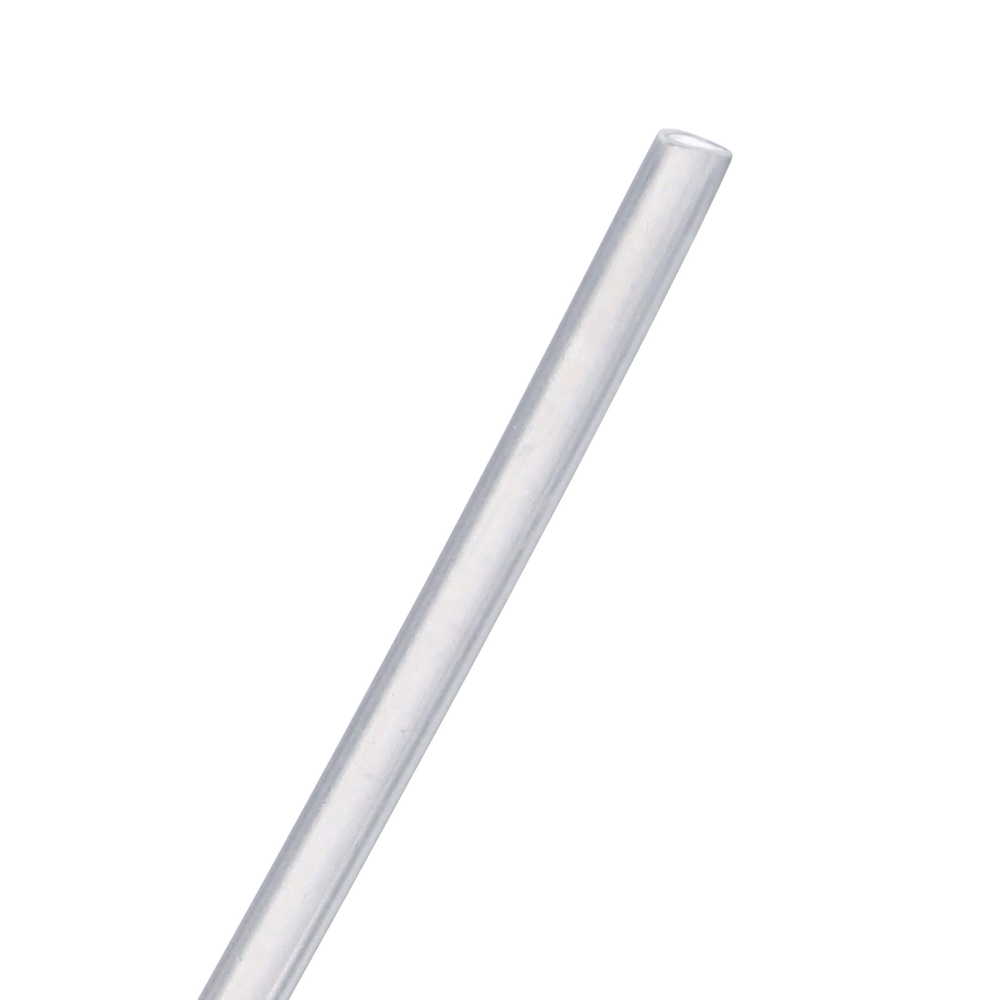

3M™ Heat Shrink Thin-Wall Tubing FP-301-1/16-CR-1000', 1000 ft Length per spool, 3 spools/case - 7100025158

Sold As: 3000-Pack
SKU: 7100025158
MPN: 7100025158
Stock Item: Stock items typically ship within 2-3 business days
UPC: 10054007085246
3M ID: 80610219927
5 Digit UPC: 8524
$1,331.52 ($0.44 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Tubing FP-301 is a general purpose, thin wall tubing that provides a balance of electrical, physical and chemical properties, making it ideal for industrial and military applications. This tubing has a 2:1 shrink ratio and provides flame retardant insulation for 600V rated applications. It has a flexible polyolefin construction that offers moisture seal protection.

Features

  • FLAME-RETARDANT TUBING: For applications up to 600V (clear is not flame retardant)
  • FOR DEMANDING CONDITIONS: Performs at an operating temperature up to 275 °F (135 °C)
  • HIGH-STRENGTH PROTECTION: Balances electrical, physical, and chemical properties for various industrial and military applications
  • KEY SPECIFICATIONS: UL Listed, File E-39100, SAE AS23053/5, Class 1 (all colors), Class 2 (clear), CSA Certified, and RoHS 2011/65/EU Compliant
  • A VARIETY OF APPLICATIONS: Offers a 2:1 shrink-fit ratio and serves as protection in wire-harnessing, split-resistance covering, wire marking, wire bundling, and component packaging
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Inner Diameter Before Shrink (Imperial)0.063
MaterialFlexible Polyolefin
UL ApprovalYes

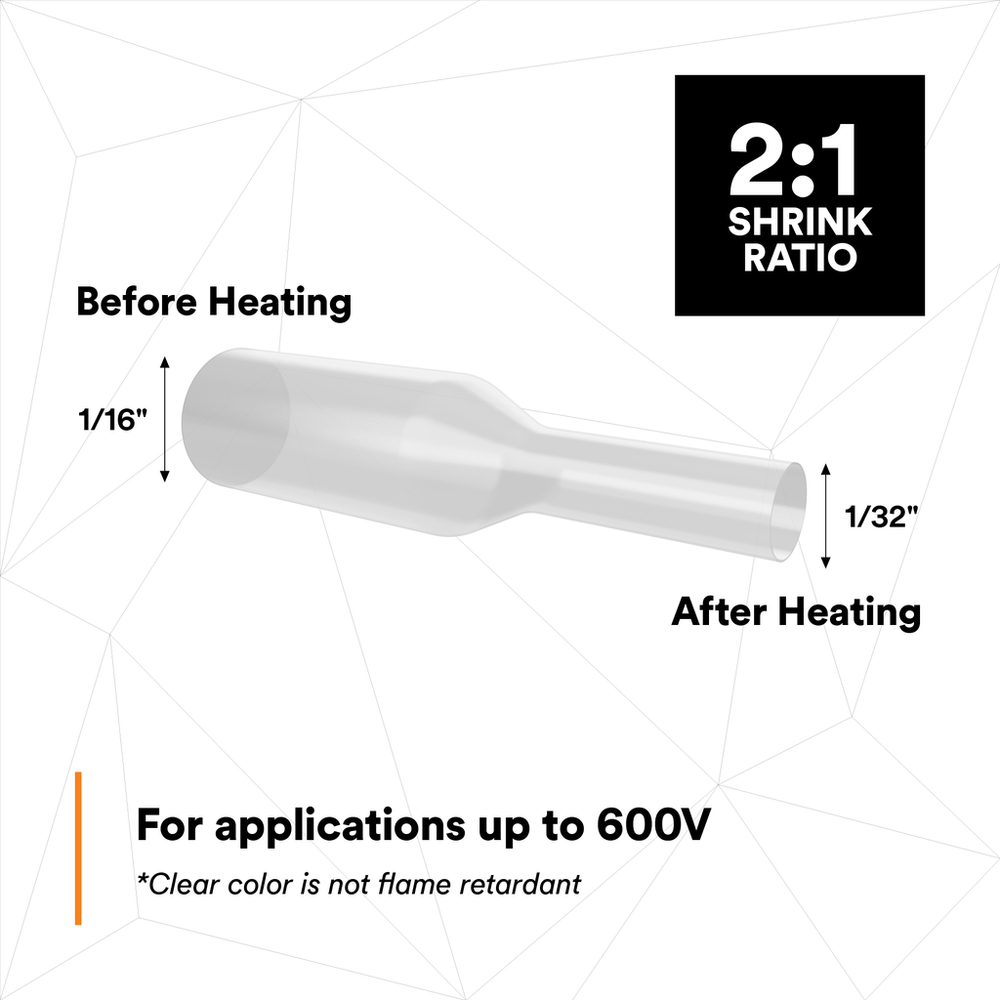

Shrink Ratio2:1
Maximum Operating Temperature (Celsius)135.0
Minimum Shrink Temperature (Celsius)100.0
Inner Diameter After Shrink (Imperial) UOMin
Heat Shrink TypeSingle-Wall Polyolefin Heat Shrink Tubing
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
ApplicationElectrical Insulation; High-tenacity and chemically resistant tubing
Elongation UOM%
UL File NumberE-39100
Operating Temperature Range (Celsius)-55 °C to +135 °C
Non-CorrosiveYes
Tubing TypeSingle Wall (Thin)
Units per Case3.0
Minimum Expanded Tubing I. D. UOMin
Mil SpecAMS-DTL-23053/5, Class 2
Operating Temperature (Celsius)-55 to 135 Degrees Celsius
Overall Length (Imperial)1000.0
Inner Diameter After Shrink (Metric) UOMmm
Adhesive MaterialNone
Inner Diameter Before Shrink (Metric)1.6
Operating Temperature Range (Fahrenheit)-67 °F to 275 °F
Maximum Operating Temperature (Fahrenheit) UOMDegree
Inner Diameter After Shrink (Metric)0.79
Inner Diameter Before Shrink (Imperial) UOMin
Minimum Expanded Tubing I. D.1.0
Overall Length (Imperial) UOMft
Inner Diameter After Shrink (Imperial)0.031
Maximum Operating Temperature (Fahrenheit)275.0
Flame RetardantNo
Inner Diameter Before Shrink (Metric) UOMmm
Product ColorTransparent
Maximum Operating Temperature (Celsius) UomDegree
