3M Products & Supplies

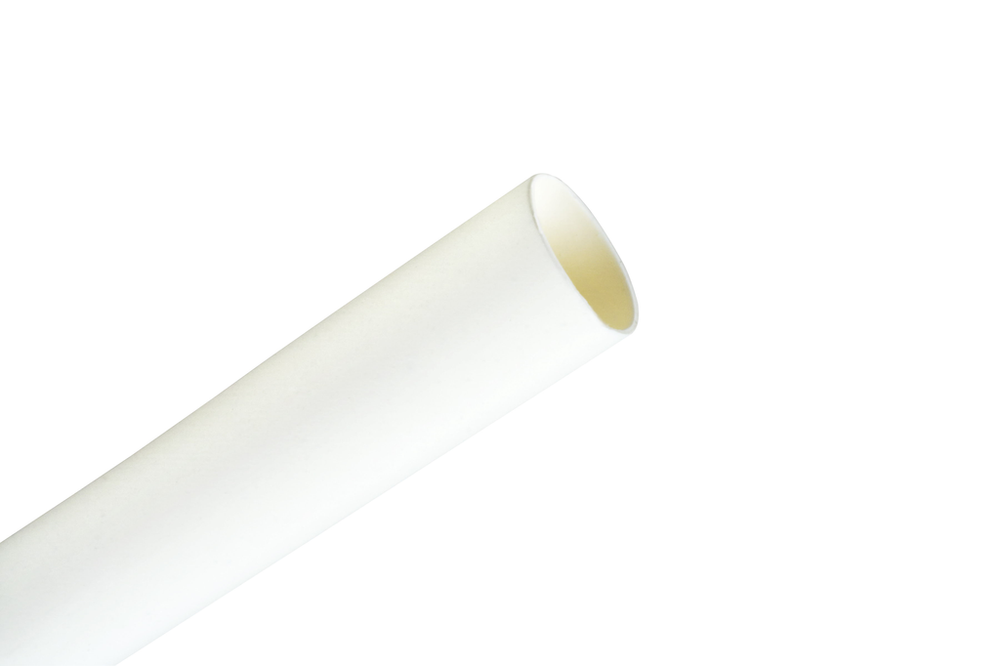

3M™ Heat Shrink Thin-Wall Tubing FP-301-1/16-White-1000`: 1000 ft spool length, 3000 ft/case - 7010349729

Sold As: 3000-Pack
SKU: 7010349729
MPN: 7010349729
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007084648
3M ID: 80610219323
5 Digit UPC: 8464
$1,424.42 ($0.47 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Tubing FP-301 is a general purpose, thin wall tubing that provides a balance of electrical, physical and chemical properties, making it ideal for industrial and military applications. This tubing has a 2:1 shrink ratio and provides flame retardant insulation for 600V rated applications. It has a flexible polyolefin construction that offers moisture seal protection.

Features

  • A VARIETY OF APPLICATIONS: Offers a 2:1 shrink-fit ratio and serves as protection in wire-harnessing, split-resistance covering, wire marking, wire bundling, and component packaging
  • FOR DEMANDING CONDITIONS: Performs at an operating temperature up to 275 °F (135 °C)
  • FLAME-RETARDANT TUBING: For applications up to 600V (clear is not flame retardant)
  • KEY SPECIFICATIONS: UL Listed, File E-39100, SAE AS23053/5, Class 1 (all colors), Class 2 (clear), CSA Certified, and RoHS 2011/65/EU Compliant
  • HIGH-STRENGTH PROTECTION: Balances electrical, physical, and chemical properties for various industrial and military applications
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Inner Diameter After Shrink (Metric) UOMmm
Inner Diameter After Shrink (Imperial) UOMin
UL File NumberE-39100
Tubing TypeSingle (Thin) Wall
Inner Diameter After Shrink (Metric)0.79
Mil SpecAMS-DTL-23053/5, Class 1
Inner Diameter Before Shrink (Metric)1.6
Heat Shrink TypeSingle-Wall Polyolefin Heat Shrink Tubing
Shrink Ratio2:1
Maximum Operating Temperature (Celsius) UomDegree
Elongation UOM%
Flame RetardantYes
Inner Diameter After Shrink (Imperial)0.031
Product ColorWhite
Maximum Operating Temperature (Celsius)135.0
Adhesive MaterialNone
Operating Temperature (Celsius)-55 to 135 Degrees Celsius
Minimum Expanded Tubing I. D.1.0
Minimum Expanded Tubing I. D. UOMin
Inner Diameter Before Shrink (Metric) UOMmm
Overall Length (Imperial)1000.0
ApplicationElectrical Insulation; High-tenacity and chemically resistant tubing
Overall Length (Imperial) UOMft
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Non-CorrosiveYes
Inner Diameter Before Shrink (Imperial) UOMin
Maximum Operating Temperature (Fahrenheit)275.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
Inner Diameter Before Shrink (Imperial)0.063
