3M Products & Supplies

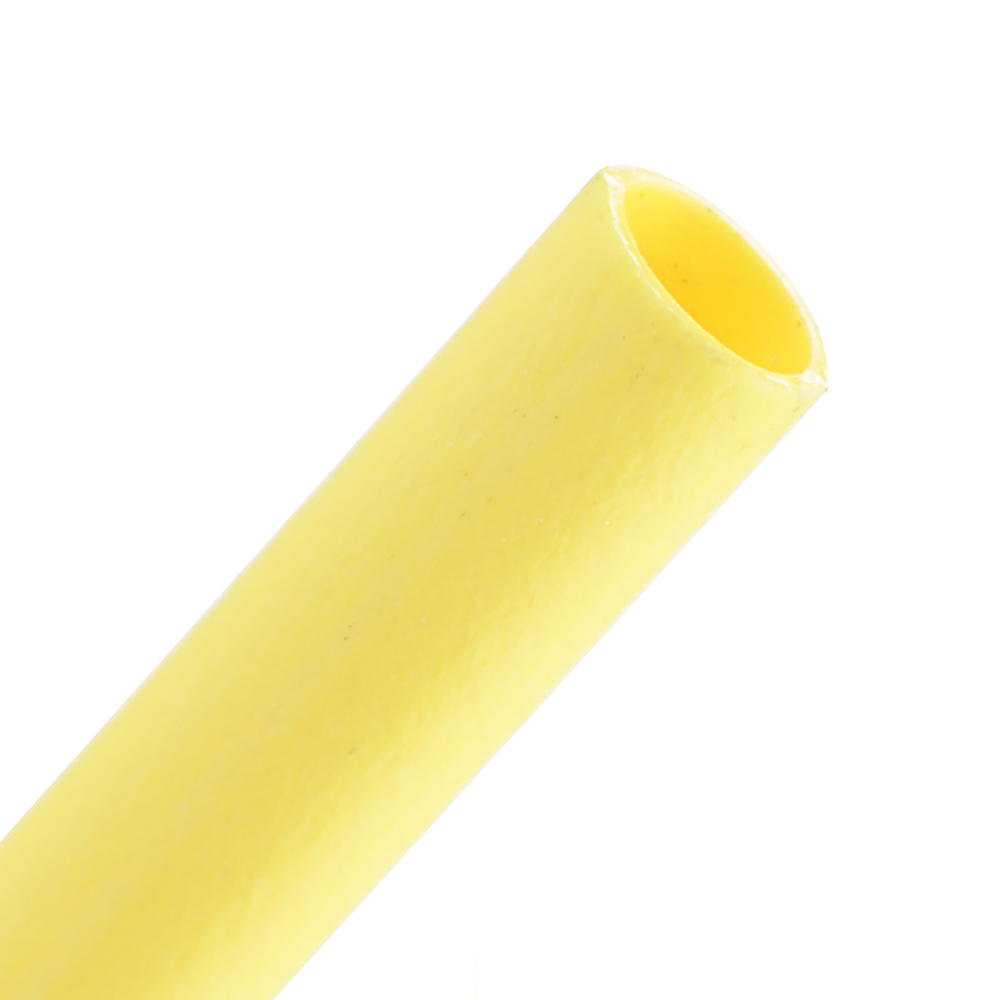

3M™ Heat Shrink Thin-Wall Tubing FP-301-3/64-Yellow-1000`: 1000 ft spool length, 3000 ft/case - 7010396246

Sold As: 3000-Pack
SKU: 7010396246
MPN: 7010396246
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007087274
3M ID: 80610227862
5 Digit UPC: 8727
$1,225.89 ($0.41 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Tubing FP-301 is a general purpose, thin wall tubing that provides a balance of electrical, physical and chemical properties, making it ideal for industrial and military applications. This tubing has a 2:1 shrink ratio and provides flame retardant insulation for 600V rated applications. It has a flexible polyolefin construction that offers moisture seal protection.

Features

  • FLAME-RETARDANT TUBING: For applications up to 600V (clear is not flame retardant)
  • HIGH-STRENGTH PROTECTION: Balances electrical, physical, and chemical properties for various industrial and military applications
  • FOR DEMANDING CONDITIONS: Performs at an operating temperature up to 275 °F (135 °C)
  • A VARIETY OF APPLICATIONS: Offers a 2:1 shrink-fit ratio and serves as protection in wire-harnessing, split-resistance covering, wire marking, wire bundling, and component packaging
  • KEY SPECIFICATIONS: UL Listed, File E-39100, SAE AS23053/5, Class 1 (all colors), Class 2 (clear), CSA Certified, and RoHS 2011/65/EU Compliant
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Product ColorYellow
Minimum Expanded Tubing I. D.3.0
Adhesive MaterialNone
Inner Diameter After Shrink (Metric)0.58
Elongation UOM%
Inner Diameter After Shrink (Imperial) UOMin
Maximum Operating Temperature (Fahrenheit)275.0
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Shrink Ratio2:1
UL File NumberE-39100
Flame RetardantYes
Heat Shrink TypeSingle-Wall Polyolefin Heat Shrink Tubing
Tubing TypeSingle (Thin) Wall
Inner Diameter After Shrink (Imperial)0.023
Non-CorrosiveYes
Maximum Operating Temperature (Celsius) UomDegree
Operating Temperature (Celsius)-55 to 135 Degrees Celsius
Inner Diameter Before Shrink (Imperial) UOMin
Inner Diameter Before Shrink (Metric) UOMmm
Inner Diameter Before Shrink (Metric)1.17
Maximum Operating Temperature (Celsius)135.0
Overall Length (Imperial)1000.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
Inner Diameter After Shrink (Metric) UOMmm
ApplicationElectrical Insulation; High-tenacity and chemically resistant tubing
Overall Length (Imperial) UOMft
Minimum Expanded Tubing I. D. UOMin
Inner Diameter Before Shrink (Imperial)0.046
Mil SpecAMS-DTL-23053/5, Class 1
