3M Products & Supplies

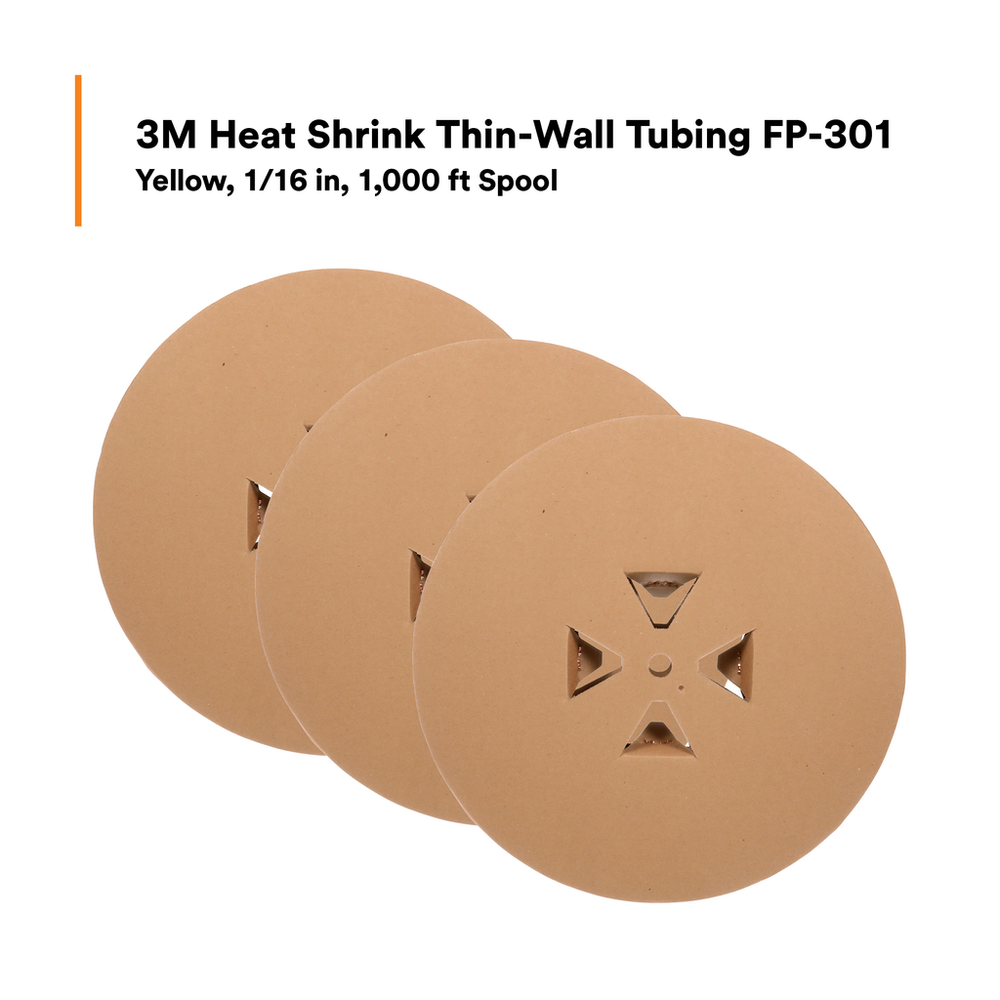

3M™ Heat Shrink Thin-Wall Tubing FP-301-1/16-Yellow-1000`: 1000 ft spool length, 3000 ft/case - 7010396207

Sold As: 3000-Pack
SKU: 7010396207
MPN: 7010396207
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007084655
3M ID: 80610219331
5 Digit UPC: 8465
$1,380.48 ($0.46 / Count)
Hurry up! Current stock:

Product Description

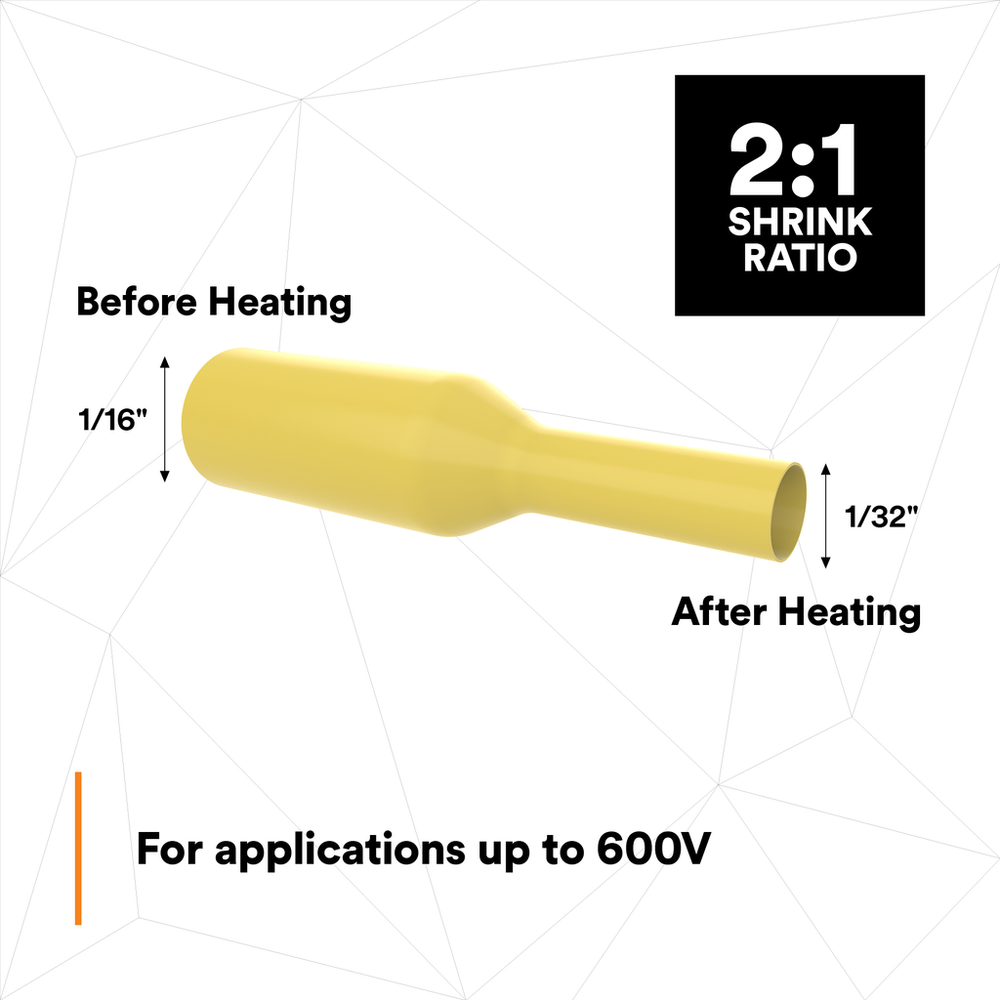

3M™ Heat Shrink Tubing FP-301 is a general purpose, thin wall tubing that provides a balance of electrical, physical and chemical properties, making it ideal for industrial and military applications. This tubing has a 2:1 shrink ratio and provides flame retardant insulation for 600V rated applications. It has a flexible polyolefin construction that offers moisture seal protection.

Features

  • KEY SPECIFICATIONS: UL Listed, File E-39100, SAE AS23053/5, Class 1 (all colors), Class 2 (clear), CSA Certified, and RoHS 2011/65/EU Compliant
  • FLAME-RETARDANT TUBING: For applications up to 600V (clear is not flame retardant)
  • HIGH-STRENGTH PROTECTION: Balances electrical, physical, and chemical properties for various industrial and military applications
  • A VARIETY OF APPLICATIONS: Offers a 2:1 shrink-fit ratio and serves as protection in wire-harnessing, split-resistance covering, wire marking, wire bundling, and component packaging
  • FOR DEMANDING CONDITIONS: Performs at an operating temperature up to 275 °F (135 °C)
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Maximum Operating Temperature (Celsius) UomDegree
Adhesive MaterialNone
Maximum Operating Temperature (Fahrenheit)275.0
Minimum Expanded Tubing I. D. UOMin
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Inner Diameter Before Shrink (Metric)1.6
Mil SpecAMS-DTL-23053/5, Class 1
Overall Length (Imperial)1000.0
UL File NumberE-39100
Flame RetardantYes
Maximum Operating Temperature (Fahrenheit) UOMDegree
Product ColorYellow
Inner Diameter After Shrink (Metric)0.79
Inner Diameter Before Shrink (Imperial)0.063
Shrink Ratio2:1
ApplicationElectrical Insulation; High-tenacity and chemically resistant tubing
Elongation UOM%
Inner Diameter Before Shrink (Imperial) UOMin
Maximum Operating Temperature (Celsius)135.0
Heat Shrink TypeSingle-Wall Polyolefin Heat Shrink Tubing
Inner Diameter After Shrink (Imperial)0.031
Overall Length (Imperial) UOMft
Non-CorrosiveYes
Tubing TypeSingle (Thin) Wall
Inner Diameter Before Shrink (Metric) UOMmm
Minimum Expanded Tubing I. D.1.0
Inner Diameter After Shrink (Imperial) UOMin
Inner Diameter After Shrink (Metric) UOMmm
Operating Temperature (Celsius)-55 to 135 Degrees Celsius
