3M Products & Supplies

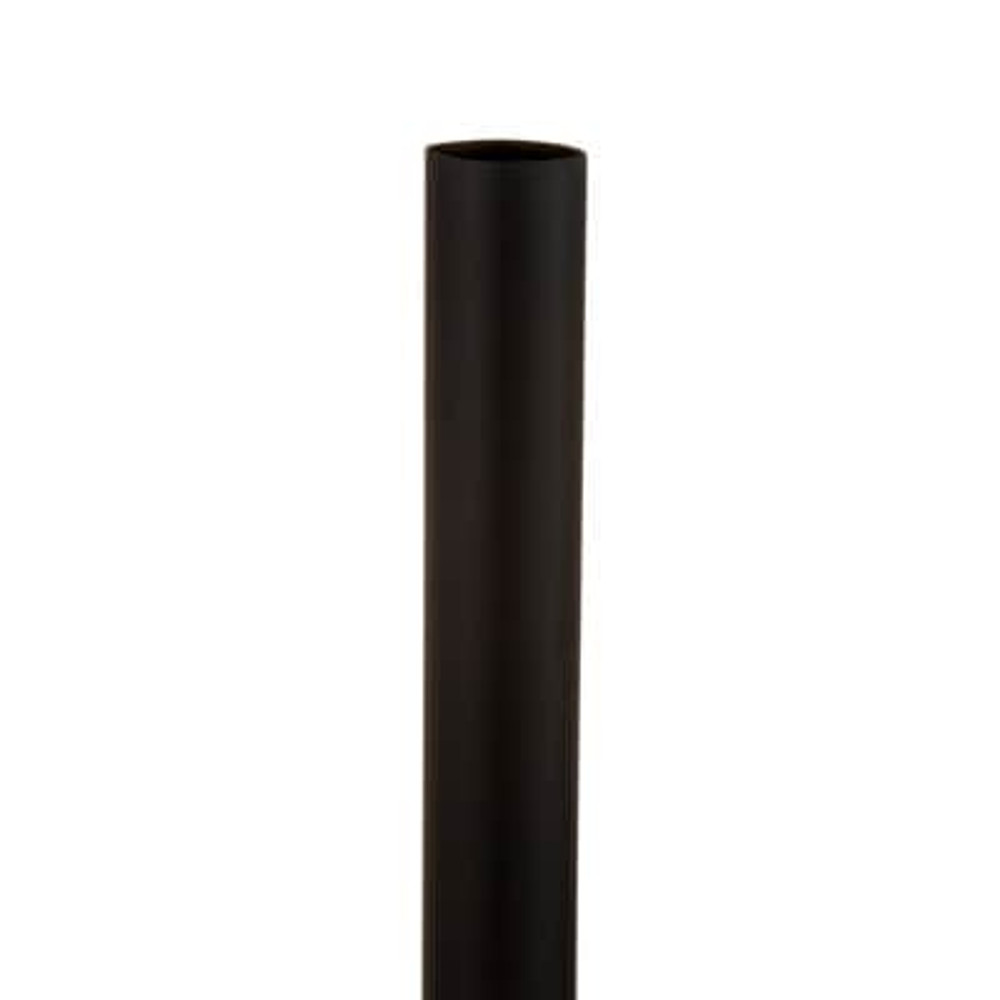

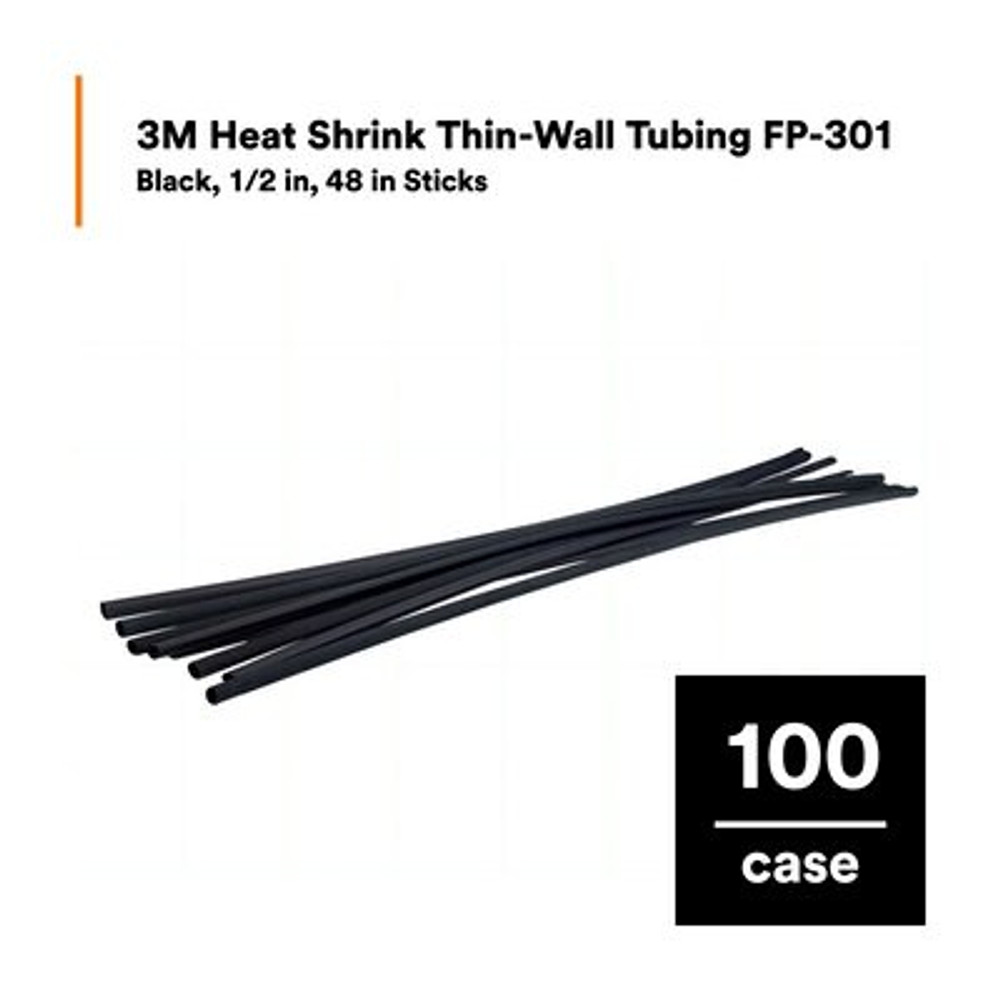

3M™ Heat Shrink Thin-Wall Tubing FP-301-1/2-48"-Black-100 Pcs, 48 in Length sticks, 100 pieces/case - 7100083084

Sold As: 100-Pack
SKU: 7100083084
MPN: 7100083084
For an accurate lead time please contact us
UPC: 00051128598597
3M ID: 80611601206
5 Digit UPC: 59859
$280.32 ($2.80 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Tubing FP-301 is a general purpose, thin wall tubing that provides a balance of electrical, physical and chemical properties, making it ideal for industrial and military applications. This tubing has a 2:1 shrink ratio and provides flame retardant insulation for 600V rated applications. It has a flexible polyolefin construction that offers moisture seal protection.

Features

  • HIGH-STRENGTH PROTECTION: Balances electrical, physical, and chemical properties for various industrial and military applications
  • KEY SPECIFICATIONS: UL Listed, File E-39100, SAE AS23053/5, Class 1 (all colors), Class 2 (clear), CSA Certified, and RoHS 2011/65/EU Compliant
  • A VARIETY OF APPLICATIONS: Offers a 2:1 shrink-fit ratio and serves as protection in wire-harnessing, split-resistance covering, wire marking, wire bundling, and component packaging
  • FOR DEMANDING CONDITIONS: Performs at an operating temperature up to 275 °F (135 °C)
  • FLAME-RETARDANT TUBING: For applications up to 600V (clear is not flame retardant)
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Maximum Operating Temperature (Celsius) UomDegree
Overall Width (Imperial) UOMin
Inner Diameter After Shrink (Metric) UOMmm
Inner Diameter After Shrink (Imperial) UOMin
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Overall Width (Imperial)0.5
Minimum Shrink Temperature (Celsius)100.0
Adhesive MaterialNone
Minimum Expanded Tubing I. D. UOMin
Tubing TypeSingle Wall (Thin)
UL Bug Temperature (Celsius)125 Degrees Celsius
UL ApprovalYes
Elongation UOM%
Overall Width (Metric) UOMmm
Units per Case100.0
Operating Temperature (Fahrenheit)-67 °F to 275 °F
Inner Diameter Before Shrink (Metric)12.7
Operating Temperature Range (Celsius)-55 °C to +135 °C
Minimum Expanded Tubing I. D.1.0
UL Bug Temperature (Fahrenheit)257 Degrees Fahrenheit
Shrink Ratio2:1
UL Bug Voltage600 Volt
ApplicationElectrical Insulation; High-tenacity and chemically resistant tubing
Maximum Operating Temperature (Fahrenheit)275.0
Inner Diameter Before Shrink (Metric) UOMmm
Operating Temperature (Celsius)-55 to 135 Degrees Celsius
Overall Width (Metric)12.7
Overall Length (Imperial)48.0
Operating Temperature Range (Fahrenheit)-67 °F to 275 °F
Maximum Operating Temperature (Celsius)135.0
Overall Length (Imperial) UOMin
Inner Diameter Before Shrink (Imperial) UOMin
Mil SpecAMS-DTL-23053/5, Class 1
Overall Length (Metric)1220.0
Inner Diameter After Shrink (Imperial)0.25
Flame RetardantYes
Inner Diameter After Shrink (Metric)6.35
Overall Length (Metric) UOMmm
Non-CorrosiveYes
Maximum Operating Temperature (Fahrenheit) UOMDegree
Heat Shrink TypeSingle-Wall Polyolefin Heat Shrink Tubing
Inner Diameter Before Shrink (Imperial)0.5
MaterialPolyolefin
