3M Products & Supplies

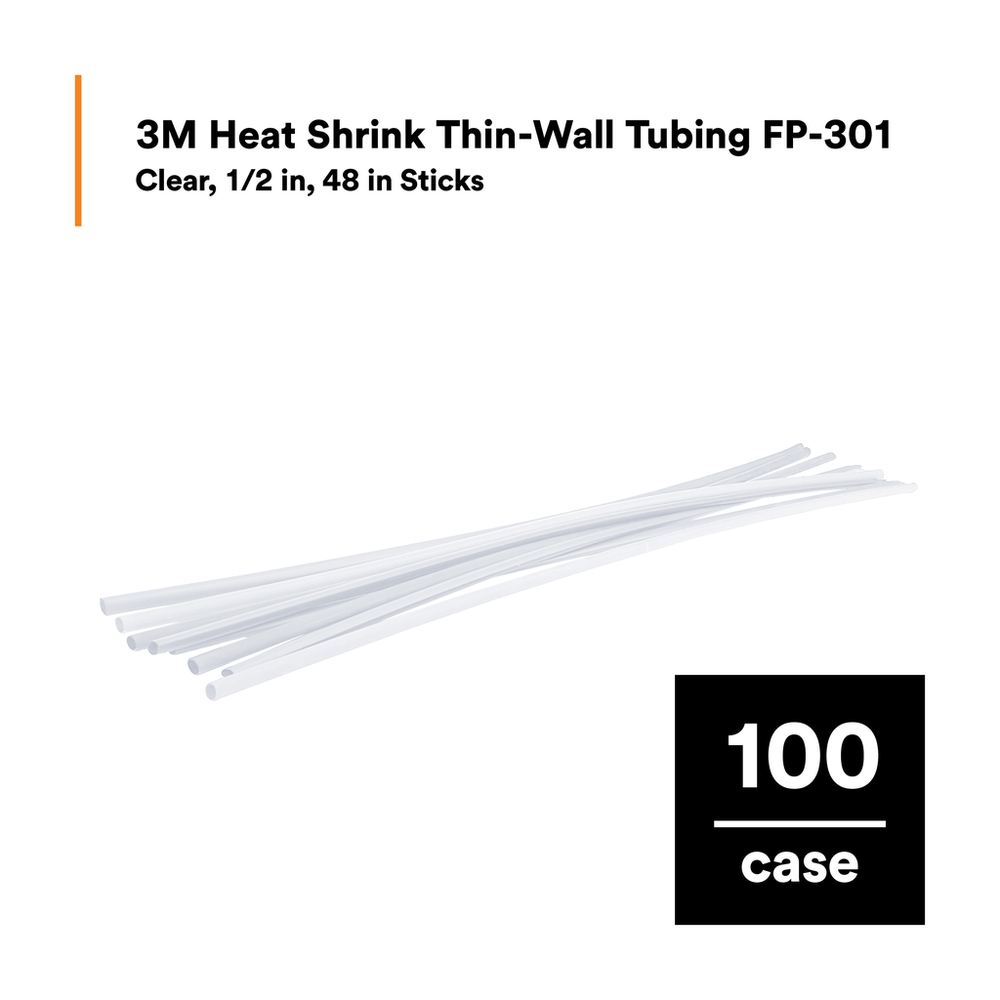

3M™ Heat Shrink Thin-Wall Tubing FP-301-1/2-48"-Clear-100 Pcs, 48 in Length sticks, 100 pieces/case - 7000133609

Sold As: 100-Pack
SKU: 7000133609
MPN: 7000133609
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051128598542
3M ID: 80611601156
5 Digit UPC: 59854
$286.04 ($2.86 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Tubing FP-301 is a general purpose, thin wall tubing that provides a balance of electrical, physical and chemical properties, making it ideal for industrial and military applications. This tubing has a 2:1 shrink ratio and provides flame retardant insulation for 600V rated applications. It has a flexible polyolefin construction that offers moisture seal protection.

Features

  • A VARIETY OF APPLICATIONS: Offers a 2:1 shrink-fit ratio and serves as protection in wire-harnessing, split-resistance covering, wire marking, wire bundling, and component packaging
  • FOR DEMANDING CONDITIONS: Performs at an operating temperature up to 275 °F (135 °C)
  • FLAME-RETARDANT TUBING: For applications up to 600V (clear is not flame retardant)
  • HIGH-STRENGTH PROTECTION: Balances electrical, physical, and chemical properties for various industrial and military applications
  • KEY SPECIFICATIONS: UL Listed, File E-39100, SAE AS23053/5, Class 1 (all colors), Class 2 (clear), CSA Certified, and RoHS 2011/65/EU Compliant
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Inner Diameter Before Shrink (Metric) UOMmm
UL Bug Temperature (Celsius)125 Degrees Celsius
Operating Temperature Range (Celsius)-55 °C to +135 °C
Overall Length (Metric) UOMmm
UL Bug Temperature (Fahrenheit)257 Degrees Fahrenheit
MaterialPolyolefin
Inner Diameter Before Shrink (Imperial) UOMin
Units per Case100.0
Inner Diameter After Shrink (Imperial)0.25
Maximum Operating Temperature (Celsius)135.0
Overall Width (Metric) UOMmm
Adhesive MaterialNone
Minimum Shrink Temperature (Celsius)100.0
Product ColorTransparent
ApplicationElectrical Insulation; High-tenacity and chemically resistant tubing
Overall Width (Imperial)0.5
Flame RetardantNo
UL ApprovalYes
Overall Length (Imperial) UOMin
Overall Width (Metric)12.7
Operating Temperature (Fahrenheit)-67 °F to 275 °F
Inner Diameter After Shrink (Metric) UOMmm
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Maximum Operating Temperature (Fahrenheit)275.0
Overall Length (Imperial)48.0
Inner Diameter Before Shrink (Imperial)0.5
Operating Temperature (Celsius)-55 to 135 Degrees Celsius
Operating Temperature Range (Fahrenheit)-67 °F to 275 °F
Inner Diameter After Shrink (Metric)6.35
Shrink Ratio2:1
Heat Shrink TypeSingle-Wall Polyolefin Heat Shrink Tubing
Overall Length (Metric)1220.0
Maximum Operating Temperature (Celsius) UomDegree
Elongation UOM%
Minimum Expanded Tubing I. D. UOMin
UL Bug Voltage600 Volt
Mil SpecAMS-DTL-23053/5, Class 1
Inner Diameter After Shrink (Imperial) UOMin
Tubing TypeSingle Wall (Thin)
Maximum Operating Temperature (Fahrenheit) UOMDegree
Minimum Expanded Tubing I. D.1.0
Non-CorrosiveYes
Overall Width (Imperial) UOMin
Inner Diameter Before Shrink (Metric)12.7
