3M Products & Supplies

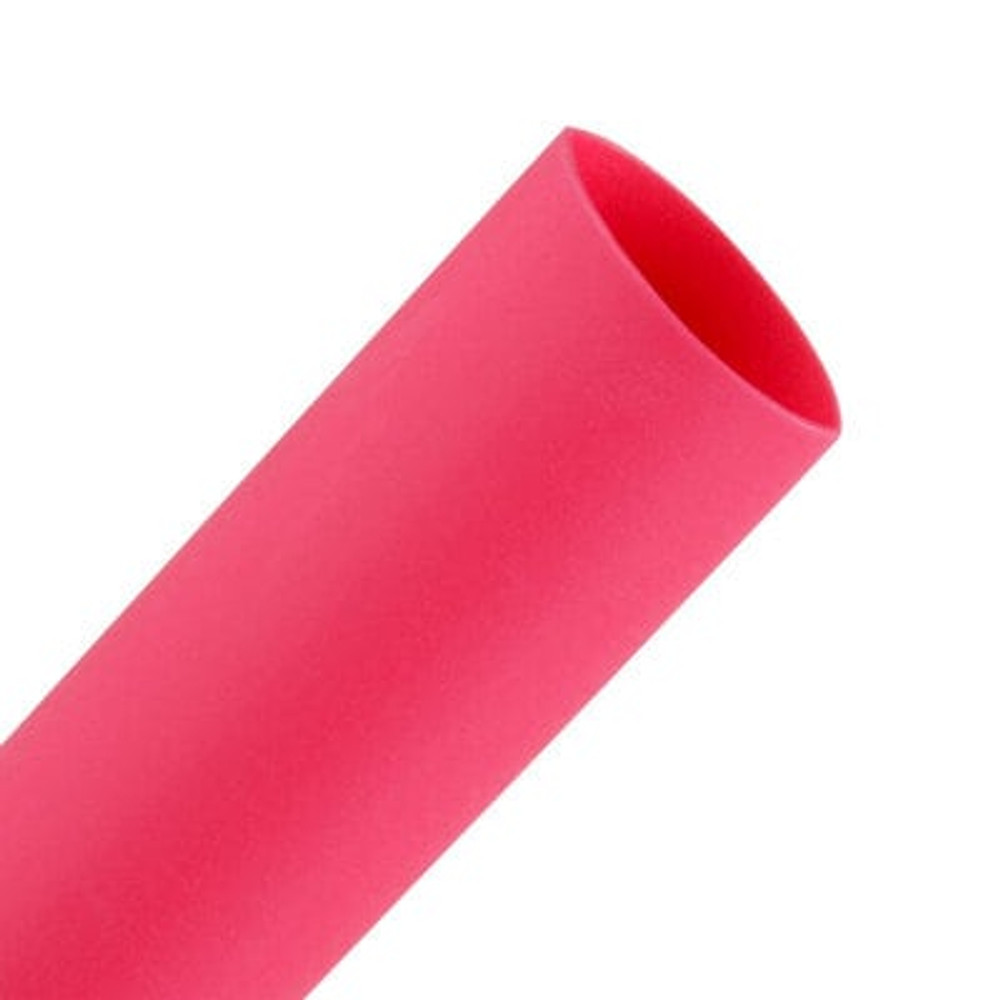

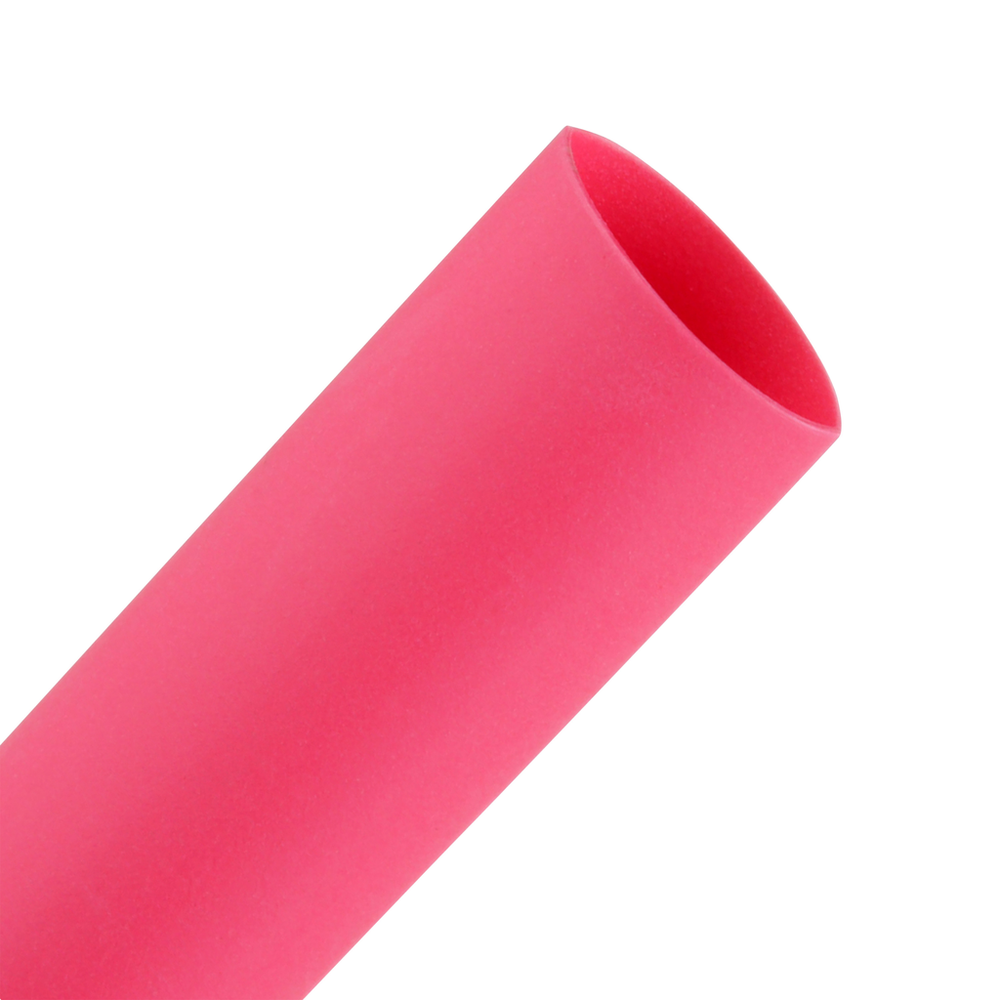

3M™ Heat Shrink Thin-Wall Tubing FP-301-1/2-48"-Red-100 Pcs, 48 in Length sticks, 100 pieces/case - 7010400825

Sold As: 800-Pack
SKU: 7010400825
MPN: 7010400825
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051128598610
3M ID: 80611601222
5 Digit UPC: 59861
$2,438.72 ($3.05 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Tubing FP-301 is a general purpose, thin wall tubing that provides a balance of electrical, physical and chemical properties, making it ideal for industrial and military applications. This tubing has a 2:1 shrink ratio and provides flame retardant insulation for 600V rated applications. It has a flexible polyolefin construction that offers moisture seal protection.

Features

  • FLAME-RETARDANT TUBING: For applications up to 600V (clear is not flame retardant)
  • FOR DEMANDING CONDITIONS: Performs at an operating temperature up to 275 °F (135 °C)
  • HIGH-STRENGTH PROTECTION: Balances electrical, physical, and chemical properties for various industrial and military applications
  • A VARIETY OF APPLICATIONS: Offers a 2:1 shrink-fit ratio and serves as protection in wire-harnessing, split-resistance covering, wire marking, wire bundling, and component packaging
  • KEY SPECIFICATIONS: UL Listed, File E-39100, SAE AS23053/5, Class 1 (all colors), Class 2 (clear), CSA Certified, and RoHS 2011/65/EU Compliant
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Maximum Operating Temperature (Fahrenheit)275.0
Inner Diameter After Shrink (Imperial)0.25
Elongation UOM%
Minimum Expanded Tubing I. D.1.0
Overall Length (Metric) UOMmm
UL Bug Voltage600 Volt
Maximum Operating Temperature (Celsius) UomDegree
UL Bug Temperature (Celsius)125 Degrees Celsius
ApplicationElectrical Insulation; High-tenacity and chemically resistant tubing
Inner Diameter After Shrink (Imperial) UOMin
UL Bug Temperature (Fahrenheit)257 Degrees Fahrenheit
Overall Width (Metric) UOMmm
Mil SpecAMS-DTL-23053/5, Class 1
Overall Length (Metric)1220.0
Tubing TypeSingle (Thin) Wall
Maximum Operating Temperature (Fahrenheit) UOMDegree
Flame RetardantYes
Inner Diameter After Shrink (Metric) UOMmm
Operating Temperature (Celsius)-55 to 135 Degrees Celsius
Inner Diameter Before Shrink (Imperial)0.5
MaterialPolyolefin
Overall Length (Imperial) UOMin
Overall Width (Imperial)0.5
Minimum Expanded Tubing I. D. UOMin
Inner Diameter Before Shrink (Metric) UOMmm
Overall Width (Imperial) UOMin
Non-CorrosiveYes
Operating Temperature (Fahrenheit)-67 °F to 275 °F
Overall Length (Imperial)48.0
Heat Shrink TypeSingle-Wall Polyolefin Heat Shrink Tubing
Overall Width (Metric)12.7
Inner Diameter Before Shrink (Metric)12.7
Shrink Ratio2:1
Maximum Operating Temperature (Celsius)135.0
Inner Diameter Before Shrink (Imperial) UOMin
Adhesive MaterialNone
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Inner Diameter After Shrink (Metric)6.35
Product ColorRed
