3M Products & Supplies

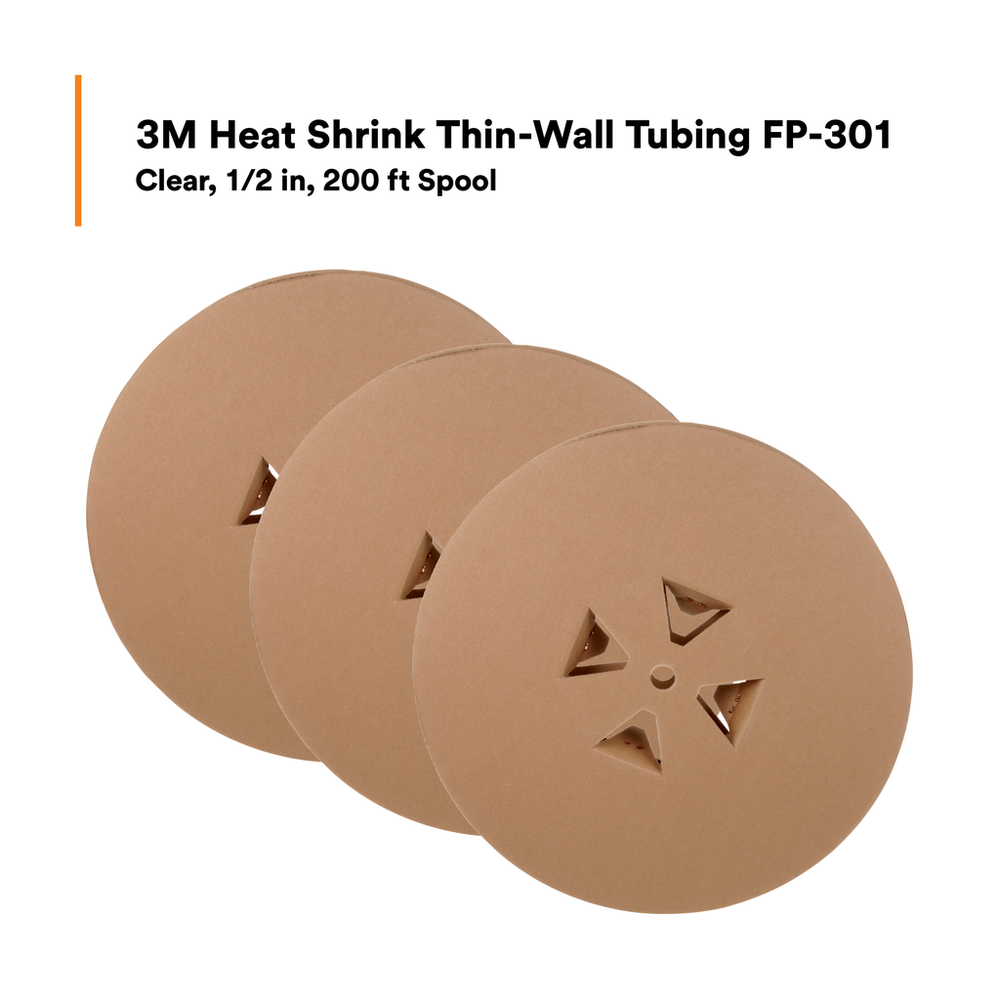

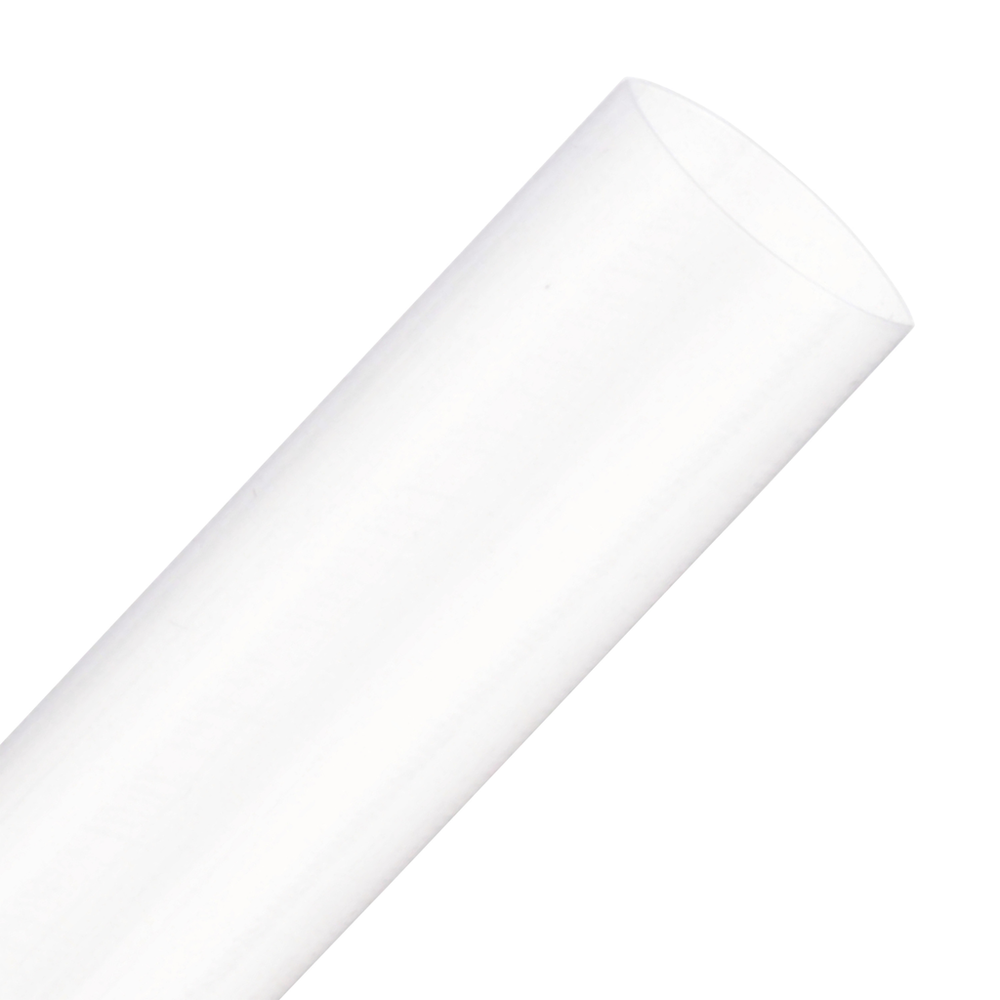

3M™ Heat Shrink Thin-Wall Tubing FP-301-1/2-Clear-200`: 200 ft spool length, 600 linear ft/box, 3 Rolls/Case - 7100024932

Sold As: 600-Pack
SKU: 7100024932
MPN: 7100024932
Stock Item: Stock items typically ship within 2-3 business days
UPC: 10054007085307
3M ID: 80610219984
5 Digit UPC: 8530
$424.13 ($0.71 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Tubing FP-301 is a general purpose, thin wall tubing that provides a balance of electrical, physical and chemical properties, making it ideal for industrial and military applications. This tubing has a 2:1 shrink ratio and provides flame retardant insulation for 600V rated applications. It has a flexible polyolefin construction that offers moisture seal protection.

Features

  • FLAME-RETARDANT TUBING: For applications up to 600V (clear is not flame retardant)
  • KEY SPECIFICATIONS: UL Listed, File E-39100, SAE AS23053/5, Class 1 (all colors), Class 2 (clear), CSA Certified, and RoHS 2011/65/EU Compliant
  • FOR DEMANDING CONDITIONS: Performs at an operating temperature up to 275 °F (135 °C)

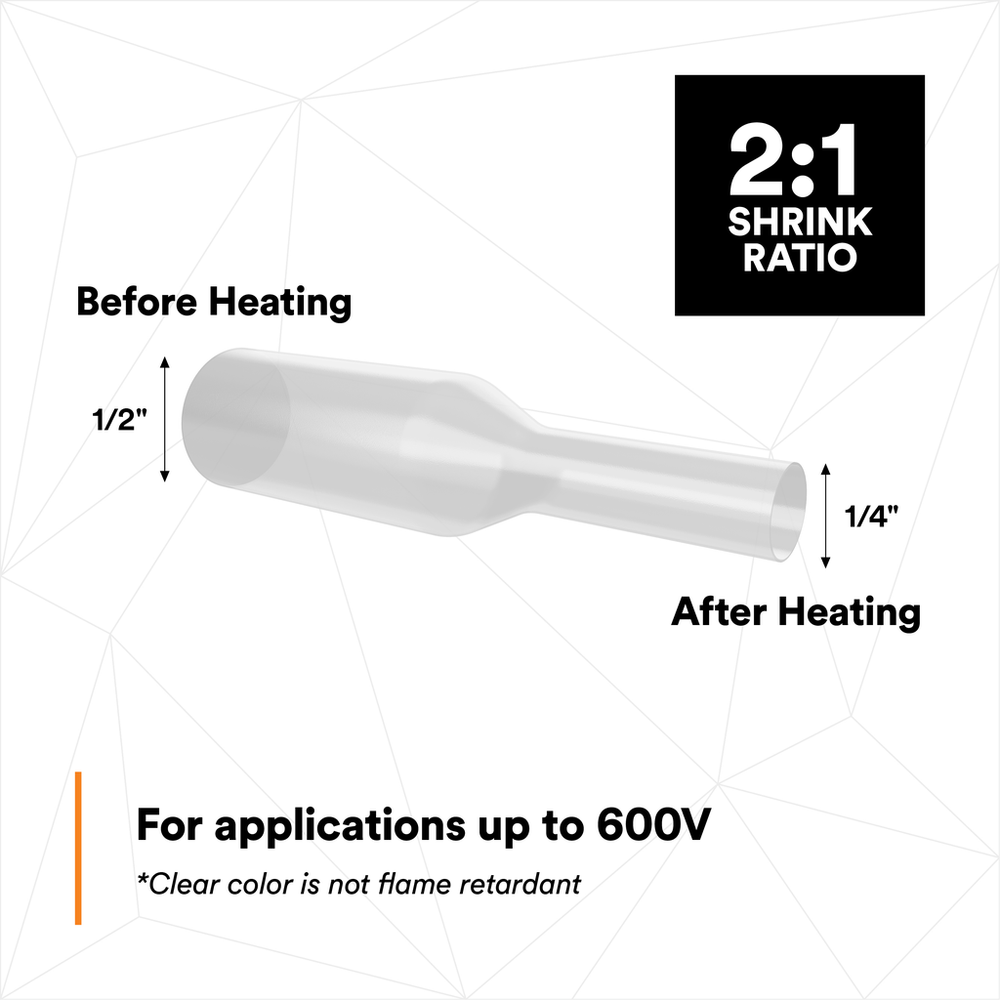

  • A VARIETY OF APPLICATIONS: Offers a 2:1 shrink-fit ratio and serves as protection in wire-harnessing, split-resistance covering, wire marking, wire bundling, and component packaging
  • HIGH-STRENGTH PROTECTION: Balances electrical, physical, and chemical properties for various industrial and military applications
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
UL File NumberE-39100
Maximum Operating Temperature (Celsius)135.0
Tubing TypeSingle Wall (Thin)
Minimum Expanded Tubing I. D. UOMin
Inner Diameter After Shrink (Imperial)0.25
Product FormStick
Inner Diameter After Shrink (Imperial) UOMin
Operating Temperature (Celsius)-55 to 135 Degrees Celsius
Inner Diameter Before Shrink (Metric)12.7
Minimum Expanded Tubing I. D.1.0
Inner Diameter Before Shrink (Metric) UOMmm
Non-CorrosiveYes
Maximum Operating Temperature (Celsius) UomDegree
MaterialFlexible Polyolefin
Mil SpecAMS-DTL-23053/5, Class 2
Heat Shrink TypeSingle-Wall Polyolefin Heat Shrink Tubing
Inner Diameter After Shrink (Metric)6.35
Inner Diameter After Shrink (Metric) UOMmm
Minimum Shrink Temperature (Celsius)100.0
Adhesive MaterialNone
Operating Temperature Range (Celsius)-55 °C to +135 °C
Overall Length (Imperial)200.0
Inner Diameter Before Shrink (Imperial)0.5
Flame RetardantNo
Units per Case3.0
ApplicationElectrical Insulation; High-tenacity and chemically resistant tubing
Elongation UOMDecibel
UL ApprovalYes
Inner Diameter Before Shrink (Imperial) UOMin
Maximum Operating Temperature (Fahrenheit) UOMDegree
Operating Temperature Range (Fahrenheit)-67 °F to 275 °F
Maximum Operating Temperature (Fahrenheit)275.0
Shrink Ratio2:1
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Overall Length (Imperial) UOMft
