3M Products & Supplies

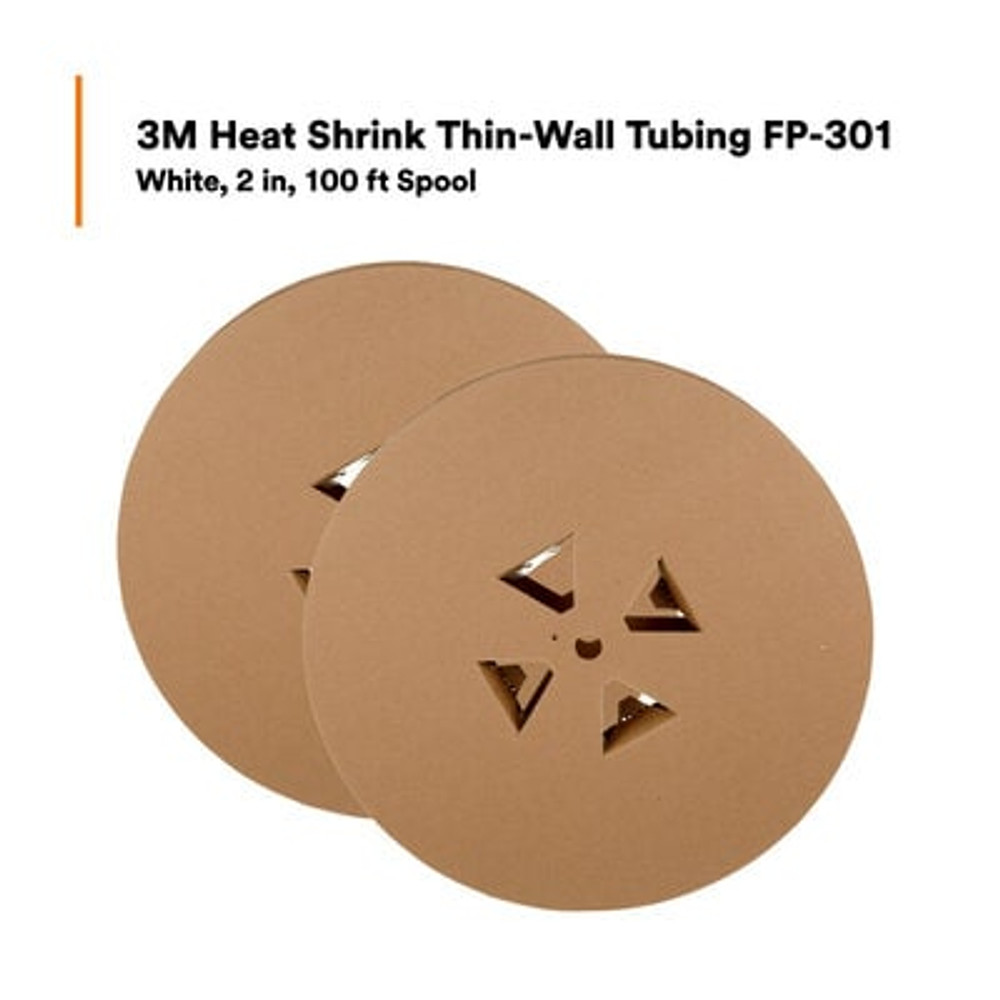

3M™ Heat Shrink Thin-Wall Tubing FP-301-2-White-100`: 100 ft spool length, 200 linear ft/box, 2 Rolls/Case - 7100106792

Sold As: 1200-Pack
SKU: 7100106792
MPN: 7100106792
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 10054007085192
3M ID: 80610219877
5 Digit UPC: 8519
$4,315.13 ($3.60 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Tubing FP-301 is a general purpose, thin wall tubing that provides a balance of electrical, physical and chemical properties, making it ideal for industrial and military applications. This tubing has a 2:1 shrink ratio and provides flame retardant insulation for 600V rated applications. It has a flexible polyolefin construction that offers moisture seal protection.

Features

  • FOR DEMANDING CONDITIONS: Performs at an operating temperature up to 275 °F (135 °C)
  • KEY SPECIFICATIONS: UL Listed, File E-39100, SAE AS23053/5, Class 1 (all colors), Class 2 (clear), CSA Certified, and RoHS 2011/65/EU Compliant
  • HIGH-STRENGTH PROTECTION: Balances electrical, physical, and chemical properties for various industrial and military applications
  • A VARIETY OF APPLICATIONS: Offers a 2:1 shrink-fit ratio and serves as protection in wire-harnessing, split-resistance covering, wire marking, wire bundling, and component packaging
  • FLAME-RETARDANT TUBING: For applications up to 600V (clear is not flame retardant)
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Inner Diameter Before Shrink (Metric) UOMmm
Inner Diameter After Shrink (Metric)25.4
Maximum Operating Temperature (Fahrenheit) UOMDegree
Elongation UOM%
Inner Diameter Before Shrink (Metric)50.8
Inner Diameter Before Shrink (Imperial) UOMin
Flame RetardantYes
Inner Diameter After Shrink (Imperial) UOMin
Overall Length (Imperial)100.0
Adhesive MaterialNone
Maximum Operating Temperature (Fahrenheit)275.0
Non-CorrosiveYes
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Heat Shrink TypeSingle-Wall Polyolefin Heat Shrink Tubing
Overall Length (Imperial) UOMft
Maximum Operating Temperature (Celsius) UomDegree
Minimum Expanded Tubing I. D.2.0
Minimum Expanded Tubing I. D. UOMin
Tubing TypeSingle (Thin) Wall
Inner Diameter Before Shrink (Imperial)2.0

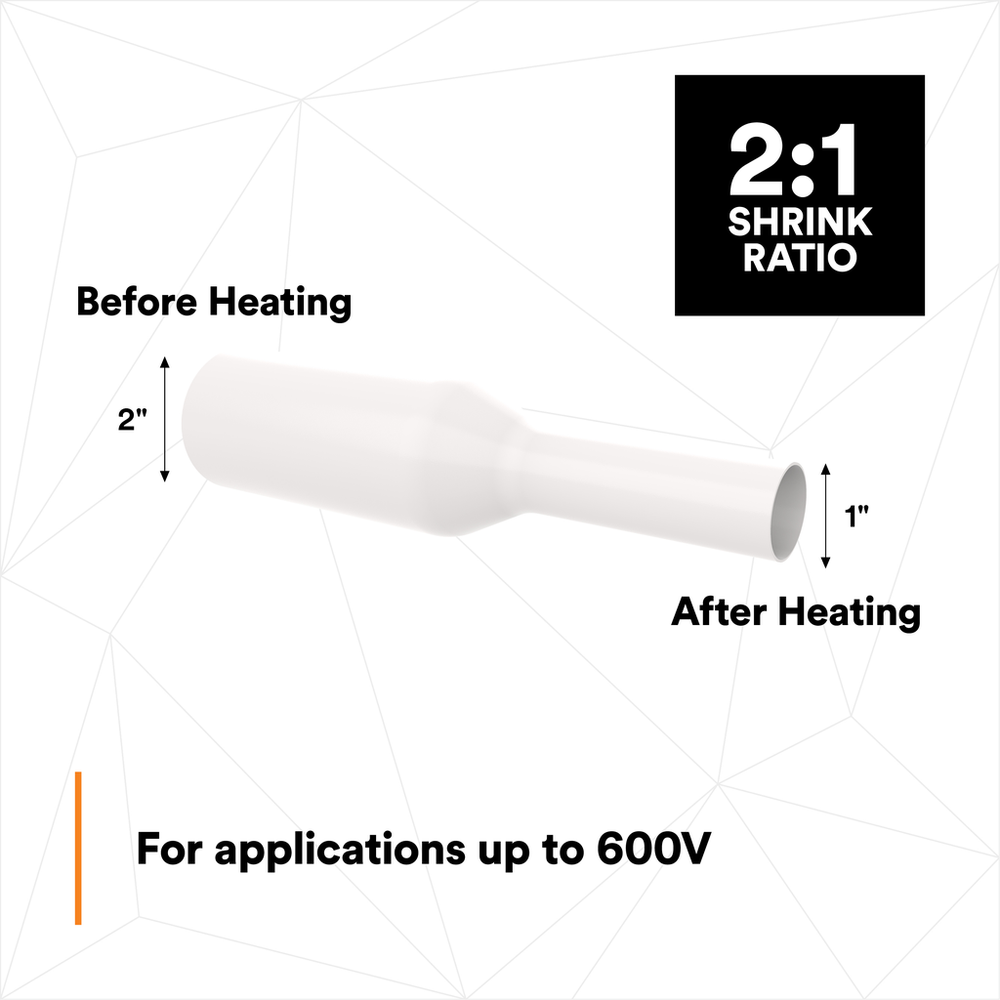

Shrink Ratio2:1
Product ColorWhite
Inner Diameter After Shrink (Metric) UOMmm
Mil SpecAMS-DTL-23053/5, Class 1
Operating Temperature (Celsius)-55 to 135 Degrees Celsius
Maximum Operating Temperature (Celsius)135.0
UL File NumberE-39100
ApplicationElectrical Insulation; High-tenacity and chemically resistant tubing
Inner Diameter After Shrink (Imperial)1.0
