3M Products & Supplies

3M™ Heat Shrink Thin-Wall Tubing FP-301-2-Black-100`: 100 ft spool length, 200 linear ft/box, 2 Rolls/Case - 7100025150

Sold As: 200-Pack
SKU: 7100025150
MPN: 7100025150
For an accurate lead time please contact us
UPC: 00054007085171
3M ID: 80610219851
5 Digit UPC: 8517
$702.84 ($3.51 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Tubing FP-301 is a general purpose, thin wall tubing that provides a balance of electrical, physical and chemical properties, making it ideal for industrial and military applications. This tubing has a 2:1 shrink ratio and provides flame retardant insulation for 600V rated applications. It has a flexible polyolefin construction that offers moisture seal protection.

Features

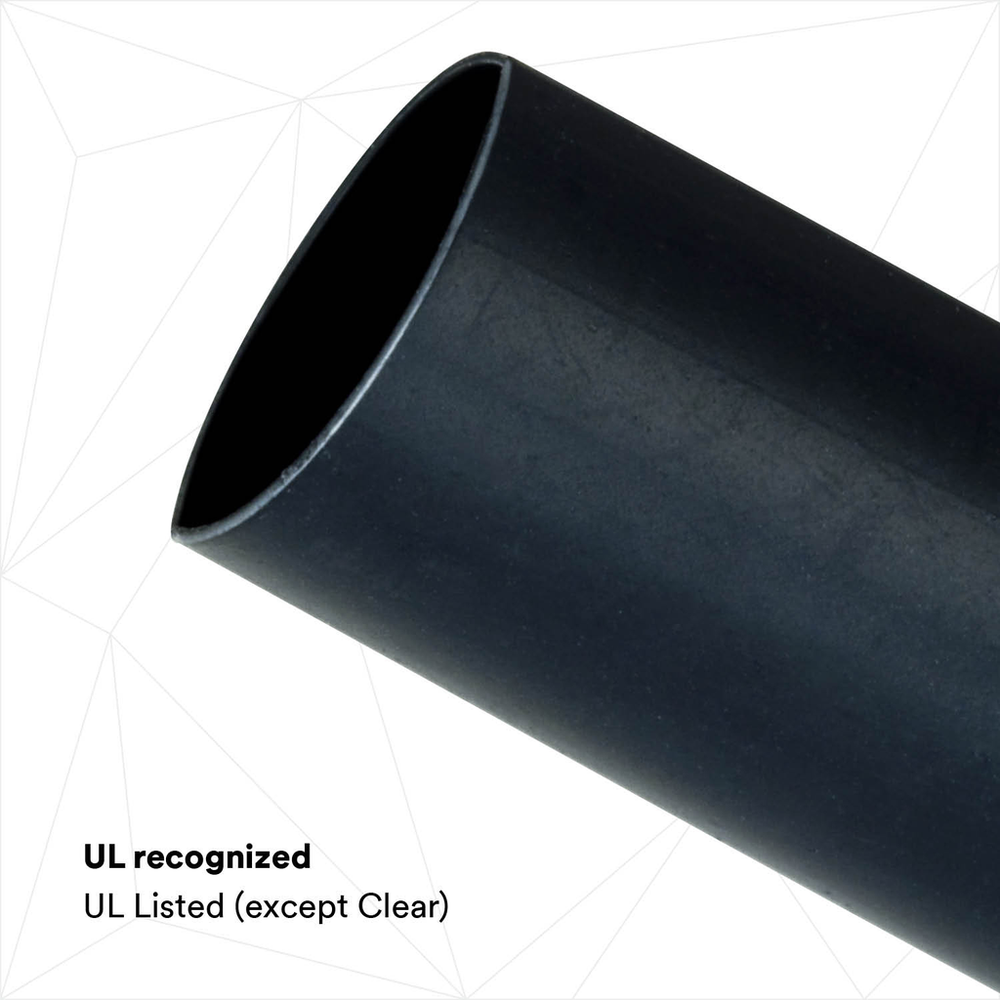

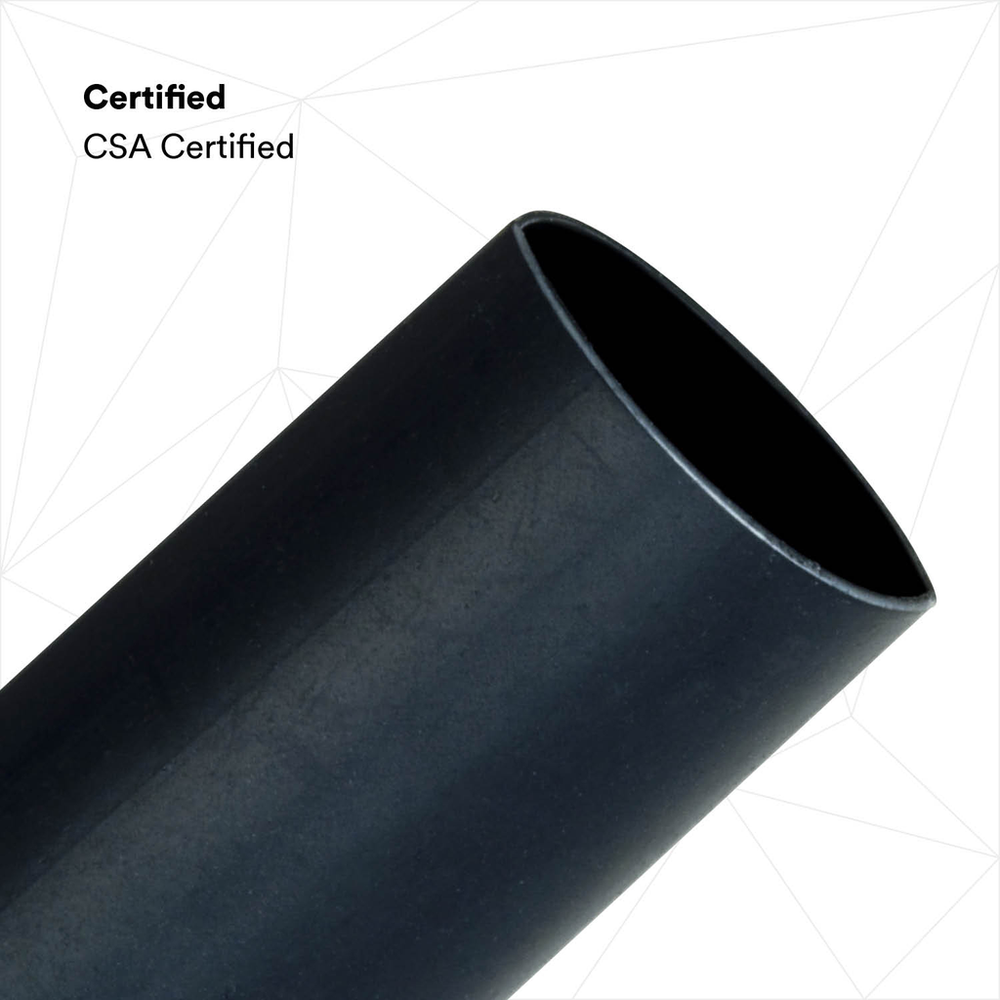

  • KEY SPECIFICATIONS: UL Listed, File E-39100, SAE AS23053/5, Class 1 (all colors), Class 2 (clear), CSA Certified, and RoHS 2011/65/EU Compliant
  • HIGH-STRENGTH PROTECTION: Balances electrical, physical, and chemical properties for various industrial and military applications
  • FOR DEMANDING CONDITIONS: Performs at an operating temperature up to 275 °F (135 °C)
  • A VARIETY OF APPLICATIONS: Offers a 2:1 shrink-fit ratio and serves as protection in wire-harnessing, split-resistance covering, wire marking, wire bundling, and component packaging
  • FLAME-RETARDANT TUBING: For applications up to 600V (clear is not flame retardant)
Spec Sheet



Downloads

Specifications

Shelf Life3650
Country of OriginUnited States
Non-CorrosiveYes
Operating Temperature (Celsius)-55 to 135 Degrees Celsius
UL ApprovalYes
Maximum Operating Temperature (Fahrenheit)275.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
Elongation UOMDecibel
MaterialFlexible Polyolefin
Overall Length (Imperial) UOMft
Inner Diameter Before Shrink (Imperial) UOMin
Product FormStick
Units per Case2.0
Inner Diameter Before Shrink (Imperial)2.0
Maximum Operating Temperature (Celsius)135.0
Heat Shrink TypeSingle-Wall Polyolefin Heat Shrink Tubing
Inner Diameter Before Shrink (Metric)50.8
Maximum Operating Temperature (Celsius) UomDegree
Flame RetardantYes
Inner Diameter Before Shrink (Metric) UOMmm
Inner Diameter After Shrink (Imperial)1.0
Operating Temperature Range (Celsius)-55 °C to +135 °C
ApplicationElectrical Insulation; High-tenacity and chemically resistant tubing
Inner Diameter After Shrink (Imperial) UOMin
Inner Diameter After Shrink (Metric)25.4
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Adhesive MaterialNone
Inner Diameter After Shrink (Metric) UOMmm
Minimum Shrink Temperature (Celsius)100.0
Overall Length (Imperial)100.0
Minimum Expanded Tubing I. D.2.0
Tubing TypeSingle Wall (Thin)
UL File NumberE-39100
Minimum Expanded Tubing I. D. UOMin
Shrink Ratio2:1
Overall Width (Imperial)0.0
Mil SpecAMS-DTL-23053/5, Class 1
Operating Temperature Range (Fahrenheit)-67 °F to 275 °F
