3M™ Heat Shrink Thin-Wall Tubing FP-301VW-1.5-Black-100`: 100 ft spool length, 200 linear ft/box, 2 Rolls/Case - 7010396264

Name: 3M™ Heat Shrink Thin-Wall Tubing FP-301VW-1.5-Black-100`: 100 ft spool length, 200 linear ft/box, 2 Rolls/Case - 7010396264
Brand: 3M Products & Supplies
SKU: 7010396264
Price: 1706.45 USD
Availability: InStock

Sold As: 600-Pack

SKU: 7010396264

MPN: 7010396264

Made to Order: For a lead time estimate, please send your request to [email protected]

UPC: 10054007388507

3M ID: 80610239842

5 Digit UPC: 38850

$1,706.45 ($2.84 / Count)

Hurry up! Current stock:

Quantity:

Product Description

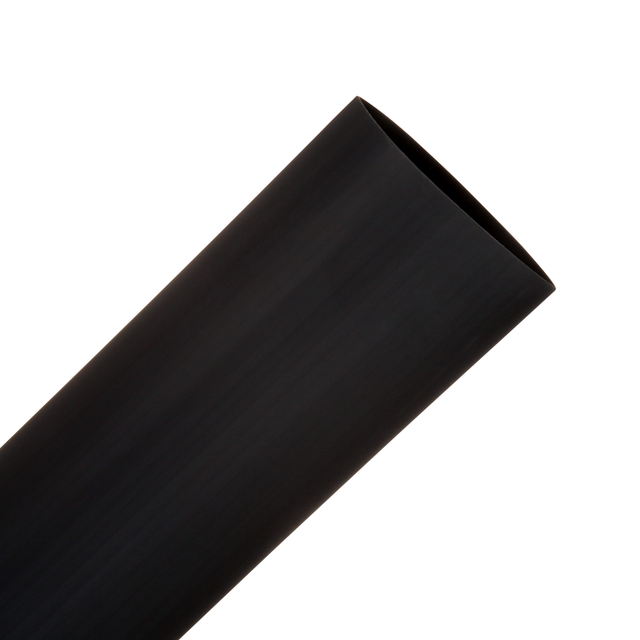

3M™ FP-301VW Heat Shrink Tubing is a thin wall tubing that provides a balance of electrical, physical and chemical properties. This tubing has a 2:1 shrink ratio and provides insulation for 600V rated applications. It has highly flame retardant, flexible polyolefin construction for moisture seal protection.

Features

Balances electrical, physical and chemical properties for various industrial and military applications
Withstands temperatures of -67 to 275 degrees F (-55 to 135 degrees C)
Made of black flexible polyolefin
Rated for 600V applications
Suitable for flame-retardant applications requiring UL VW-1 and CSA OFT, fire-resistant wiring

Spec Sheet

Downloads

Safety Data Sheet

Spec Sheet

Product Selection Guides

Specifications

Shelf Life	3600
Country of Origin	United States
Inner Diameter Before Shrink (Metric) UOM	mm
Heat Shrink Type	Single-Wall Polyolefin Heat Shrink Tubing
Inner Diameter After Shrink (Imperial)	0.75
Operating Temperature (Celsius)	-55 to 135 Degrees Celsius
Non-Corrosive	Yes
Product Color	Black
Overall Length (Imperial)	100.0
Inner Diameter Before Shrink (Imperial)	1.5
Flame Retardant	Yes
Maximum Operating Temperature (Celsius)	135.0
Inner Diameter Before Shrink (Metric)	38.1
Inner Diameter Before Shrink (Imperial) UOM	in
UL File Number	E-39100
Maximum Operating Temperature (Fahrenheit)	275.0
Overall Length (Imperial) UOM	ft
Maximum Operating Temperature (Fahrenheit) UOM	Degree
Inner Diameter After Shrink (Metric)	19.05
RoHS EU Comments	RoHS 2011/65/EU compliant without exemption
Elongation UOM	%
Material	Highly Flame-retardant, Flexible Polyolefin
Mil Spec	AMS-DTL-23053/5, Class 3
Inner Diameter After Shrink (Metric) UOM	mm
Tubing Type	Single (Thin) Wall
Inner Diameter After Shrink (Imperial) UOM	in
Shrink Ratio	2:1
Maximum Operating Temperature (Celsius) Uom	Degree
