3M Products & Supplies

3M™ Heat Shrink Thin-Wall Tubing FP-301VW-2-Black-100`: 100 ft spool length, 100 ft/case - 7010349767

Name: 3M™ Heat Shrink Thin-Wall Tubing FP-301VW-2-Black-100`: 100 ft spool length, 100 ft/case - 7010349767
Brand: 3M Products & Supplies
SKU: 7010349767
Price: 702.84 USD
Availability: InStock

Sold As: 200-Pack

SKU: 7010349767

MPN: 7010349767

For an accurate lead time please contact us

UPC: 10054007388644

3M ID: 80610239982

5 Digit UPC: 38864

$702.84 ($3.51 / Count)

Hurry up! Current stock:

Quantity:

Product Description

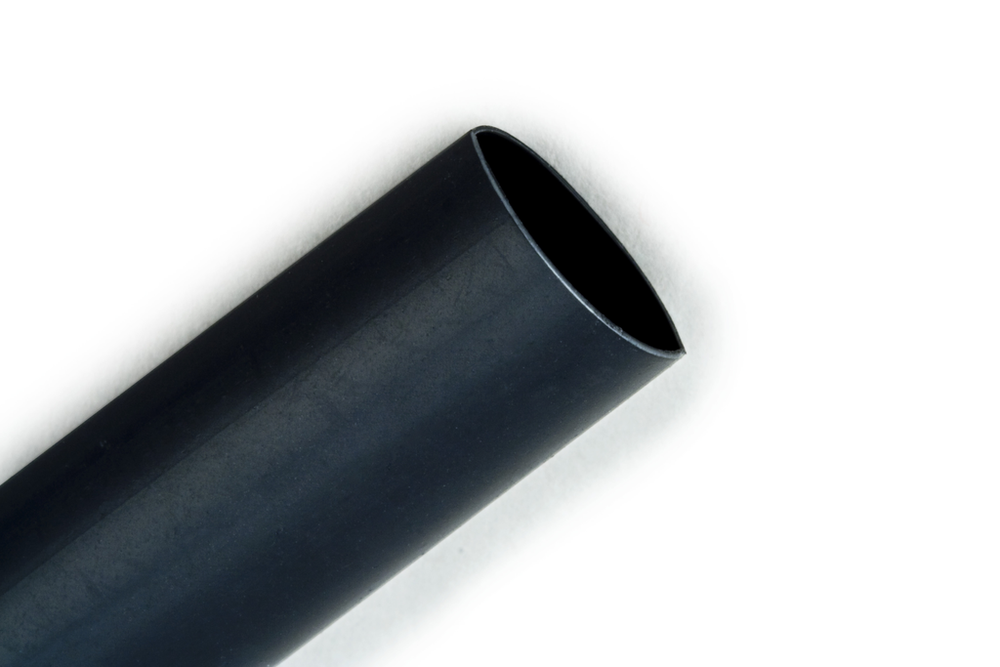

3M™ FP-301VW Heat Shrink Tubing is a thin wall tubing that provides a balance of electrical, physical and chemical properties. This tubing has a 2:1 shrink ratio and provides insulation for 600V rated applications. It has highly flame retardant, flexible polyolefin construction for moisture seal protection.

Features

Rated for 600V applications
Suitable for flame-retardant applications requiring UL VW-1 and CSA OFT, fire-resistant wiring
Withstands temperatures of -67 to 275 degrees F (-55 to 135 degrees C)
Made of black flexible polyolefin
Balances electrical, physical and chemical properties for various industrial and military applications

Spec Sheet

Downloads

Spec Sheet

Safety Data Sheet

Product Selection Guides

Specifications

Shelf Life	3600
Country of Origin	United States
Inner Diameter After Shrink (Metric)	25.4
Minimum Expanded Tubing I. D. UOM	in
Product Color	Black
UL File Number	E-39100
Overall Length (Imperial)	100.0
Inner Diameter After Shrink (Metric) UOM	mm
Shrink Ratio	2:1
RoHS EU Comments	RoHS 2011/65/EU compliant without exemption
Inner Diameter Before Shrink (Imperial)	2.0
Inner Diameter After Shrink (Imperial)	1.0
Mil Spec	AMS-DTL-23053/5, Class 3
Elongation UOM	%
Inner Diameter After Shrink (Imperial) UOM	in
Maximum Operating Temperature (Celsius)	135.0
Operating Temperature (Celsius)	-55 to 135 Degrees Celsius
Overall Length (Imperial) UOM	ft
Flame Retardant	Yes
Maximum Operating Temperature (Celsius) Uom	Degree
Inner Diameter Before Shrink (Metric) UOM	mm
Maximum Operating Temperature (Fahrenheit)	275.0
Maximum Operating Temperature (Fahrenheit) UOM	Degree
Inner Diameter Before Shrink (Imperial) UOM	in
Heat Shrink Type	Single-Wall Polyolefin Heat Shrink Tubing
Minimum Expanded Tubing I. D.	2.0
Material	Highly Flame-retardant, Flexible Polyolefin
Non-Corrosive	Yes
Inner Diameter Before Shrink (Metric)	50.8
Tubing Type	Single (Thin) Wall
