3M Products & Supplies

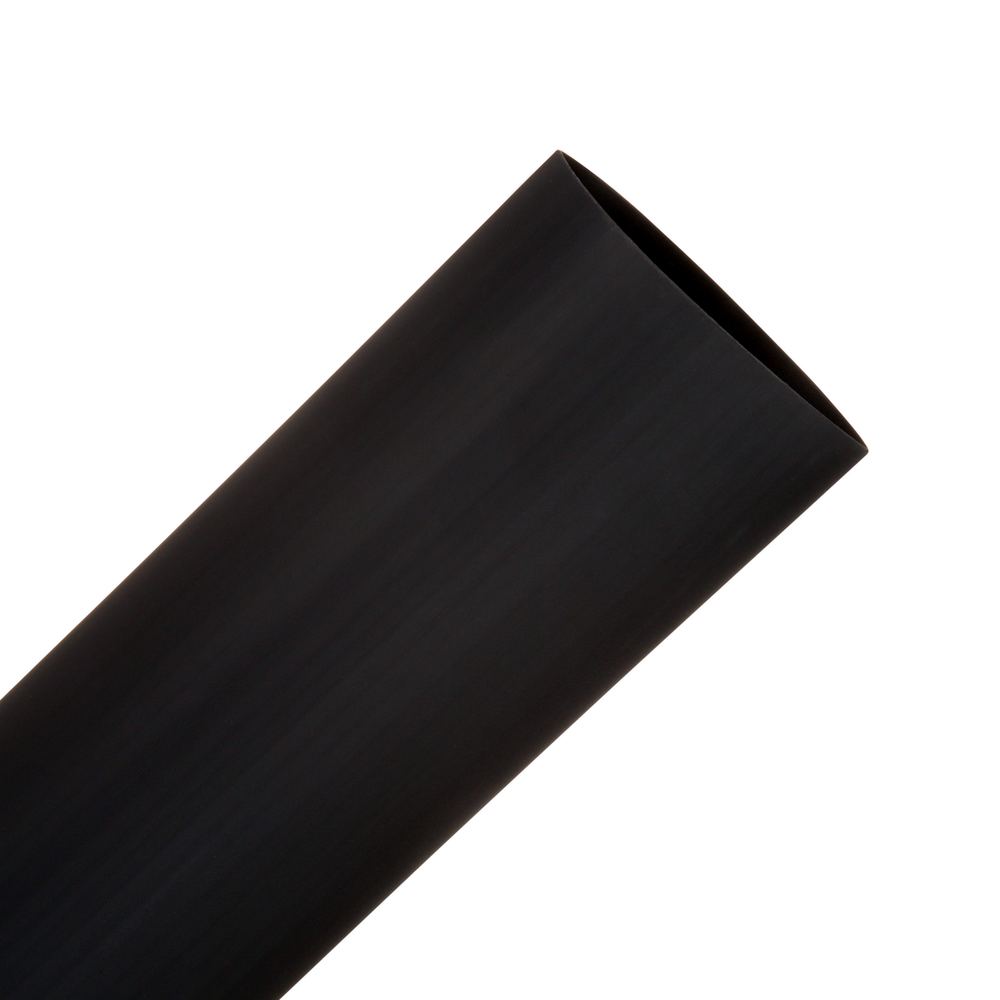

3M™ Heat Shrink Thin-Wall Tubing FP-301-1.5-Black-100`: 100 ft spool length, 200 ft/case - 7000005975

Sold As: 200-Pack
SKU: 7000005975
MPN: 7000005975
For an accurate lead time please contact us
UPC: 00054007085140
3M ID: 80610219828
5 Digit UPC: 8514
$609.68 ($3.05 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Tubing FP-301 is a general purpose, thin wall tubing that provides a balance of electrical, physical and chemical properties, making it ideal for industrial and military applications. This tubing has a 2:1 shrink ratio and provides flame retardant insulation for 600V rated applications. It has a flexible polyolefin construction that offers moisture seal protection.

Features

  • HIGH-STRENGTH PROTECTION: Balances electrical, physical, and chemical properties for various industrial and military applications
  • A VARIETY OF APPLICATIONS: Offers a 2:1 shrink-fit ratio and serves as protection in wire-harnessing, split-resistance covering, wire marking, wire bundling, and component packaging
  • KEY SPECIFICATIONS: UL Listed, File E-39100, SAE AS23053/5, Class 1 (all colors), Class 2 (clear), CSA Certified, and RoHS 2011/65/EU Compliant
  • FOR DEMANDING CONDITIONS: Performs at an operating temperature up to 275 °F (135 °C)
  • FLAME-RETARDANT TUBING: For applications up to 600V (clear is not flame retardant)
Spec Sheet



Downloads

Specifications

Shelf Life3650
Country of OriginUnited States
Non-CorrosiveYes
Maximum Operating Temperature (Fahrenheit)275.0
Overall Length (Imperial)100.0
Inner Diameter After Shrink (Metric)19.05
Inner Diameter Before Shrink (Imperial) UOMin
ApplicationElectrical Insulation; High-tenacity and chemically resistant tubing
Overall Length (Metric) UOMm
UL ApprovalYes
Inner Diameter After Shrink (Metric) UOMmm
Tubing TypeSingle Wall (Thin)
Shrink Ratio2:1
Product ColorBlack
UL File NumberE-39100
Operating Temperature Range (Fahrenheit)-67 °F to 275 °F
MaterialFlexible Polyolefin
Units per Case2.0
Maximum Operating Temperature (Celsius)135.0
Minimum Shrink Temperature (Celsius)100.0
Elongation UOM%
Flame RetardantYes
Inner Diameter Before Shrink (Metric)38.1
Overall Length (Metric)30.5
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Operating Temperature (Celsius)-55 to 135 Degrees Celsius
Inner Diameter After Shrink (Imperial) UOMin
Operating Temperature Range (Celsius)-55 °C to +135 °C
Inner Diameter After Shrink (Imperial)0.75
Inner Diameter Before Shrink (Imperial)1.5
Maximum Operating Temperature (Fahrenheit) UOMDegree
Adhesive MaterialNone
Heat Shrink TypeSingle-Wall Polyolefin Heat Shrink Tubing
Mil SpecAMS-DTL-23053/5, Class 1
Inner Diameter Before Shrink (Metric) UOMmm
Overall Length (Imperial) UOMft
Maximum Operating Temperature (Celsius) UomDegree
