3M Products & Supplies

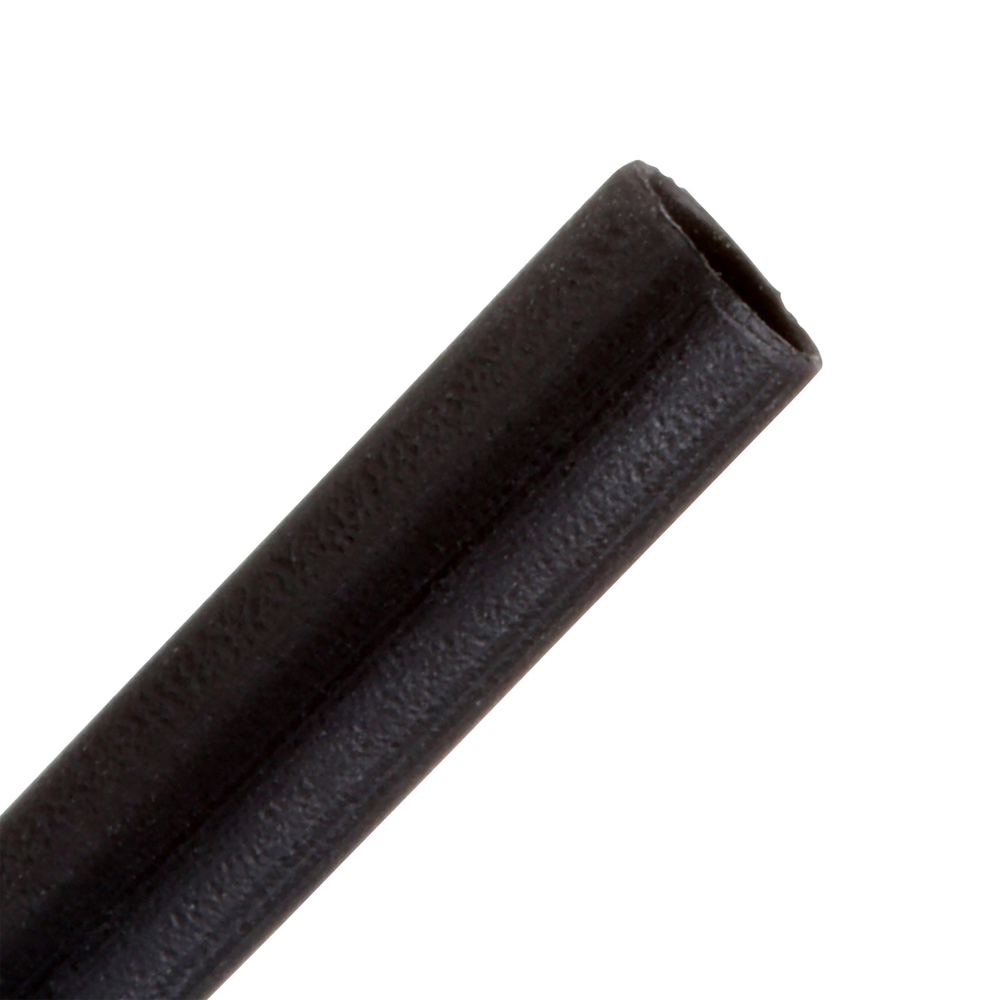

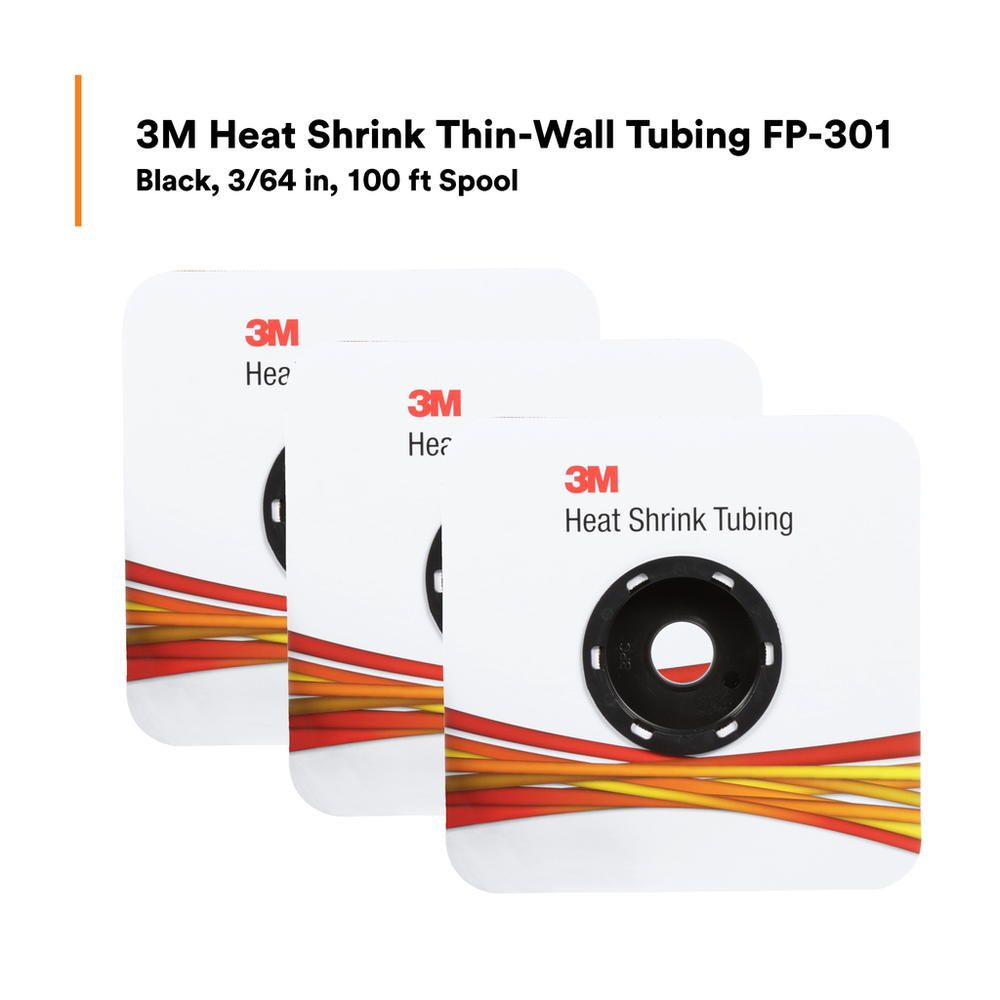

3M™ Heat Shrink Thin-Wall Tubing FP-301-3/64-Black-100', 100 ft Length spool, 300 ft/case - 7010398559

Sold As: 300-Pack
SKU: 7010398559
MPN: 7010398559
For an accurate lead time please contact us
UPC: 10051138360273
3M ID: 80610749113
5 Digit UPC: 36027
$190.75 ($0.64 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Tubing FP-301 is a general purpose, thin wall tubing that provides a balance of electrical, physical and chemical properties, making it ideal for industrial and military applications. This tubing has a 2:1 shrink ratio and provides flame retardant insulation for 600V rated applications. It has a flexible polyolefin construction that offers moisture seal protection.

Features

  • FOR DEMANDING CONDITIONS: Performs at an operating temperature up to 275 °F (135 °C)
  • KEY SPECIFICATIONS: UL Listed, File E-39100, SAE AS23053/5, Class 1 (all colors), Class 2 (clear), CSA Certified, and RoHS 2011/65/EU Compliant
  • FLAME-RETARDANT TUBING: For applications up to 600V (clear is not flame retardant)
  • A VARIETY OF APPLICATIONS: Offers a 2:1 shrink-fit ratio and serves as protection in wire-harnessing, split-resistance covering, wire marking, wire bundling, and component packaging
  • HIGH-STRENGTH PROTECTION: Balances electrical, physical, and chemical properties for various industrial and military applications
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Inner Diameter Before Shrink (Imperial)0.046
Inner Diameter Before Shrink (Imperial) UOMin
Maximum Operating Temperature (Celsius) UomDegree
Units per Case3.0
Tubing TypeSingle (Thin) Wall
Flame RetardantYes
Mil SpecAMS-DTL-23053/5, Class 1
Shrink Ratio2:1
Inner Diameter After Shrink (Imperial) UOMin
Heat Shrink TypeSingle-Wall Polyolefin Heat Shrink Tubing
Overall Length (Imperial) UOMft
Non-CorrosiveYes
Elongation UOM%
Inner Diameter Before Shrink (Metric)1.17
Maximum Operating Temperature (Fahrenheit)275.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
Operating Temperature (Celsius)-55 to 135 Degrees Celsius
Inner Diameter After Shrink (Metric)0.58
UL File NumberE-39100
Minimum Expanded Tubing I. D.3.0
ApplicationElectrical Insulation; High-tenacity and chemically resistant tubing
Inner Diameter After Shrink (Metric) UOMmm
Minimum Expanded Tubing I. D. UOMin
Adhesive MaterialNone
Product ColorBlack
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Inner Diameter Before Shrink (Metric) UOMmm
Overall Length (Imperial)100.0
Maximum Operating Temperature (Celsius)135.0
Inner Diameter After Shrink (Imperial)0.023
