3M Products & Supplies

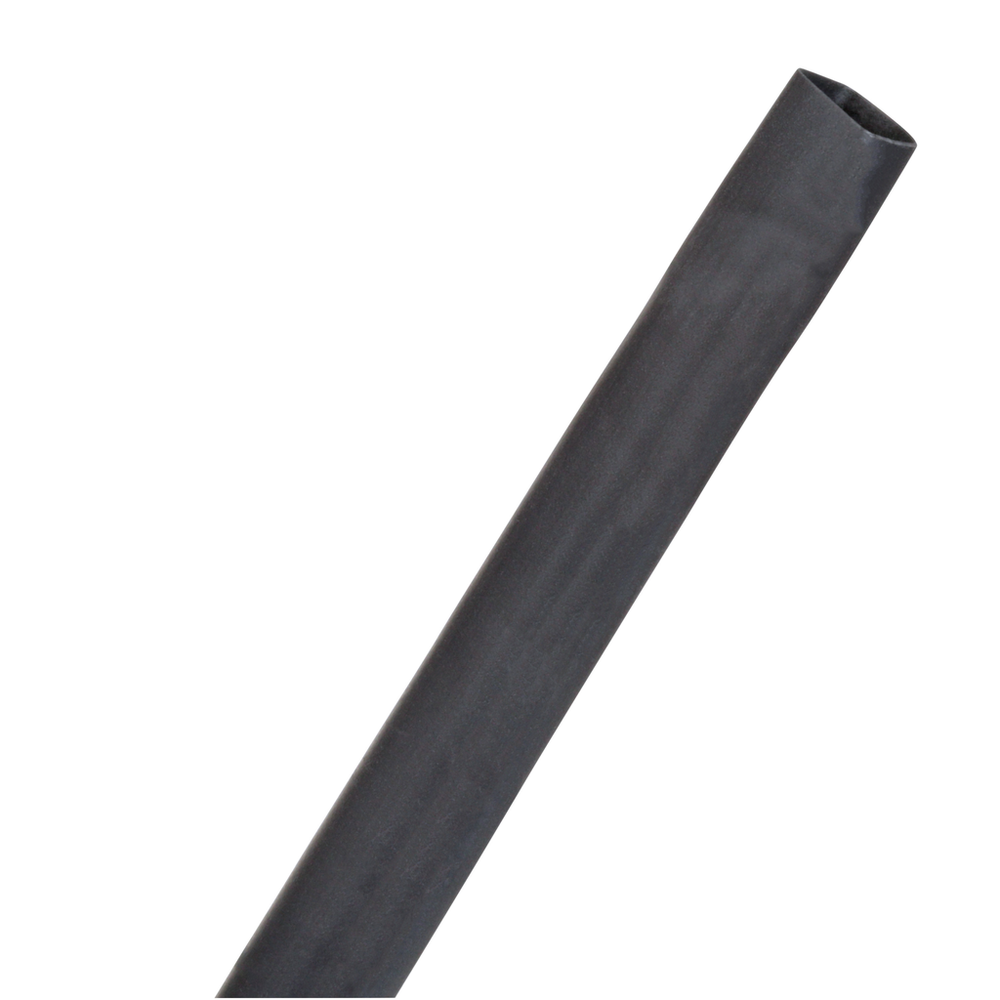

3M™ Heat Shrink Thin-Wall Tubing FP-301-3/8-Black-100': 100 ft spool length, 300 ft/case - 7100030655

Sold As: 300-Pack
SKU: 7100030655
MPN: 7100030655
For an accurate lead time please contact us
UPC: 10051135355807
3M ID: 80610752380
5 Digit UPC: 35580
$225.09 ($0.75 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Tubing FP-301 is a general purpose, thin wall tubing that provides a balance of electrical, physical and chemical properties, making it ideal for industrial and military applications. This tubing has a 2:1 shrink ratio and provides flame retardant insulation for 600V rated applications. It has a flexible polyolefin construction that offers moisture seal protection.

Features

  • FOR DEMANDING CONDITIONS: Performs at an operating temperature up to 275 °F (135 °C)
  • FLAME-RETARDANT TUBING: For applications up to 600V (clear is not flame retardant)
  • A VARIETY OF APPLICATIONS: Offers a 2:1 shrink-fit ratio and serves as protection in wire-harnessing, split-resistance covering, wire marking, wire bundling, and component packaging
  • HIGH-STRENGTH PROTECTION: Balances electrical, physical, and chemical properties for various industrial and military applications
  • KEY SPECIFICATIONS: UL Listed, File E-39100, SAE AS23053/5, Class 1 (all colors), Class 2 (clear), CSA Certified, and RoHS 2011/65/EU Compliant
Spec Sheet



Downloads

Specifications

Shelf Life3650
Country of OriginUnited States
Heat Shrink TypeSingle-Wall Polyolefin Heat Shrink Tubing
Units per Case3.0
Product ColorBlack
Flame RetardantYes
Inner Diameter After Shrink (Imperial)0.187
MaterialFlexible Polyolefin
With Inner GlueNo
Inner Diameter Before Shrink (Metric)9.53
Inner Diameter After Shrink (Metric)4.75
Mil SpecAMS-DTL-23053/5, Class 1
Maximum Operating Temperature (Fahrenheit) UOMDegree
UL File NumberE-39100
Overall Length (Metric)30.5
Maximum Operating Temperature (Celsius)135.0
Inner Diameter Before Shrink (Imperial)0.375
UL ApprovalYes
Overall Length (Metric) UOMm
Shrink Ratio2:1
Inner Diameter Before Shrink (Metric) UOMmm
Inner Diameter After Shrink (Metric) UOMmm
Adhesive MaterialNone
Non-CorrosiveYes
Operating Temperature (Celsius)-55 to 135 Degrees Celsius
Minimum Shrink Temperature (Celsius)100.0
Inner Diameter Before Shrink (Imperial) UOMin
Elongation UOM%
Operating Temperature Range (Celsius)-55 °C to +135 °C
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Maximum Operating Temperature (Fahrenheit)275.0
Minimum Expanded Tubing I. D. UOMin
Maximum Operating Temperature (Celsius) UomDegree
Overall Length (Imperial) UOMft
Operating Temperature (Fahrenheit)-67 °F to 275 °F
ApplicationElectrical Insulation; High-tenacity and chemically resistant tubing
Minimum Expanded Tubing I. D.3.0
Inner Diameter After Shrink (Imperial) UOMin
Tubing TypeSingle Wall (Thin)
Overall Length (Imperial)100.0
Operating Temperature Range (Fahrenheit)-67 °F to 275 °F
