3M Products & Supplies

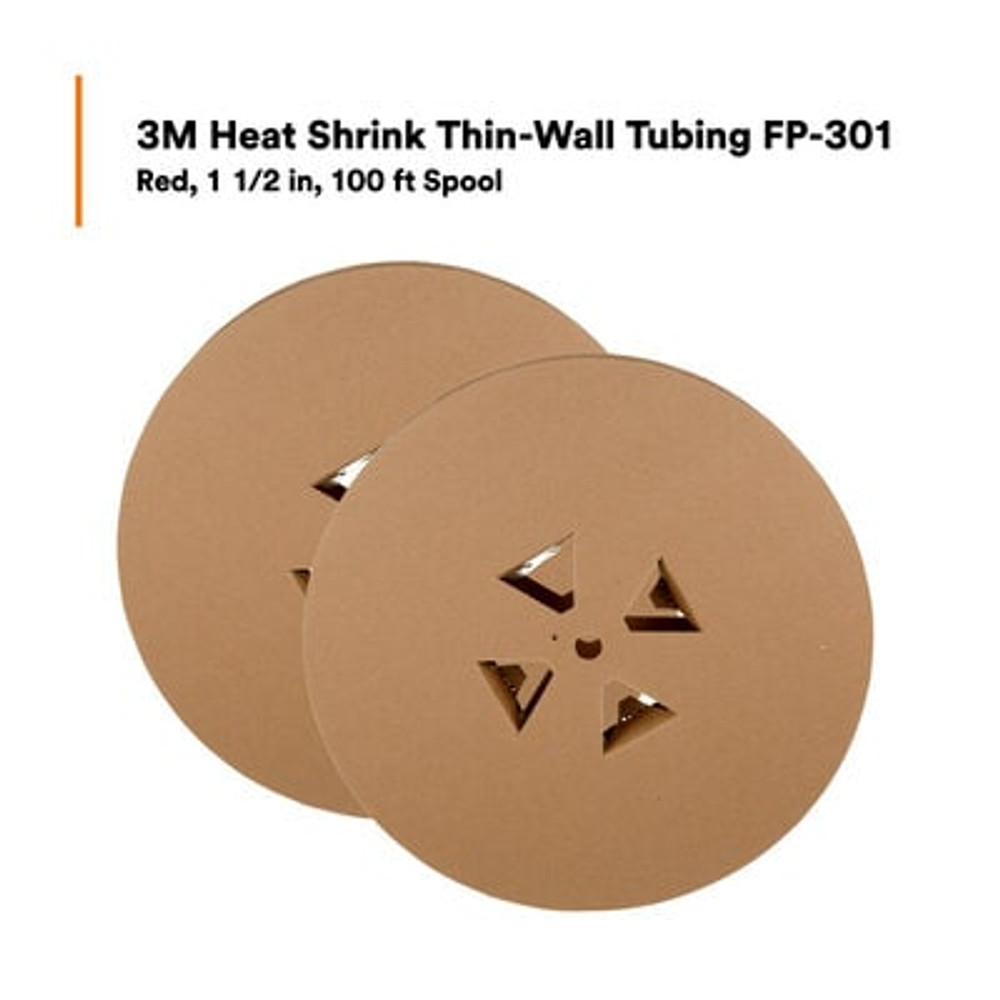

3M™ Heat Shrink Thin-Wall Tubing FP-301-1.5-Red-100`: 100 ft spool length, 200 ft/case - 7100053332

Sold As: 1000-Pack
SKU: 7100053332
MPN: 7100053332
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007388609
3M ID: 80610239941
5 Digit UPC: 38860
$2,647.87 ($2.65 / Count)
Hurry up! Current stock:

Product Description

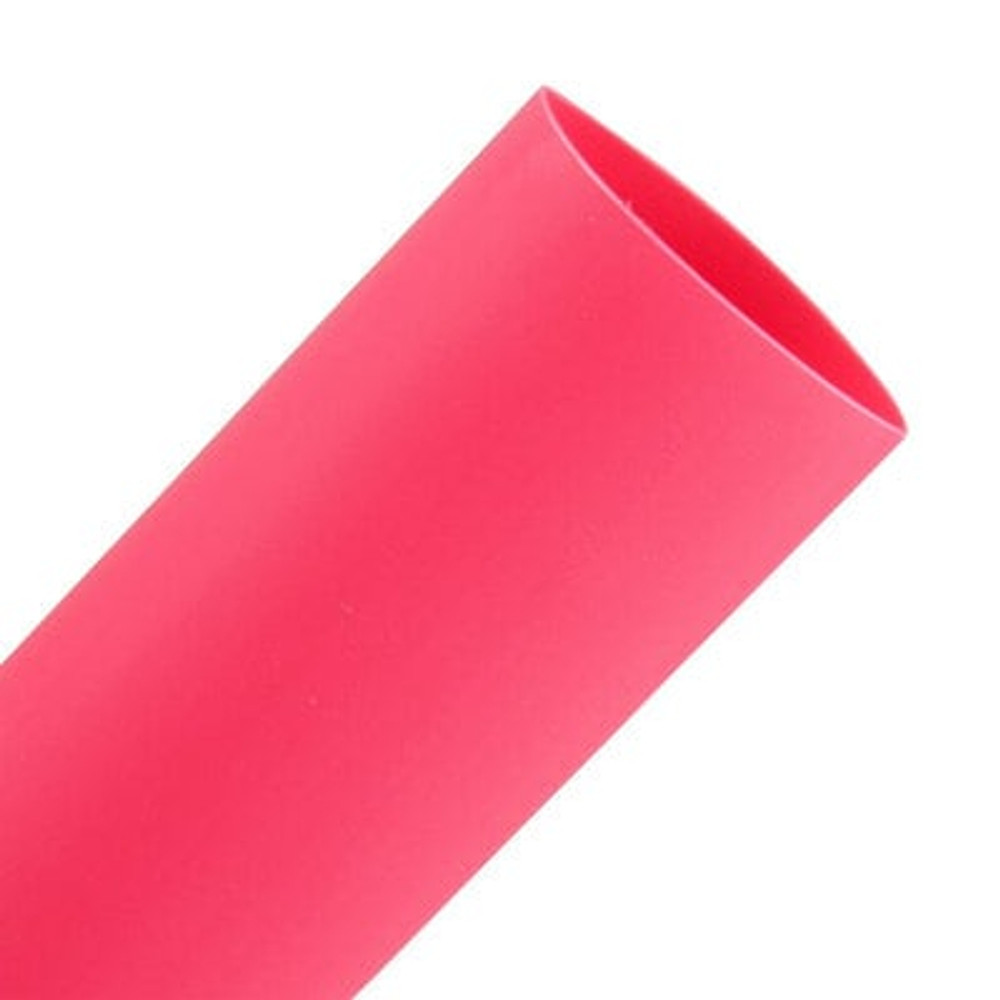

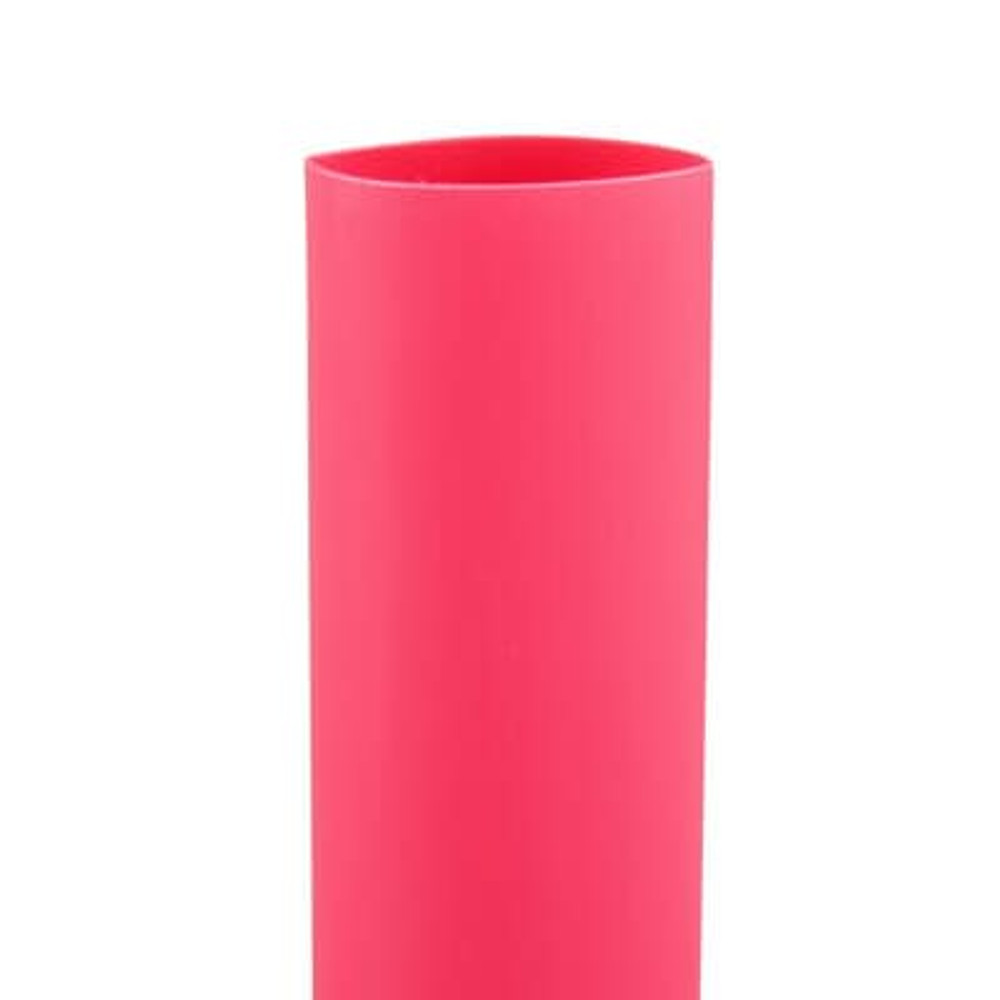

3M™ Heat Shrink Tubing FP-301 is a general purpose, thin wall tubing that provides a balance of electrical, physical and chemical properties, making it ideal for industrial and military applications. This tubing has a 2:1 shrink ratio and provides flame retardant insulation for 600V rated applications. It has a flexible polyolefin construction that offers moisture seal protection.

Features

  • HIGH-STRENGTH PROTECTION: Balances electrical, physical, and chemical properties for various industrial and military applications
  • FLAME-RETARDANT TUBING: For applications up to 600V (clear is not flame retardant)
  • A VARIETY OF APPLICATIONS: Offers a 2:1 shrink-fit ratio and serves as protection in wire-harnessing, split-resistance covering, wire marking, wire bundling, and component packaging
  • KEY SPECIFICATIONS: UL Listed, File E-39100, SAE AS23053/5, Class 1 (all colors), Class 2 (clear), CSA Certified, and RoHS 2011/65/EU Compliant
  • FOR DEMANDING CONDITIONS: Performs at an operating temperature up to 275 °F (135 °C)
Spec Sheet



Downloads

Specifications

Shelf Life3650
Country of OriginUnited States
Operating Temperature Range (Fahrenheit)-67 °F to 275 °F
Overall Length (Imperial)100.0
Shrink Ratio2:1
Inner Diameter Before Shrink (Metric) UOMmm
Maximum Operating Temperature (Celsius)135.0
Operating Temperature Range (Celsius)-55 °C to +135 °C
Inner Diameter After Shrink (Metric)19.05
Mil SpecAMS-DTL-23053/5, Class 1
UL File NumberE-39100
Maximum Operating Temperature (Fahrenheit)275.0
Non-CorrosiveYes
MaterialFlexible Polyolefin
Operating Temperature (Celsius)-55 to 135 Degrees Celsius
Elongation UOM%
Flame RetardantYes
ApplicationElectrical Insulation; High-tenacity and chemically resistant tubing
UL ApprovalYes
Inner Diameter After Shrink (Imperial) UOMin
Heat Shrink TypeSingle-Wall Polyolefin Heat Shrink Tubing
Inner Diameter Before Shrink (Metric)38.1
Maximum Operating Temperature (Fahrenheit) UOMDegree
Maximum Operating Temperature (Celsius) UomDegree
Product ColorRed
Units per Case2.0
Inner Diameter Before Shrink (Imperial)1.5
Inner Diameter After Shrink (Imperial)0.75
Overall Length (Imperial) UOMft
Inner Diameter After Shrink (Metric) UOMmm
Minimum Shrink Temperature (Celsius)100.0
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Inner Diameter Before Shrink (Imperial) UOMin
Adhesive MaterialNone
Tubing TypeSingle Wall (Thin)
