3M Products & Supplies

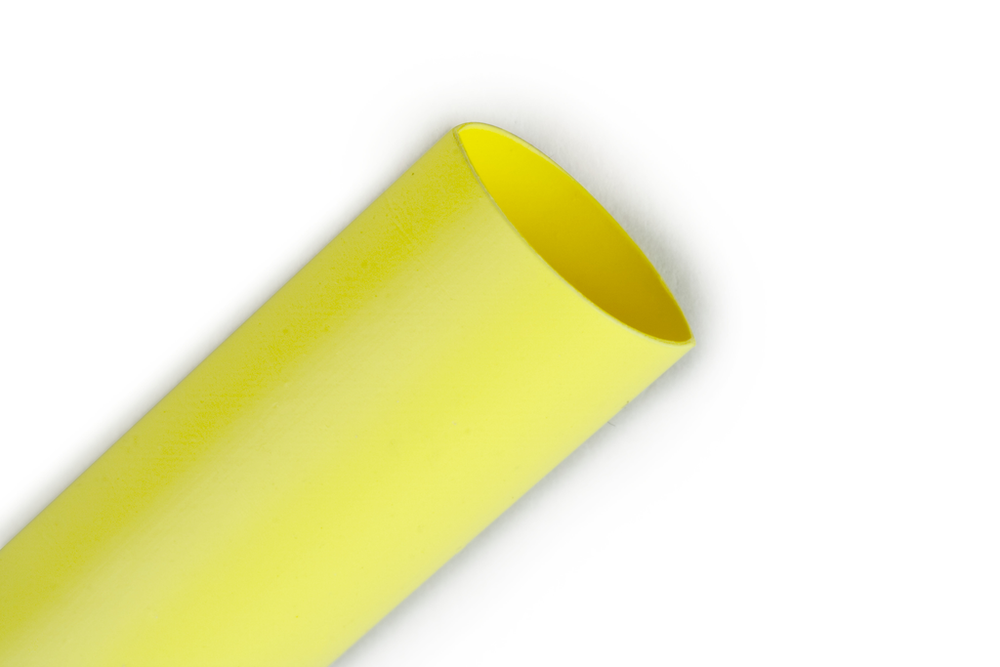

3M™ Heat Shrink Thin-Wall Tubing FP-301-1.5-Yellow-100`: 100 ft spool length, 200 ft/case - 7000057975

Sold As: 200-Pack
SKU: 7000057975
MPN: 7000057975
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007085164
3M ID: 80610219844
5 Digit UPC: 8516
$542.66 ($2.71 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Tubing FP-301 is a general purpose, thin wall tubing that provides a balance of electrical, physical and chemical properties, making it ideal for industrial and military applications. This tubing has a 2:1 shrink ratio and provides flame retardant insulation for 600V rated applications. It has a flexible polyolefin construction that offers moisture seal protection.

Features

  • FLAME-RETARDANT TUBING: For applications up to 600V (clear is not flame retardant)
  • KEY SPECIFICATIONS: UL Listed, File E-39100, SAE AS23053/5, Class 1 (all colors), Class 2 (clear), CSA Certified, and RoHS 2011/65/EU Compliant
  • HIGH-STRENGTH PROTECTION: Balances electrical, physical, and chemical properties for various industrial and military applications
  • A VARIETY OF APPLICATIONS: Offers a 2:1 shrink-fit ratio and serves as protection in wire-harnessing, split-resistance covering, wire marking, wire bundling, and component packaging
  • FOR DEMANDING CONDITIONS: Performs at an operating temperature up to 275 °F (135 °C)
Spec Sheet



Downloads

Specifications

Shelf Life3650
Country of OriginUnited States
Operating Temperature (Celsius)-55 to 135 Degrees Celsius
Inner Diameter Before Shrink (Metric)38.1
Elongation UOM%
Overall Length (Imperial) UOMft
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Non-CorrosiveYes
Overall Length (Imperial)100.0
Inner Diameter Before Shrink (Imperial)1.5
Inner Diameter Before Shrink (Imperial) UOMin
Inner Diameter After Shrink (Imperial)0.75
Maximum Operating Temperature (Celsius)135.0
Inner Diameter After Shrink (Imperial) UOMin
Heat Shrink TypeSingle-Wall Polyolefin Heat Shrink Tubing
Product ColorYellow
Maximum Operating Temperature (Fahrenheit)275.0
Shrink Ratio2:1
Units per Case2.0
Adhesive MaterialNone
Maximum Operating Temperature (Celsius) UomDegree
Tubing TypeSingle (Thin) Wall
Inner Diameter After Shrink (Metric) UOMmm
Maximum Operating Temperature (Fahrenheit) UOMDegree
Mil SpecAMS-DTL-23053/5, Class 1
Inner Diameter Before Shrink (Metric) UOMmm
UL File NumberE-39100
ApplicationElectrical Insulation; High-tenacity and chemically resistant tubing
Inner Diameter After Shrink (Metric)19.05
Flame RetardantYes
