3M Products & Supplies

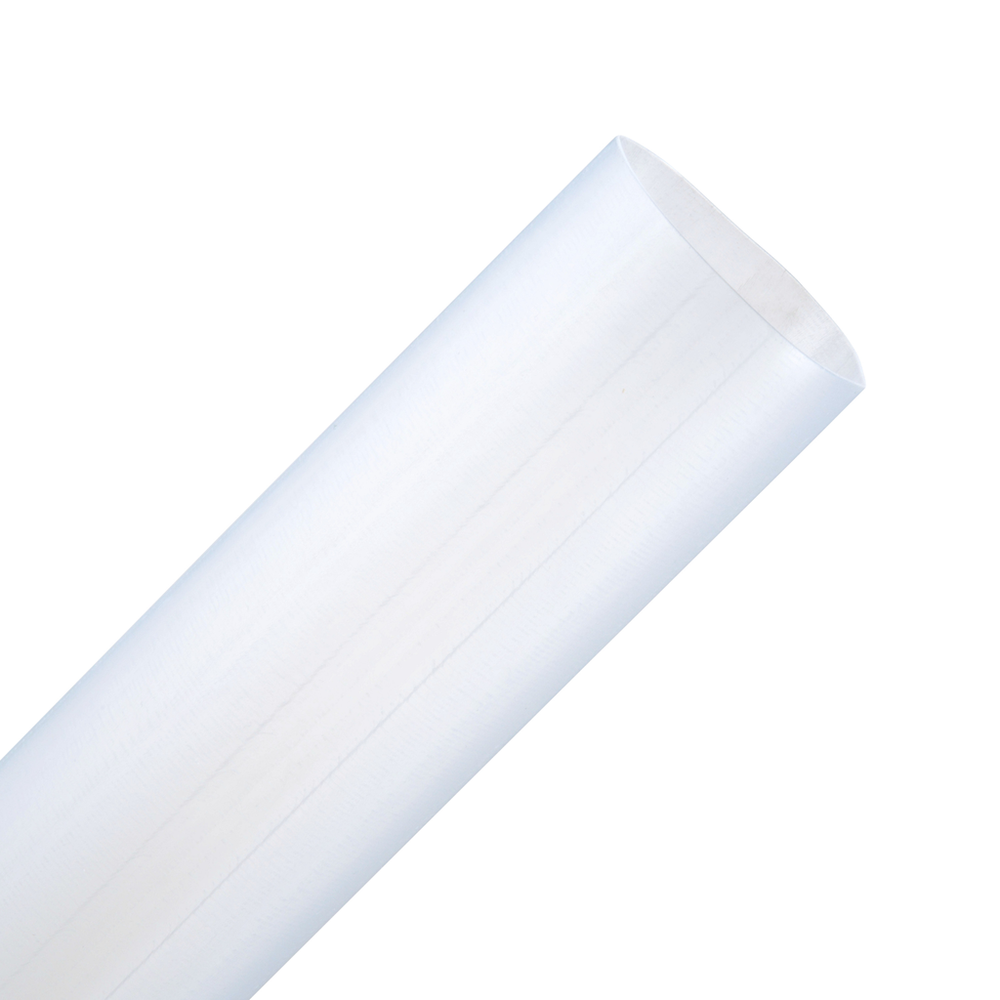

3M™ Heat Shrink Thin-Wall Tubing FP-301-2-Clear-100', 100 ft Length per spool, 2 spools/case - 7100026347

Sold As: 200-Pack
SKU: 7100026347
MPN: 7100026347
For an accurate lead time please contact us
UPC: 30054007085349
3M ID: 80610220024
5 Digit UPC: 8534
$719.19 ($3.60 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Tubing FP-301 is a general purpose, thin wall tubing that provides a balance of electrical, physical and chemical properties, making it ideal for industrial and military applications. This tubing has a 2:1 shrink ratio and provides flame retardant insulation for 600V rated applications. It has a flexible polyolefin construction that offers moisture seal protection.

Features

  • HIGH-STRENGTH PROTECTION: Balances electrical, physical, and chemical properties for various industrial and military applications
  • KEY SPECIFICATIONS: UL Listed, File E-39100, SAE AS23053/5, Class 1 (all colors), Class 2 (clear), CSA Certified, and RoHS 2011/65/EU Compliant
  • A VARIETY OF APPLICATIONS: Offers a 2:1 shrink-fit ratio and serves as protection in wire-harnessing, split-resistance covering, wire marking, wire bundling, and component packaging
  • FLAME-RETARDANT TUBING: For applications up to 600V (clear is not flame retardant)
  • FOR DEMANDING CONDITIONS: Performs at an operating temperature up to 275 °F (135 °C)
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Inner Diameter After Shrink (Metric) UOMmm
Operating Temperature Range (Fahrenheit)-67 °F to 275 °F
Minimum Shrink Temperature (Celsius)100.0
Inner Diameter After Shrink (Imperial) UOMin
UL ApprovalYes
Adhesive MaterialNone
Maximum Operating Temperature (Celsius)135.0
Product ColorTransparent
Inner Diameter Before Shrink (Imperial) UOMin
Overall Length (Imperial) UOMft
Inner Diameter Before Shrink (Imperial)2.0
Maximum Operating Temperature (Fahrenheit)275.0
Inner Diameter After Shrink (Imperial)1.0
MaterialFlexible Polyolefin
Operating Temperature (Celsius)-55 to 135 Degrees Celsius
Maximum Operating Temperature (Fahrenheit) UOMDegree
Flame RetardantNo
Mil SpecAMS-DTL-23053/5, Class 2
Tubing TypeSingle Wall (Thin)
Non-CorrosiveYes
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Minimum Expanded Tubing I. D. UOMin
UL File NumberE-39100
Maximum Operating Temperature (Celsius) UomDegree
Minimum Expanded Tubing I. D.2.0
Inner Diameter Before Shrink (Metric)50.8
Product FormStick
Inner Diameter Before Shrink (Metric) UOMmm
Operating Temperature Range (Celsius)-55 °C to +135 °C
Overall Length (Imperial)100.0
Inner Diameter After Shrink (Metric)25.4
Heat Shrink TypeSingle-Wall Polyolefin Heat Shrink Tubing
Units per Case2.0
Elongation UOMdB
ApplicationElectrical Insulation; High-tenacity and chemically resistant tubing
Shrink Ratio2:1
