3M Products & Supplies

3M™ Heat Shrink Thin-Wall Tubing FP-301-1/8-Clear-100' : 100 ft Length per spool, 3 spools, 300 ft/case - 7100029985

Sold As: 300-Pack
SKU: 7100029985
MPN: 7100029985
For an accurate lead time please contact us
UPC: 10051135355678
3M ID: 80610752257
5 Digit UPC: 35567
$197.11 ($0.66 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Tubing FP-301 is a general purpose, thin wall tubing that provides a balance of electrical, physical and chemical properties, making it ideal for industrial and military applications. This tubing has a 2:1 shrink ratio and provides flame retardant insulation for 600V rated applications. It has a flexible polyolefin construction that offers moisture seal protection.

Features

  • FOR DEMANDING CONDITIONS: Performs at an operating temperature up to 275 °F (135 °C)
  • KEY SPECIFICATIONS: UL Listed, File E-39100, SAE AS23053/5, Class 1 (all colors), Class 2 (clear), CSA Certified, and RoHS 2011/65/EU Compliant
  • HIGH-STRENGTH PROTECTION: Balances electrical, physical, and chemical properties for various industrial and military applications
  • FLAME-RETARDANT TUBING: For applications up to 600V (clear is not flame retardant)

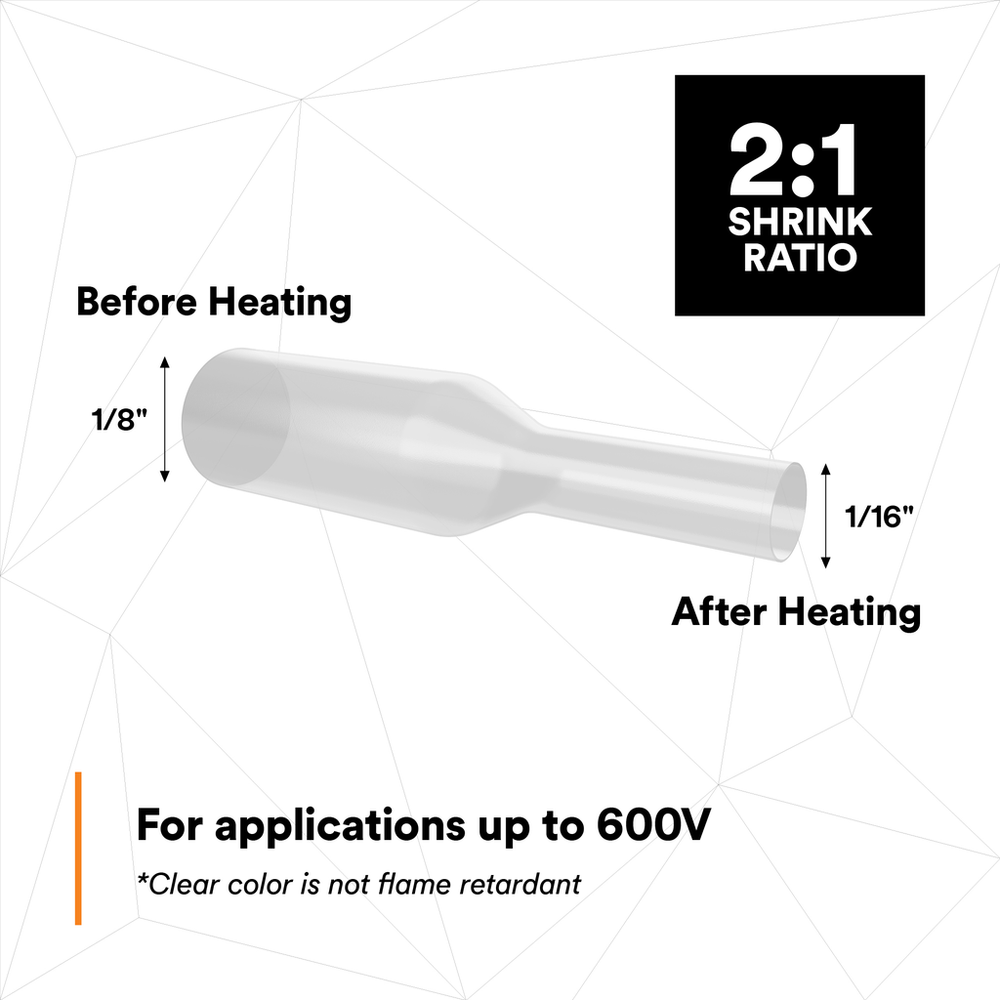

  • A VARIETY OF APPLICATIONS: Offers a 2:1 shrink-fit ratio and serves as protection in wire-harnessing, split-resistance covering, wire marking, wire bundling, and component packaging
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Adhesive MaterialNone
Overall Length (Metric)30.5
Minimum Expanded Tubing I. D. UOMin
MaterialFlexible Polyolefin
Inner Diameter Before Shrink (Imperial) UOMin
Operating Temperature Range (Fahrenheit)-67 °F to 275 °F
Inner Diameter After Shrink (Imperial)0.062
Overall Length (Imperial) UOMft
Inner Diameter Before Shrink (Imperial)0.125
ApplicationElectrical Insulation; High-tenacity and chemically resistant tubing
Product ColorTransparent
Inner Diameter After Shrink (Metric) UOMmm
Operating Temperature (Celsius)-55 to 135 Degrees Celsius
Inner Diameter Before Shrink (Metric) UOMmm
Shrink Ratio2:1
UL File NumberE-39100
Tubing TypeSingle Wall (Thin)
Maximum Operating Temperature (Fahrenheit)275.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
Minimum Expanded Tubing I. D.1.0
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Elongation UOM%
Flame RetardantNo
Non-CorrosiveYes
Minimum Shrink Temperature (Celsius)100.0
Inner Diameter After Shrink (Metric)1.57
Overall Length (Imperial)100.0
Mil SpecAMS-DTL-23053/5, Class 2
Maximum Operating Temperature (Celsius) UomDegree
Operating Temperature Range (Celsius)-55 °C to +135 °C
UL ApprovalYes
Maximum Operating Temperature (Celsius)135.0
Overall Length (Metric) UOMm
Inner Diameter Before Shrink (Metric)3.18
Units per Case3.0
Heat Shrink TypeSingle-Wall Polyolefin Heat Shrink Tubing
Inner Diameter After Shrink (Imperial) UOMin
