3M Products & Supplies

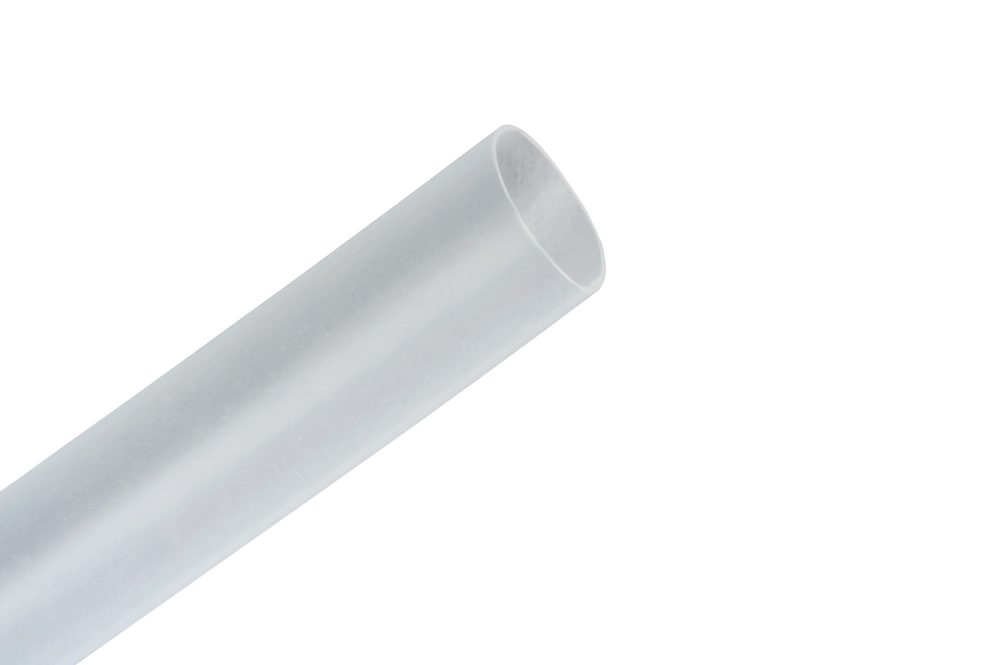

3M™ Heat Shrink Thin-Wall Tubing FP-301-3/16-48"-Clear-250 Pcs, 48 in Length sticks, 250 pieces/case - 7010350196

Sold As: 250-Pack
SKU: 7010350196
MPN: 7010350196
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051128598511
3M ID: 80611601123
5 Digit UPC: 59851
$635.43 ($2.54 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Tubing FP-301 is a general purpose, thin wall tubing that provides a balance of electrical, physical and chemical properties, making it ideal for industrial and military applications. This tubing has a 2:1 shrink ratio and provides flame retardant insulation for 600V rated applications. It has a flexible polyolefin construction that offers moisture seal protection.

Features

  • FLAME-RETARDANT TUBING: For applications up to 600V (clear is not flame retardant)
  • KEY SPECIFICATIONS: UL Listed, File E-39100, SAE AS23053/5, Class 1 (all colors), Class 2 (clear), CSA Certified, and RoHS 2011/65/EU Compliant
  • A VARIETY OF APPLICATIONS: Offers a 2:1 shrink-fit ratio and serves as protection in wire-harnessing, split-resistance covering, wire marking, wire bundling, and component packaging
  • FOR DEMANDING CONDITIONS: Performs at an operating temperature up to 275 °F (135 °C)
  • HIGH-STRENGTH PROTECTION: Balances electrical, physical, and chemical properties for various industrial and military applications
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Maximum Operating Temperature (Fahrenheit) UOMDegree
Maximum Operating Temperature (Celsius)135.0
Flame RetardantNo
Overall Length (Metric)1220.0
UL Bug Voltage600 Volt
Inner Diameter Before Shrink (Imperial)0.187
Overall Width (Metric) UOMmm
Maximum Operating Temperature (Fahrenheit)275.0
Shrink Ratio2:1
UL Bug Temperature (Fahrenheit)257 Degrees Fahrenheit
Mil SpecAMS-DTL-23053/5, Class 1
Overall Width (Metric)4.75
Tubing TypeSingle (Thin) Wall
Adhesive MaterialNone
Overall Length (Imperial) UOMin
Overall Width (Imperial)0.19
Heat Shrink TypeSingle-Wall Polyolefin Heat Shrink Tubing
Overall Length (Metric) UOMmm
Overall Width (Imperial) UOMin
Inner Diameter After Shrink (Imperial) UOMin
Minimum Expanded Tubing I. D. UOMin
Elongation UOM%
Inner Diameter Before Shrink (Imperial) UOMin
Inner Diameter Before Shrink (Metric) UOMmm
Operating Temperature (Celsius)-55 to 135 Degrees Celsius
Inner Diameter After Shrink (Metric)2.36
Operating Temperature (Fahrenheit)-67 °F to 275 °F
ApplicationElectrical Insulation; High-tenacity and chemically resistant tubing
Maximum Operating Temperature (Celsius) UomDegree
Inner Diameter After Shrink (Imperial)0.093
Inner Diameter After Shrink (Metric) UOMmm
Inner Diameter Before Shrink (Metric)4.75
Units per Case250.0
Minimum Expanded Tubing I. D.3.0
Non-CorrosiveYes
Overall Length (Imperial)48.0
MaterialPolyolefin
Product ColorTransparent
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
UL Bug Temperature (Celsius)125 Degrees Celsius
