3M Products & Supplies

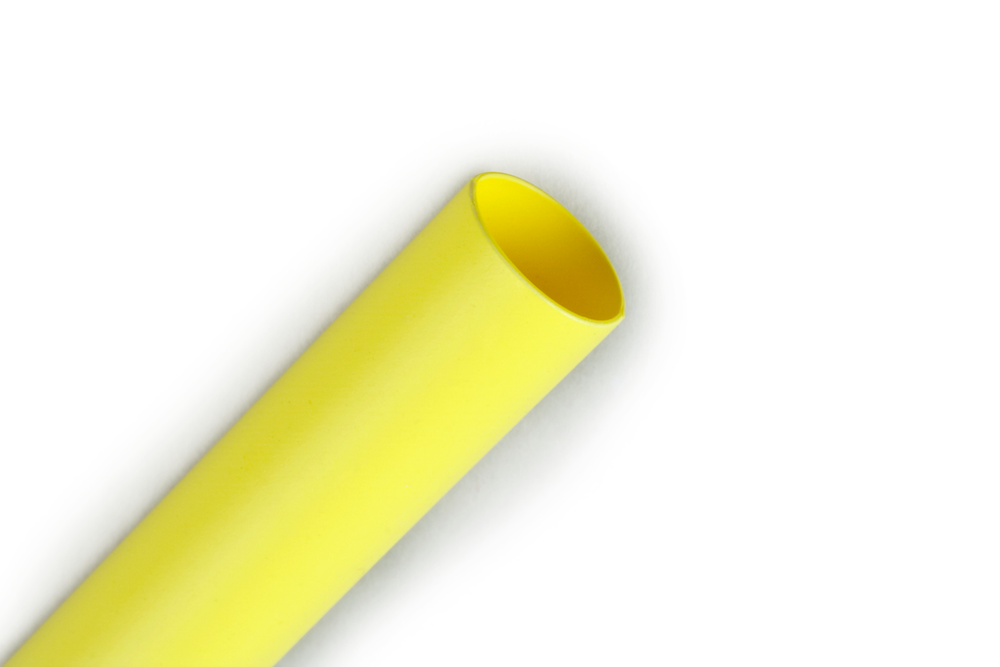

3M™ Heat Shrink Thin-Wall Tubing FP-301-3/16-48"-Yellow-250 Pcs, 48 in Length sticks, 250 pieces/case - 7010293956

Sold As: 250-Pack
SKU: 7010293956
MPN: 7010293956
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051128598344
3M ID: 80611600950
5 Digit UPC: 59834
$574.14 ($2.30 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Tubing FP-301 is a general purpose, thin wall tubing that provides a balance of electrical, physical and chemical properties, making it ideal for industrial and military applications. This tubing has a 2:1 shrink ratio and provides flame retardant insulation for 600V rated applications. It has a flexible polyolefin construction that offers moisture seal protection.

Features

  • A VARIETY OF APPLICATIONS: Offers a 2:1 shrink-fit ratio and serves as protection in wire-harnessing, split-resistance covering, wire marking, wire bundling, and component packaging
  • FLAME-RETARDANT TUBING: For applications up to 600V (clear is not flame retardant)
  • HIGH-STRENGTH PROTECTION: Balances electrical, physical, and chemical properties for various industrial and military applications
  • KEY SPECIFICATIONS: UL Listed, File E-39100, SAE AS23053/5, Class 1 (all colors), Class 2 (clear), CSA Certified, and RoHS 2011/65/EU Compliant
  • FOR DEMANDING CONDITIONS: Performs at an operating temperature up to 275 °F (135 °C)
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Elongation UOM%
Flame RetardantYes
Overall Width (Imperial)0.19
Inner Diameter Before Shrink (Imperial) UOMin
Overall Width (Metric) UOMmm
Inner Diameter After Shrink (Metric) UOMmm
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Shrink Ratio2:1
Maximum Operating Temperature (Celsius)135.0
Inner Diameter Before Shrink (Imperial)0.187
Heat Shrink TypeSingle-Wall Polyolefin Heat Shrink Tubing
Overall Length (Imperial) UOMin
Maximum Operating Temperature (Fahrenheit)275.0
ApplicationElectrical Insulation; High-tenacity and chemically resistant tubing
Maximum Operating Temperature (Fahrenheit) UOMDegree
Tubing TypeSingle (Thin) Wall
Inner Diameter Before Shrink (Metric) UOMmm
Inner Diameter Before Shrink (Metric)4.75
Minimum Expanded Tubing I. D.3.0
Inner Diameter After Shrink (Metric)2.36
Operating Temperature (Fahrenheit)-67 °F to 275 °F
Inner Diameter After Shrink (Imperial) UOMin
Non-CorrosiveYes
Overall Length (Metric)1220.0
Product ColorYellow
UL Bug Temperature (Celsius)125 Degrees Celsius
Overall Length (Imperial)48.0
MaterialPolyolefin
UL Bug Temperature (Fahrenheit)257 Degrees Fahrenheit
UL Bug Voltage600 Volt
Operating Temperature (Celsius)-55 to 135 Degrees Celsius
Inner Diameter After Shrink (Imperial)0.093
Minimum Expanded Tubing I. D. UOMin
Overall Width (Metric)4.75
Mil SpecAMS-DTL-23053/5, Class 1
Overall Length (Metric) UOMmm
Maximum Operating Temperature (Celsius) UomDegree
Overall Width (Imperial) UOMin
Adhesive MaterialNone
