3M Products & Supplies

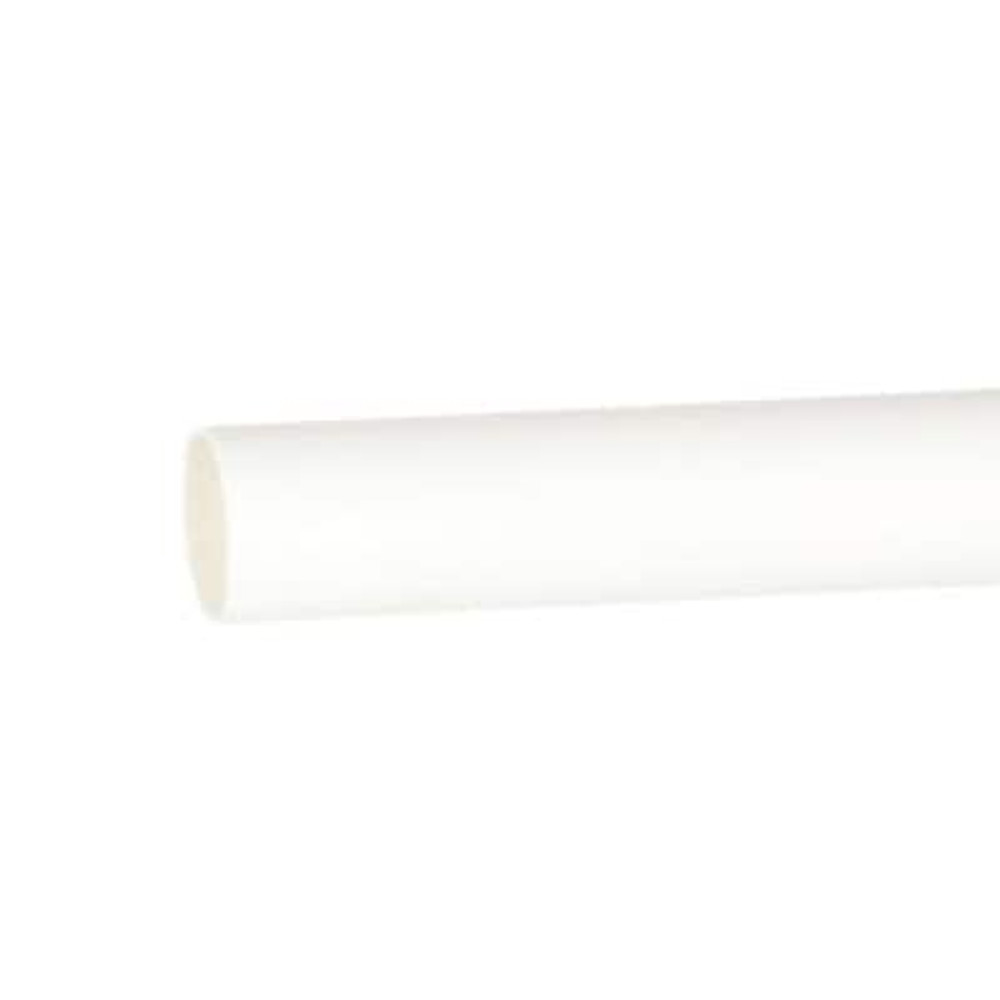

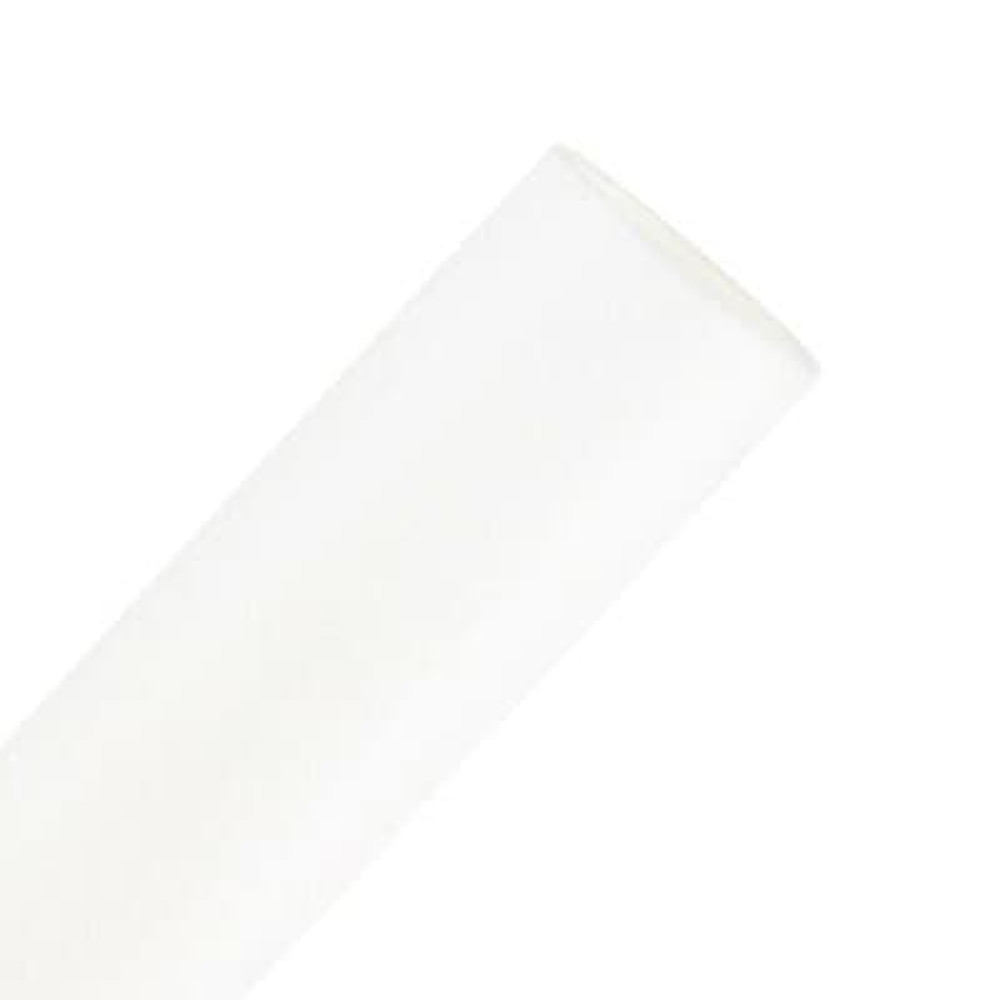

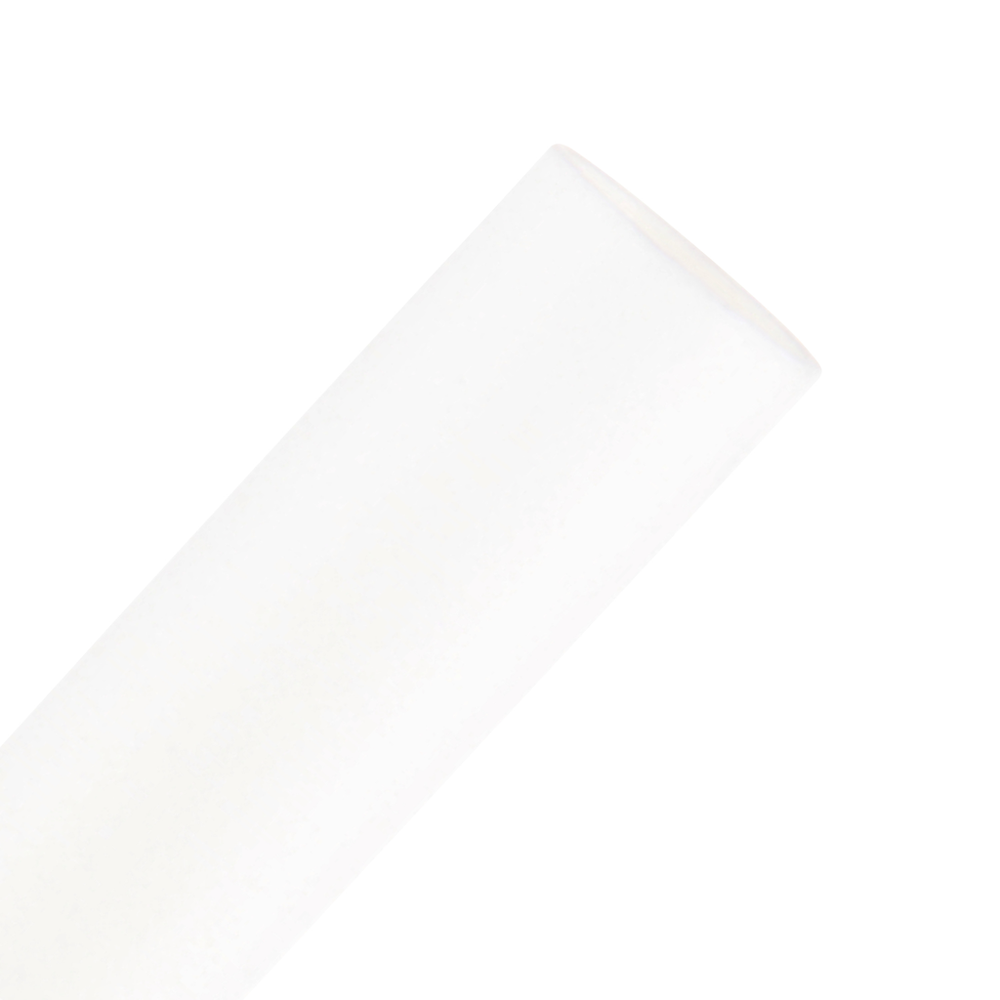

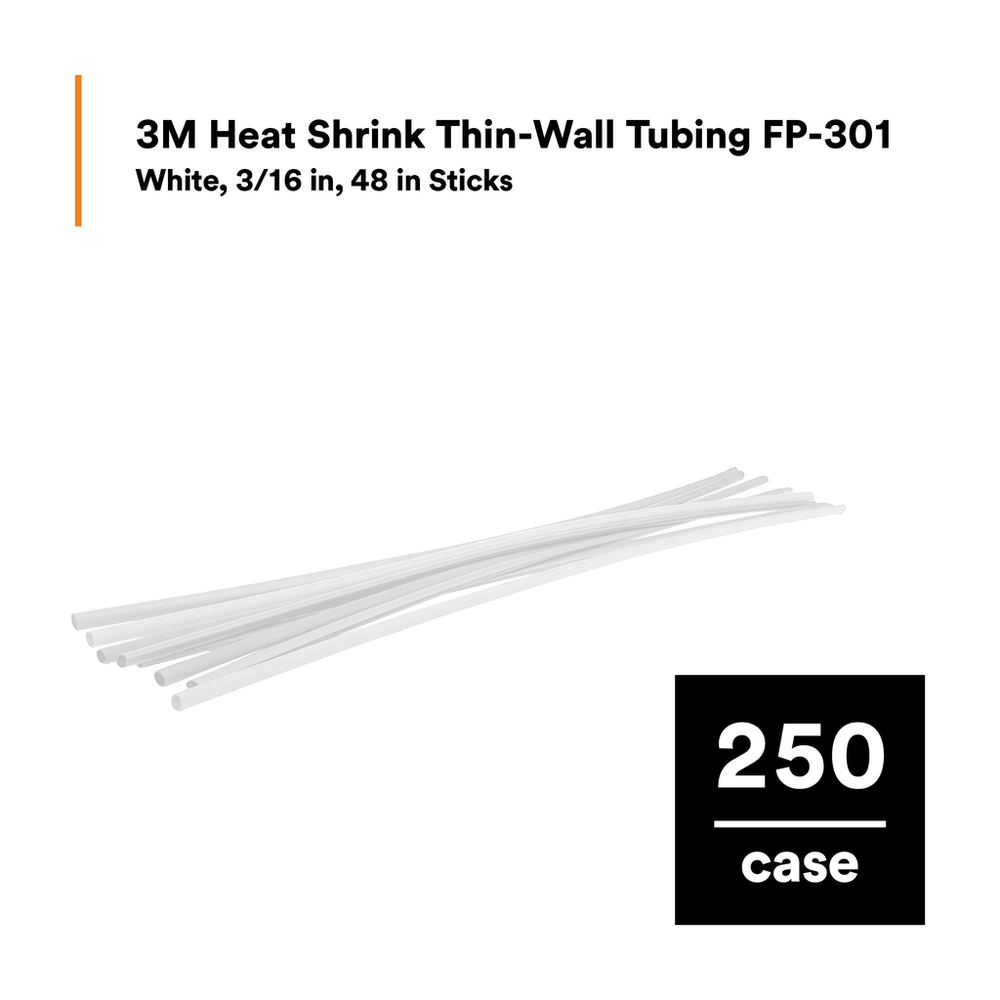

3M™ Heat Shrink Thin-Wall Tubing FP-301-3/16-48"-White-250 Pcs, 48 in Length sticks, 250 pieces/case - 7010350191

Sold As: 250-Pack
SKU: 7010350191
MPN: 7010350191
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051128598337
3M ID: 80611600943
5 Digit UPC: 59833
$635.43 ($2.54 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Tubing FP-301 is a general purpose, thin wall tubing that provides a balance of electrical, physical and chemical properties, making it ideal for industrial and military applications. This tubing has a 2:1 shrink ratio and provides flame retardant insulation for 600V rated applications. It has a flexible polyolefin construction that offers moisture seal protection.

Features

  • KEY SPECIFICATIONS: UL Listed, File E-39100, SAE AS23053/5, Class 1 (all colors), Class 2 (clear), CSA Certified, and RoHS 2011/65/EU Compliant
  • FOR DEMANDING CONDITIONS: Performs at an operating temperature up to 275 °F (135 °C)
  • HIGH-STRENGTH PROTECTION: Balances electrical, physical, and chemical properties for various industrial and military applications
  • FLAME-RETARDANT TUBING: For applications up to 600V (clear is not flame retardant)

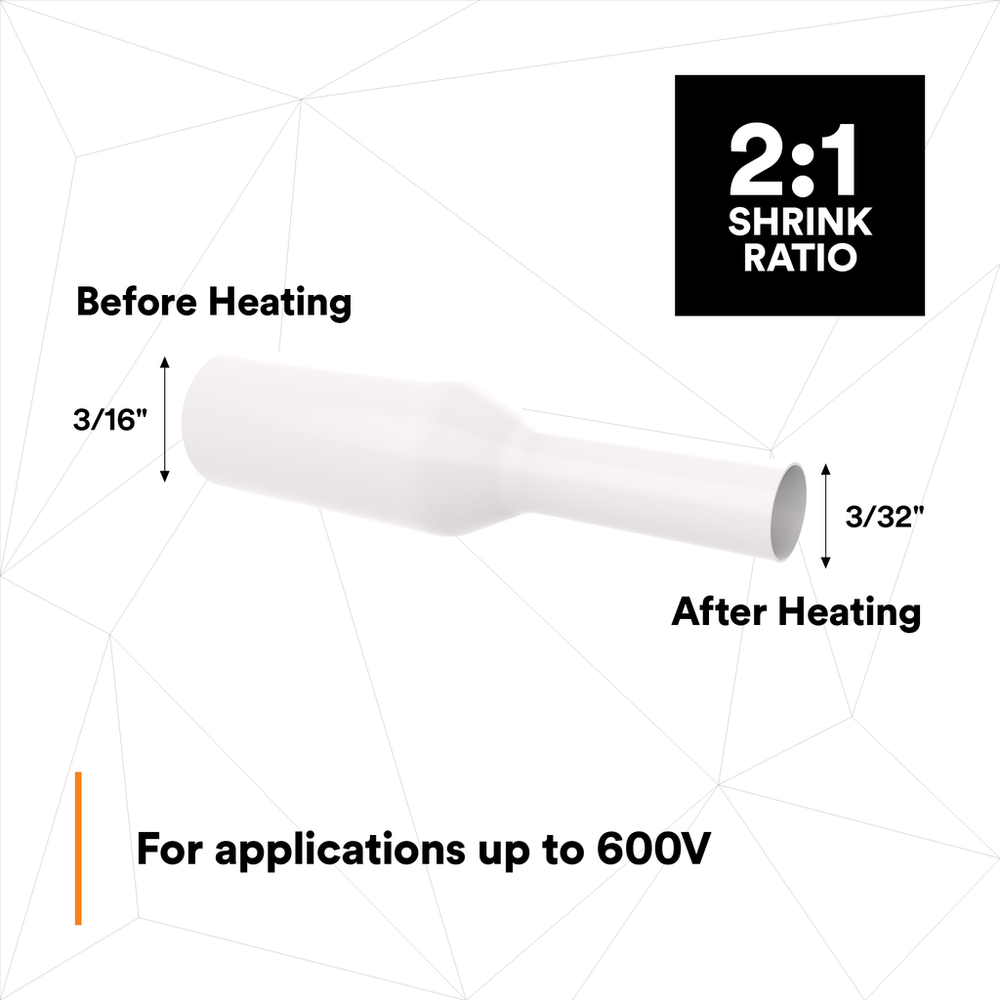

  • A VARIETY OF APPLICATIONS: Offers a 2:1 shrink-fit ratio and serves as protection in wire-harnessing, split-resistance covering, wire marking, wire bundling, and component packaging
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Operating Temperature (Fahrenheit)-67 °F to 275 °F
Inner Diameter After Shrink (Imperial) UOMin
Overall Width (Imperial)0.19
Non-CorrosiveYes
Maximum Operating Temperature (Fahrenheit)275.0
Adhesive MaterialNone
Heat Shrink TypeSingle-Wall Polyolefin Heat Shrink Tubing
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Mil SpecAMS-DTL-23053/5, Class 1
UL Bug Temperature (Celsius)125 Degrees Celsius
Operating Temperature (Celsius)-55 to 135 Degrees Celsius
Overall Length (Metric) UOMmm
Inner Diameter Before Shrink (Metric)4.75
MaterialPolyolefin
Tubing TypeSingle (Thin) Wall
Maximum Operating Temperature (Celsius)135.0
Overall Length (Metric)1220.0
Overall Width (Metric) UOMmm
Inner Diameter Before Shrink (Imperial)0.187
Inner Diameter Before Shrink (Imperial) UOMin
Maximum Operating Temperature (Celsius) UomDegree
Inner Diameter Before Shrink (Metric) UOMmm
Maximum Operating Temperature (Fahrenheit) UOMDegree
Minimum Expanded Tubing I. D.3.0
Overall Width (Imperial) UOMin
Inner Diameter After Shrink (Metric) UOMmm
Overall Length (Imperial)48.0
ApplicationElectrical Insulation; High-tenacity and chemically resistant tubing
Shrink Ratio2:1
Flame RetardantYes
UL Bug Temperature (Fahrenheit)257 Degrees Fahrenheit
Product ColorWhite
Overall Length (Imperial) UOMin
Minimum Expanded Tubing I. D. UOMin
UL Bug Voltage600 Volt
Overall Width (Metric)4.75
Inner Diameter After Shrink (Imperial)0.093
Inner Diameter After Shrink (Metric)2.36
Elongation UOM%
