3M Products & Supplies

3M™ Heat Shrink Thin-Wall Tubing FP-301-3/16-Green-250", 250 ft Length, 3 Rolls/Case - 7100020133

Sold As: 1500-Pack
SKU: 7100020133
MPN: 7100020133
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007088400
3M ID: 80610228993
5 Digit UPC: 8840
$881.45 ($0.59 / Count)
Hurry up! Current stock:

Product Description

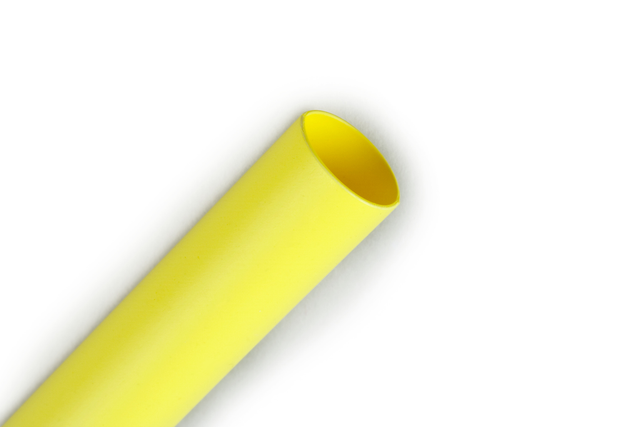

3M™ Heat Shrink Tubing FP-301 is a general purpose, thin wall tubing that provides a balance of electrical, physical and chemical properties, making it ideal for industrial and military applications. This tubing has a 2:1 shrink ratio and provides flame retardant insulation for 600V rated applications. It has a flexible polyolefin construction that offers moisture seal protection.

Features

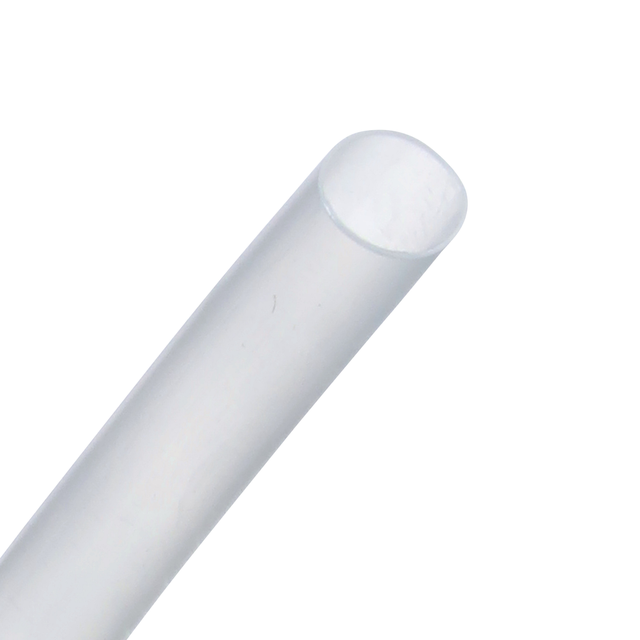

  • FLAME-RETARDANT TUBING: For applications up to 600V (clear is not flame retardant)
  • KEY SPECIFICATIONS: UL Listed, File E-39100, SAE AS23053/5, Class 1 (all colors), Class 2 (clear), CSA Certified, and RoHS 2011/65/EU Compliant

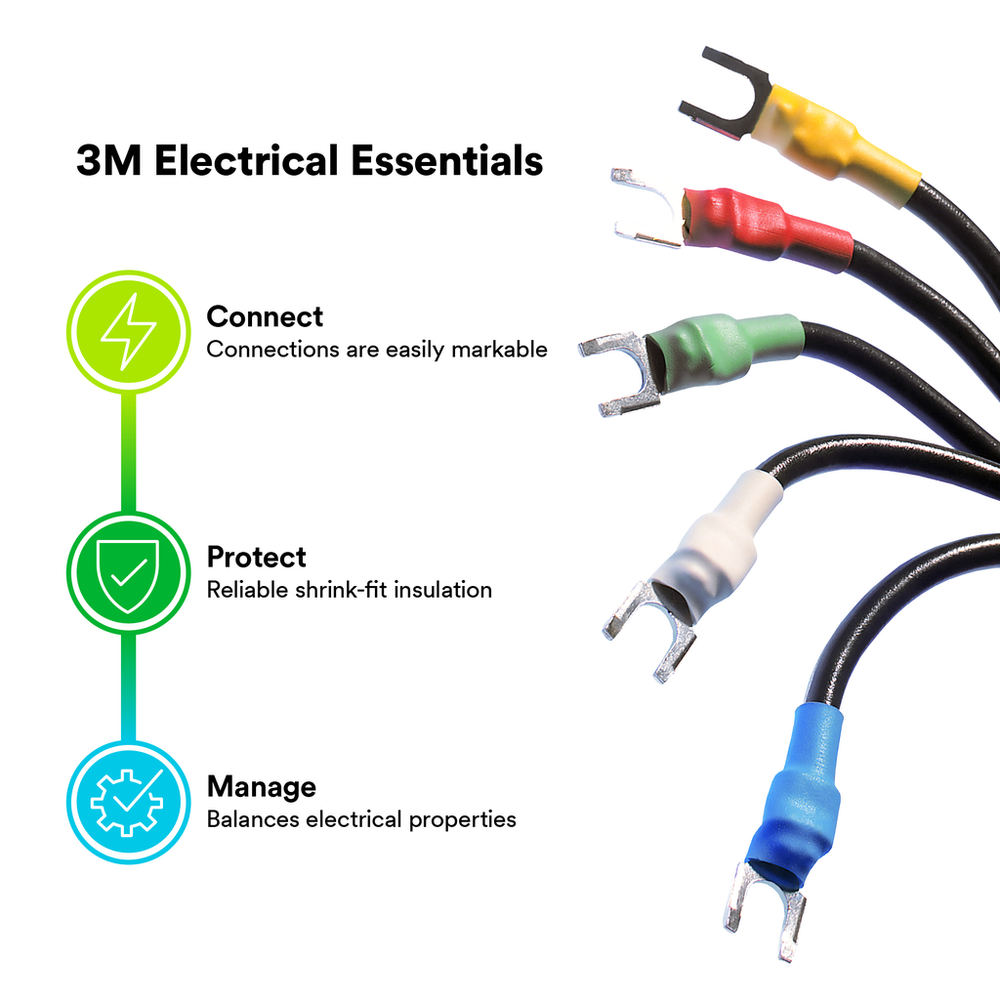

  • A VARIETY OF APPLICATIONS: Offers a 2:1 shrink-fit ratio and serves as protection in wire-harnessing, split-resistance covering, wire marking, wire bundling, and component packaging
  • FOR DEMANDING CONDITIONS: Performs at an operating temperature up to 275 °F (135 °C)
  • HIGH-STRENGTH PROTECTION: Balances electrical, physical, and chemical properties for various industrial and military applications
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Mil SpecAMS-DTL-23053/5, Class 1
Maximum Operating Temperature (Fahrenheit) UOMDegree
Overall Length (Imperial) UOMft
Inner Diameter After Shrink (Imperial) UOMin
Heat Shrink TypeSingle-Wall Polyolefin Heat Shrink Tubing
Non-CorrosiveYes
UL File NumberE-39100
Minimum Expanded Tubing I. D. UOMin
Overall Length (Imperial)250.0
Inner Diameter Before Shrink (Imperial)0.187
Minimum Expanded Tubing I. D.3.0
Inner Diameter After Shrink (Metric)2.36
Operating Temperature (Celsius)-55 to 135 Degrees Celsius
Product FormStick
Inner Diameter After Shrink (Imperial)0.093
Product ColorGreen
MaterialFlexible Polyolefin
Minimum Shrink Temperature (Celsius)100.0
Operating Temperature Range (Celsius)-55 °C to +135 °C
Inner Diameter After Shrink (Metric) UOMmm
Inner Diameter Before Shrink (Metric) UOMmm
Inner Diameter Before Shrink (Imperial) UOMin
Elongation UOMdB
Maximum Operating Temperature (Fahrenheit)275.0
Inner Diameter Before Shrink (Metric)4.75
Shrink Ratio2:1
Maximum Operating Temperature (Celsius) UomDegree
Maximum Operating Temperature (Celsius)135.0
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Flame RetardantYes
UL ApprovalYes
Operating Temperature Range (Fahrenheit)-67 °F to 275 °F
Adhesive MaterialNone
Tubing TypeSingle Wall (Thin)
ApplicationElectrical Insulation; High-tenacity and chemically resistant tubing
