3M Products & Supplies

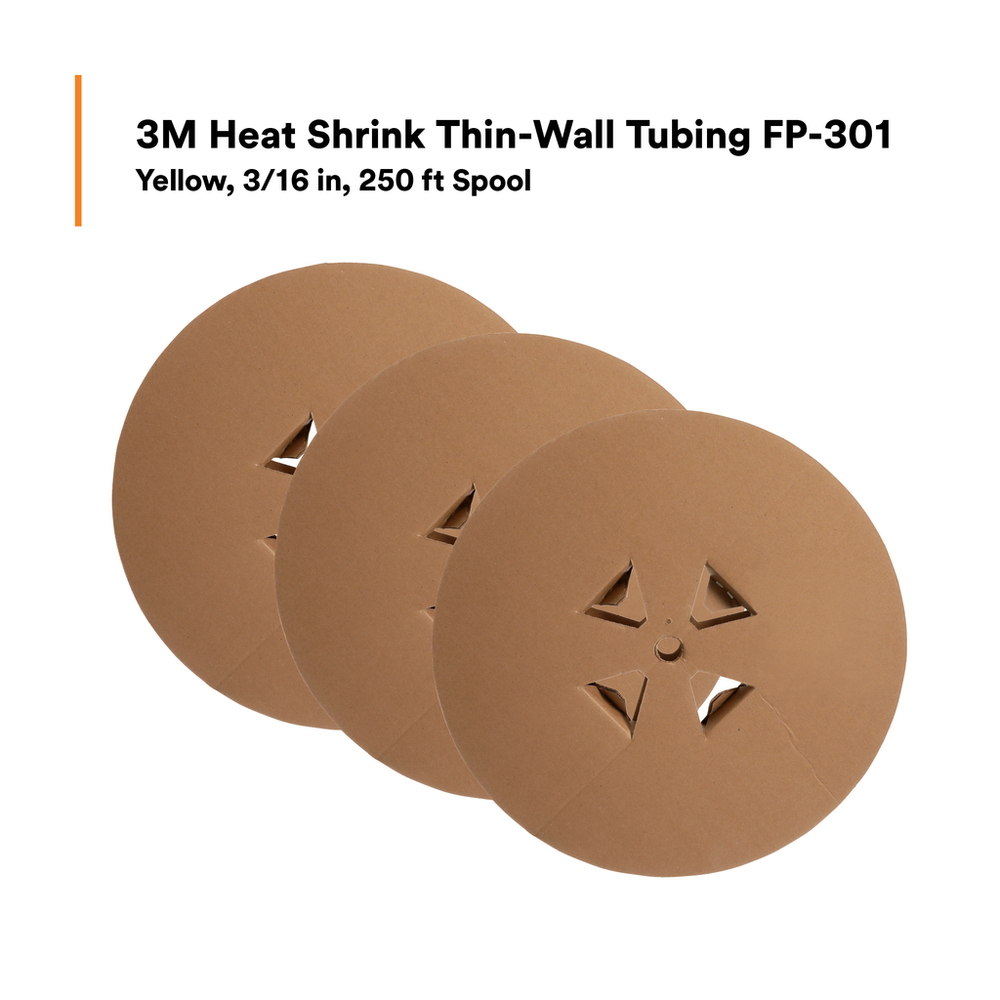

3M™ Heat Shrink Thin-Wall Tubing FP-301-3/16-Yellow-250`: 250 ft spool length, 750 linear ft/box, 3 Rolls/Case - 7100020131

Sold As: 1500-Pack
SKU: 7100020131
MPN: 7100020131
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007084846
3M ID: 80-6102-1952-1
5 Digit UPC: 8484
$850.80 ($0.57 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Tubing FP-301 is a general purpose, thin wall tubing that provides a balance of electrical, physical and chemical properties, making it ideal for industrial and military applications. This tubing has a 2:1 shrink ratio and provides flame retardant insulation for 600V rated applications. It has a flexible polyolefin construction that offers moisture seal protection.

Features

  • FLAME-RETARDANT TUBING: For applications up to 600V (clear is not flame retardant)

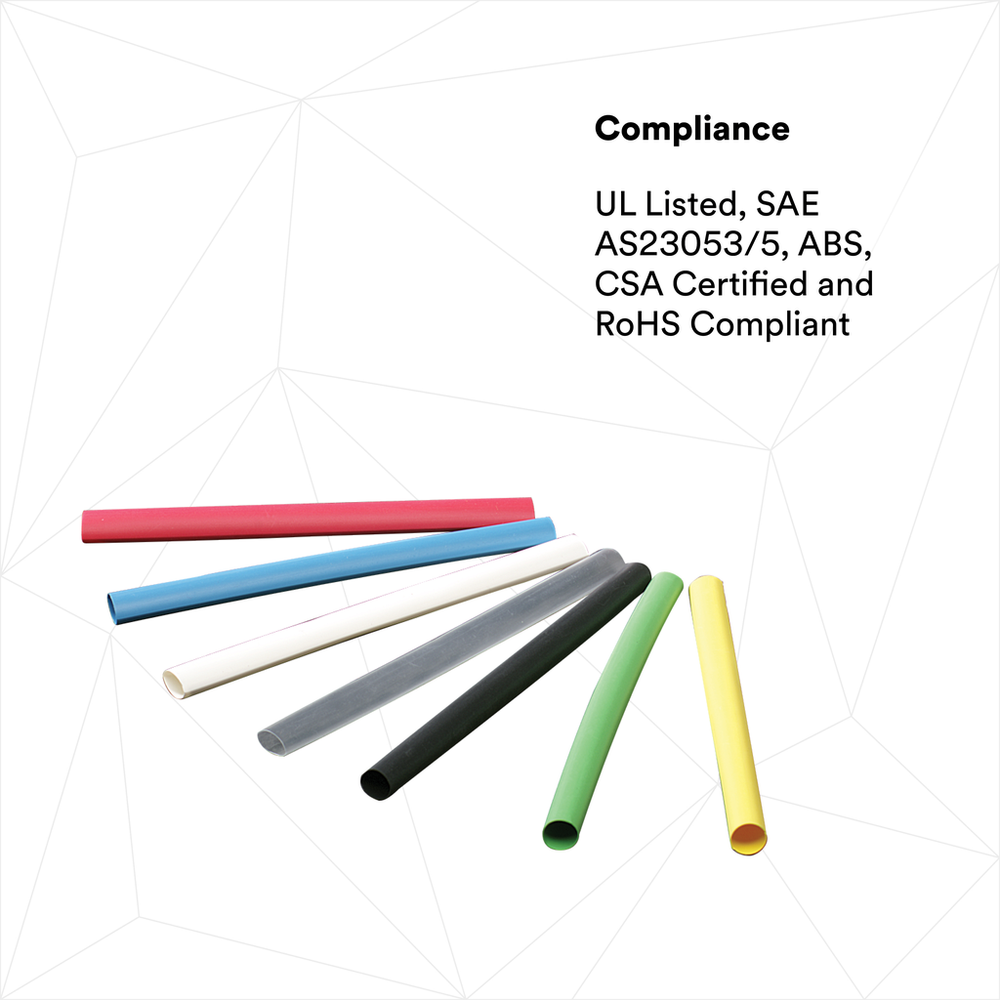

  • KEY SPECIFICATIONS: UL Listed, File E-39100, SAE AS23053/5, Class 1 (all colors), Class 2 (clear), CSA Certified, and RoHS 2011/65/EU Compliant
  • FOR DEMANDING CONDITIONS: Performs at an operating temperature up to 275 °F (135 °C)
  • A VARIETY OF APPLICATIONS: Offers a 2:1 shrink-fit ratio and serves as protection in wire-harnessing, split-resistance covering, wire marking, wire bundling, and component packaging
  • HIGH-STRENGTH PROTECTION: Balances electrical, physical, and chemical properties for various industrial and military applications
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Heat Shrink TypeSingle-Wall Polyolefin Heat Shrink Tubing
ApplicationElectrical Insulation; High-tenacity and chemically resistant tubing
Maximum Operating Temperature (Celsius)135.0
Operating Temperature Range (Celsius)-55 °C to +135 °C
Inner Diameter After Shrink (Metric)2.36
Minimum Shrink Temperature (Celsius)100.0
Operating Temperature (Celsius)-55 to 135 Degrees Celsius
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Overall Length (Imperial)250.0
Adhesive MaterialNone
Operating Temperature Range (Fahrenheit)-67 °F to 275 °F
Inner Diameter Before Shrink (Metric) UOMmm
Tubing TypeSingle Wall (Thin)
Maximum Operating Temperature (Fahrenheit)275.0
Inner Diameter Before Shrink (Metric)4.75
Product ColorYellow
Inner Diameter After Shrink (Imperial) UOMin
Non-CorrosiveYes
Mil SpecAMS-DTL-23053/5, Class 1
Inner Diameter After Shrink (Imperial)0.093
Flame RetardantYes
MaterialFlexible Polyolefin
Overall Length (Imperial) UOMft
Minimum Expanded Tubing I. D.3.0
Minimum Expanded Tubing I. D. UOMin
Maximum Operating Temperature (Fahrenheit) UOMDegree
Inner Diameter Before Shrink (Imperial) UOMin
Shrink Ratio2:1
UL File NumberE-39100
Inner Diameter Before Shrink (Imperial)0.187
Maximum Operating Temperature (Celsius) UomDegree
UL ApprovalYes
Product FormStick
Inner Diameter After Shrink (Metric) UOMmm
Elongation UOM%
