3M Products & Supplies

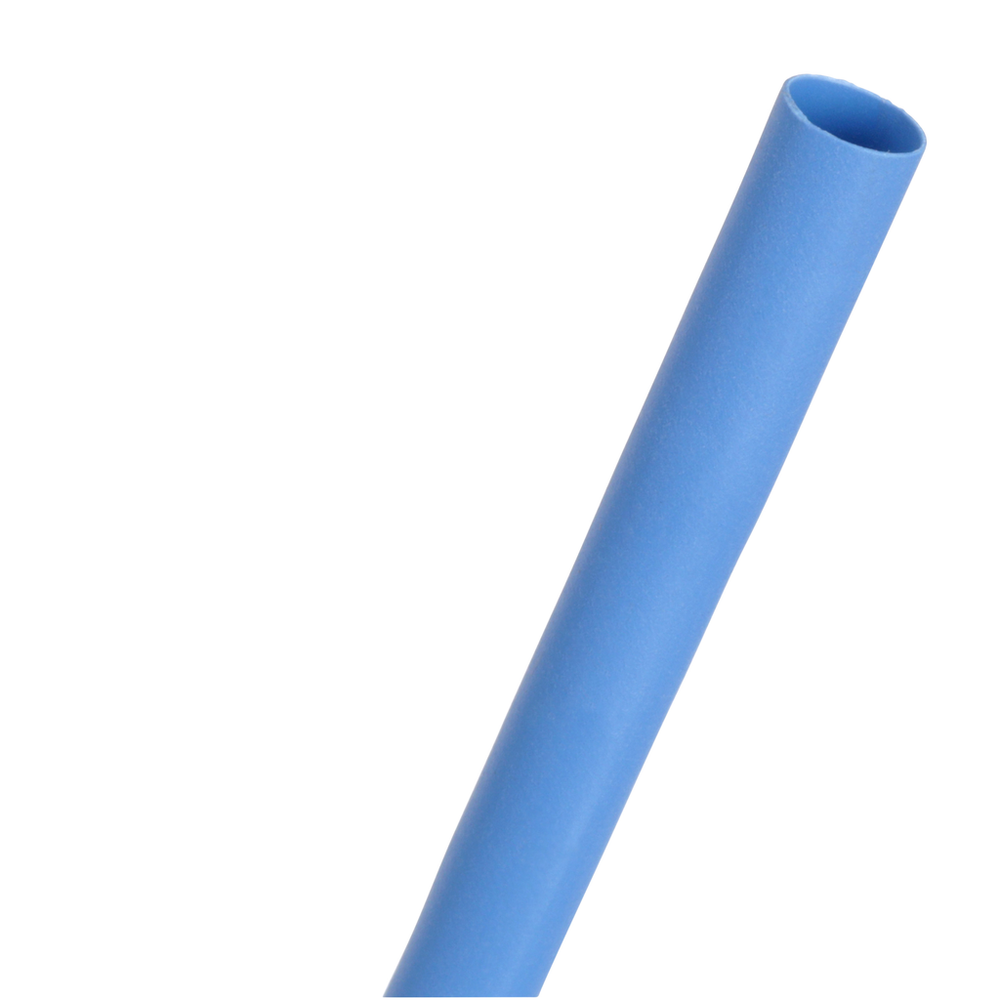

3M™ Heat Shrink Thin-Wall Tubing FP-301-3/16-Blue-250`: 250 ft spool length, 750 linear ft/box, 3 Rolls/Case - 7010305530

Sold As: 750-Pack
SKU: 7010305530
MPN: 7010305530
For an accurate lead time please contact us
UPC: 00054007084808
3M ID: 80610219489
5 Digit UPC: 8480
$435.23 ($0.58 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Tubing FP-301 is a general purpose, thin wall tubing that provides a balance of electrical, physical and chemical properties, making it ideal for industrial and military applications. This tubing has a 2:1 shrink ratio and provides flame retardant insulation for 600V rated applications. It has a flexible polyolefin construction that offers moisture seal protection.

Features

  • A VARIETY OF APPLICATIONS: Offers a 2:1 shrink-fit ratio and serves as protection in wire-harnessing, split-resistance covering, wire marking, wire bundling, and component packaging
  • KEY SPECIFICATIONS: UL Listed, File E-39100, SAE AS23053/5, Class 1 (all colors), Class 2 (clear), CSA Certified, and RoHS 2011/65/EU Compliant
  • HIGH-STRENGTH PROTECTION: Balances electrical, physical, and chemical properties for various industrial and military applications
  • FOR DEMANDING CONDITIONS: Performs at an operating temperature up to 275 °F (135 °C)
  • FLAME-RETARDANT TUBING: For applications up to 600V (clear is not flame retardant)
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Adhesive MaterialNone
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Inner Diameter Before Shrink (Imperial)0.187
Maximum Operating Temperature (Celsius) UomDegree
Non-CorrosiveYes
Inner Diameter After Shrink (Imperial)0.093
Maximum Operating Temperature (Fahrenheit) UOMDegree
Tubing TypeSingle (Thin) Wall
Shrink Ratio2:1
Inner Diameter Before Shrink (Imperial) UOMin
Inner Diameter After Shrink (Metric) UOMmm
Maximum Operating Temperature (Celsius)135.0
Minimum Expanded Tubing I. D.3.0
Inner Diameter Before Shrink (Metric) UOMmm
Elongation UOM%
Operating Temperature (Celsius)-55 to 135 Degrees Celsius
Maximum Operating Temperature (Fahrenheit)275.0
Overall Length (Imperial)250.0
ApplicationElectrical Insulation; High-tenacity and chemically resistant tubing
Mil SpecAMS-DTL-23053/5, Class 1
UL File NumberE-39100
Heat Shrink TypeSingle-Wall Polyolefin Heat Shrink Tubing
Overall Length (Imperial) UOMft
Inner Diameter After Shrink (Metric)2.36
Minimum Expanded Tubing I. D. UOMin
Inner Diameter After Shrink (Imperial) UOMin
Flame RetardantYes
Product ColorBlue
Inner Diameter Before Shrink (Metric)4.75
