3M Products & Supplies

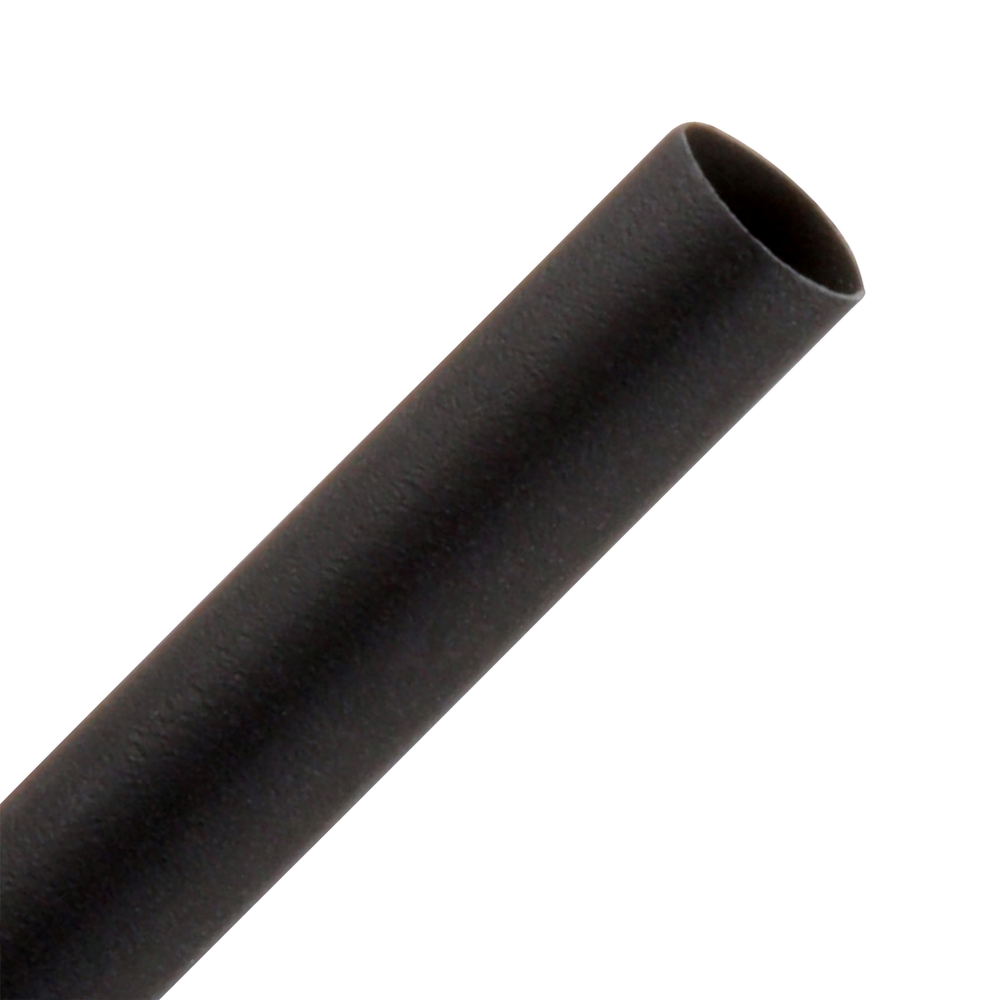

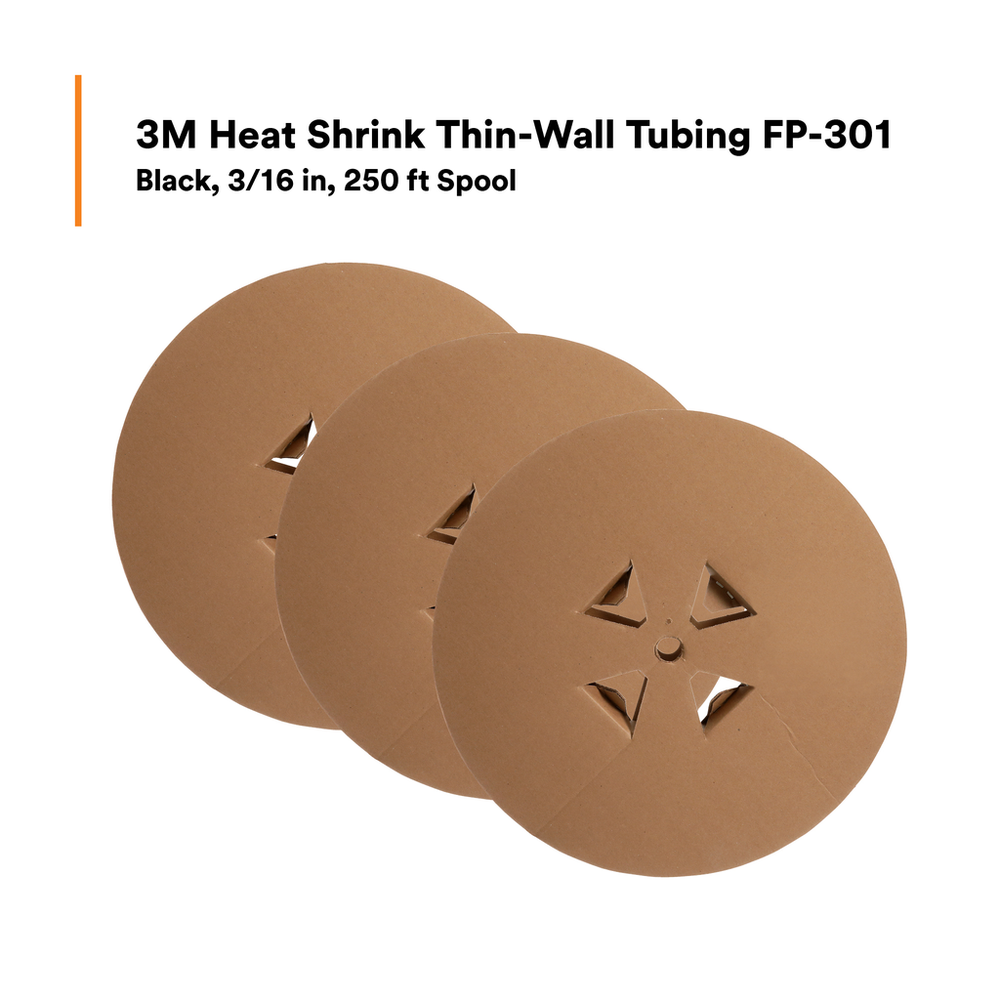

3M™ Heat Shrink Thin-Wall Tubing FP-301-3/16-Black-250`: 250 ft spool length, 750 linear ft/box, 3 Rolls/Case - 7100025153

Sold As: 750-Pack
SKU: 7100025153
MPN: 7100025153
Stock Item: Stock items typically ship within 2-3 business days
UPC: 30054007084786
3M ID: 80610219463
5 Digit UPC: 8478
$429.06 ($0.57 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Tubing FP-301 is a general purpose, thin wall tubing that provides a balance of electrical, physical and chemical properties, making it ideal for industrial and military applications. This tubing has a 2:1 shrink ratio and provides flame retardant insulation for 600V rated applications. It has a flexible polyolefin construction that offers moisture seal protection.

Features

  • KEY SPECIFICATIONS: UL Listed, File E-39100, SAE AS23053/5, Class 1 (all colors), Class 2 (clear), CSA Certified, and RoHS 2011/65/EU Compliant
  • FOR DEMANDING CONDITIONS: Performs at an operating temperature up to 275 °F (135 °C)
  • FLAME-RETARDANT TUBING: For applications up to 600V (clear is not flame retardant)
  • HIGH-STRENGTH PROTECTION: Balances electrical, physical, and chemical properties for various industrial and military applications
  • A VARIETY OF APPLICATIONS: Offers a 2:1 shrink-fit ratio and serves as protection in wire-harnessing, split-resistance covering, wire marking, wire bundling, and component packaging
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Inner Diameter Before Shrink (Metric)4.75
Inner Diameter After Shrink (Imperial)0.093
Maximum Operating Temperature (Fahrenheit)275.0
Operating Temperature Range (Celsius)-55 °C to +135 °C
Elongation UOMdB
Overall Length (Imperial) UOMft
Product FormStick
Product ColorBlack
Heat Shrink TypeSingle-Wall Polyolefin Heat Shrink Tubing
Inner Diameter Before Shrink (Metric) UOMmm
Inner Diameter After Shrink (Imperial) UOMin
Adhesive MaterialNone
Inner Diameter Before Shrink (Imperial) UOMin
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Minimum Expanded Tubing I. D.3.0
Inner Diameter After Shrink (Metric)2.36
Flame RetardantYes
Inner Diameter Before Shrink (Imperial)0.187
UL File NumberE-39100
Shrink Ratio2:1
Maximum Operating Temperature (Celsius)135.0
Non-CorrosiveYes
MaterialFlexible Polyolefin
ApplicationElectrical Insulation; High-tenacity and chemically resistant tubing
Tubing TypeSingle Wall (Thin)
Maximum Operating Temperature (Fahrenheit) UOMDegree
Operating Temperature (Celsius)-55 to 135 Degrees Celsius
Maximum Operating Temperature (Celsius) UomDegree
Units per Case3.0
Mil SpecAMS-DTL-23053/5, Class 1
Overall Length (Imperial)250.0
Inner Diameter After Shrink (Metric) UOMmm
Operating Temperature Range (Fahrenheit)-67 °F to 275 °F
Minimum Expanded Tubing I. D. UOMin
UL ApprovalYes
Minimum Shrink Temperature (Celsius)100.0
