3M Products & Supplies

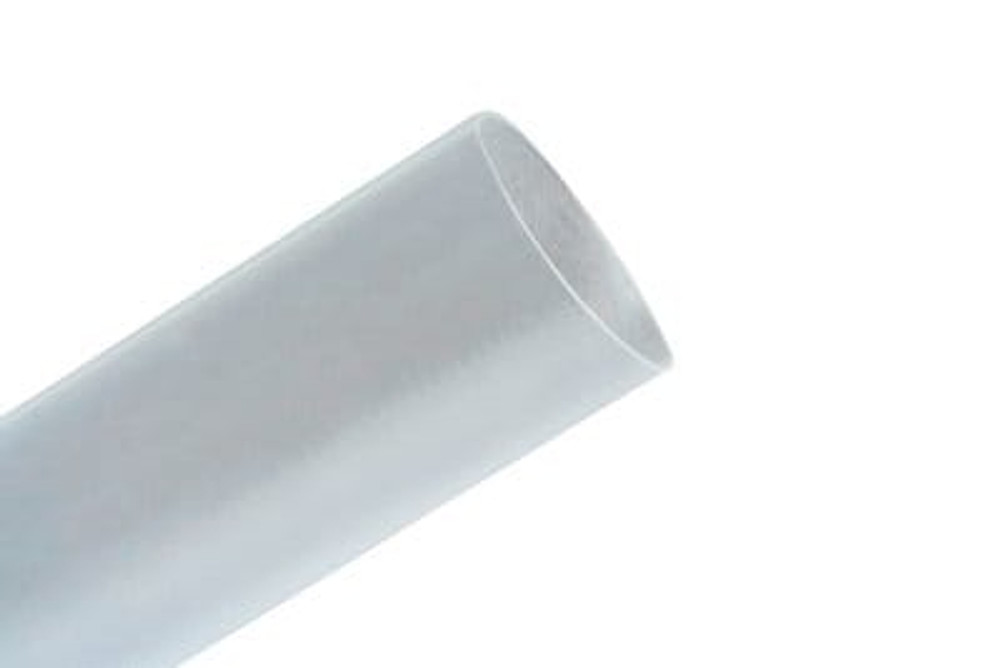

3M™ Heat Shrink Thin-Wall Tubing FP-301-3/64-48"-Clear-25 Pcs, 48 in Length sticks, 25 pieces/case - 7000133628

Sold As: 25-Pack
SKU: 7000133628
MPN: 7000133628
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051128599617
3M ID: 80611602220
5 Digit UPC: 59961
$65.59 ($2.62 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Tubing FP-301 is a general purpose, thin wall tubing that provides a balance of electrical, physical and chemical properties, making it ideal for industrial and military applications. This tubing has a 2:1 shrink ratio and provides flame retardant insulation for 600V rated applications. It has a flexible polyolefin construction that offers moisture seal protection.

Features

  • KEY SPECIFICATIONS: UL Listed, File E-39100, SAE AS23053/5, Class 1 (all colors), Class 2 (clear), CSA Certified, and RoHS 2011/65/EU Compliant
  • HIGH-STRENGTH PROTECTION: Balances electrical, physical, and chemical properties for various industrial and military applications
  • FOR DEMANDING CONDITIONS: Performs at an operating temperature up to 275 °F (135 °C)
  • FLAME-RETARDANT TUBING: For applications up to 600V (clear is not flame retardant)
  • A VARIETY OF APPLICATIONS: Offers a 2:1 shrink-fit ratio and serves as protection in wire-harnessing, split-resistance covering, wire marking, wire bundling, and component packaging
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Minimum Expanded Tubing I. D. UOMin
Inner Diameter Before Shrink (Imperial)0.046
Overall Width (Imperial) UOMin
Overall Length (Imperial) UOMin
ApplicationElectrical Insulation; High-tenacity and chemically resistant tubing
Maximum Operating Temperature (Celsius)135.0
Inner Diameter Before Shrink (Metric)1.17
Operating Temperature Range (Fahrenheit)-67 °F to 275 °F
Operating Temperature (Celsius)-55 to 135 Degrees Celsius
Adhesive MaterialNone
Operating Temperature Range (Celsius)-55 °C to +135 °C
Inner Diameter Before Shrink (Metric) UOMmm
Operating Temperature (Fahrenheit)-67 °F to 275 °F
Overall Length (Imperial)48.0
Inner Diameter After Shrink (Metric)0.58
Heat Shrink TypeSingle-Wall Polyolefin Heat Shrink Tubing
UL ApprovalYes
Flame RetardantNo
Overall Width (Metric) UOMmm
Inner Diameter Before Shrink (Imperial) UOMin
Mil SpecAMS-DTL-23053/5, Class 1
MaterialPolyolefin
Minimum Shrink Temperature (Celsius)100.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
Inner Diameter After Shrink (Imperial) UOMin
Minimum Expanded Tubing I. D.3.0
Inner Diameter After Shrink (Imperial)0.023
Tubing TypeSingle Wall (Thin)
UL Bug Temperature (Fahrenheit)257 Degrees Fahrenheit
Elongation UOM%
Maximum Operating Temperature (Celsius) UomDegree
Maximum Operating Temperature (Fahrenheit)275.0
Shrink Ratio2:1
UL Bug Temperature (Celsius)125 Degrees Celsius
Overall Length (Metric) UOMmm
Overall Length (Metric)1220.0
UL Bug Voltage600 Volt
Overall Width (Imperial)0.05
Non-CorrosiveYes
Units per Case25.0
Overall Width (Metric)1.17
Product ColorTransparent
Inner Diameter After Shrink (Metric) UOMmm
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
