3M Products & Supplies

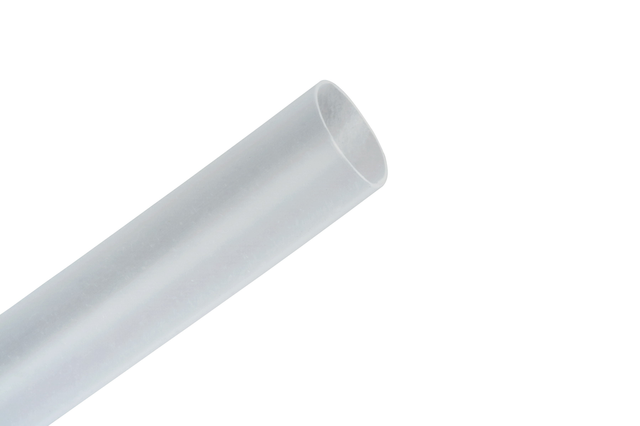

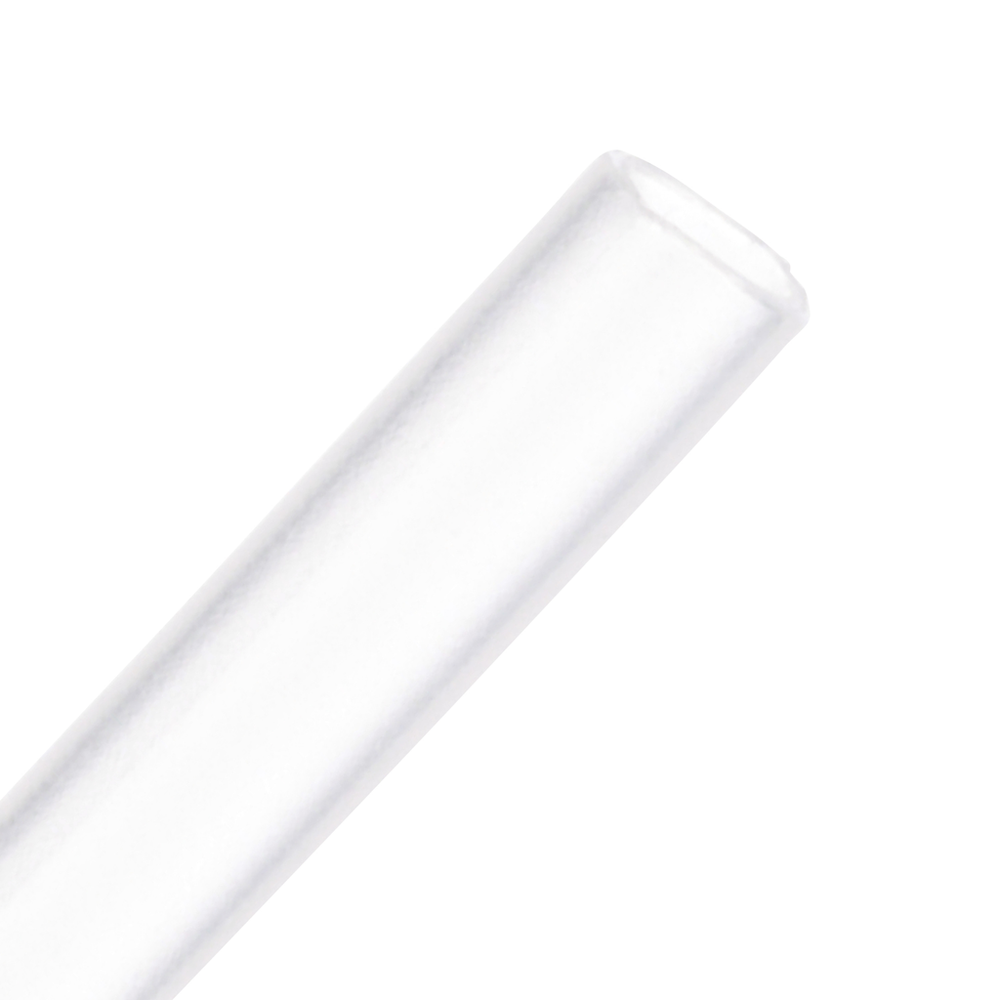

3M™ Heat Shrink Thin-Wall Tubing FP-301-1/16-48"-Clear-25 Pcs, 48 in Length sticks, 25 pieces/case - 7000133630

Sold As: 25-Pack
SKU: 7000133630
MPN: 7000133630
For an accurate lead time please contact us
UPC: 00051128599662
3M ID: 80611602279
5 Digit UPC: 59966
$72.74 ($2.91 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Tubing FP-301 is a general purpose, thin wall tubing that provides a balance of electrical, physical and chemical properties, making it ideal for industrial and military applications. This tubing has a 2:1 shrink ratio and provides flame retardant insulation for 600V rated applications. It has a flexible polyolefin construction that offers moisture seal protection.

Features

  • KEY SPECIFICATIONS: UL Listed, File E-39100, SAE AS23053/5, Class 1 (all colors), Class 2 (clear), CSA Certified, and RoHS 2011/65/EU Compliant
  • FOR DEMANDING CONDITIONS: Performs at an operating temperature up to 275 °F (135 °C)
  • HIGH-STRENGTH PROTECTION: Balances electrical, physical, and chemical properties for various industrial and military applications
  • A VARIETY OF APPLICATIONS: Offers a 2:1 shrink-fit ratio and serves as protection in wire-harnessing, split-resistance covering, wire marking, wire bundling, and component packaging
  • FLAME-RETARDANT TUBING: For applications up to 600V (clear is not flame retardant)
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Elongation UOMdB
Overall Width (Imperial) UOMin
Inner Diameter Before Shrink (Metric) UOMmm
MaterialPolyolefin
ApplicationElectrical Insulation; High-tenacity and chemically resistant tubing
Flame RetardantNo
Inner Diameter After Shrink (Imperial)0.031
Overall Length (Metric)1220.0
Minimum Expanded Tubing I. D. UOMin
Adhesive MaterialNone
Minimum Shrink Temperature (Celsius)100.0
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Operating Temperature Range (Celsius)-55 °C to +135 °C
Operating Temperature Range (Fahrenheit)-67 °F to 275 °F
Inner Diameter Before Shrink (Imperial)0.063
Minimum Expanded Tubing I. D.0.063
Overall Length (Imperial) UOMin
Overall Length (Metric) UOMmm
UL Bug Temperature (Fahrenheit)257 Degrees Fahrenheit
Product ColorTransparent
Maximum Operating Temperature (Fahrenheit) UOMDegree
Operating Temperature (Fahrenheit)-67 °F to 275 °F
Shrink Ratio2:1
UL Bug Voltage600 Volt
Non-CorrosiveYes
Units per Case25.0
Maximum Operating Temperature (Celsius) UomDegree
Overall Width (Metric) UOMmm
Overall Width (Imperial)0.06
Inner Diameter After Shrink (Imperial) UOMin
Inner Diameter Before Shrink (Metric)1.6
Operating Temperature (Celsius)-55 to 135 Degrees Celsius
Overall Length (Imperial)48.0
Inner Diameter Before Shrink (Imperial) UOMin
Inner Diameter After Shrink (Metric) UOMmm
UL Bug Temperature (Celsius)125 Degrees Celsius
UL ApprovalYes
Heat Shrink TypeSingle-Wall Polyolefin Heat Shrink Tubing
Inner Diameter After Shrink (Metric)0.787
Maximum Operating Temperature (Celsius)135.0
Mil SpecSAE-AMS-DTL-23053/5, Class 2
Tubing TypeSingle Wall (Thin)
Maximum Operating Temperature (Fahrenheit)275.0
