3M Products & Supplies

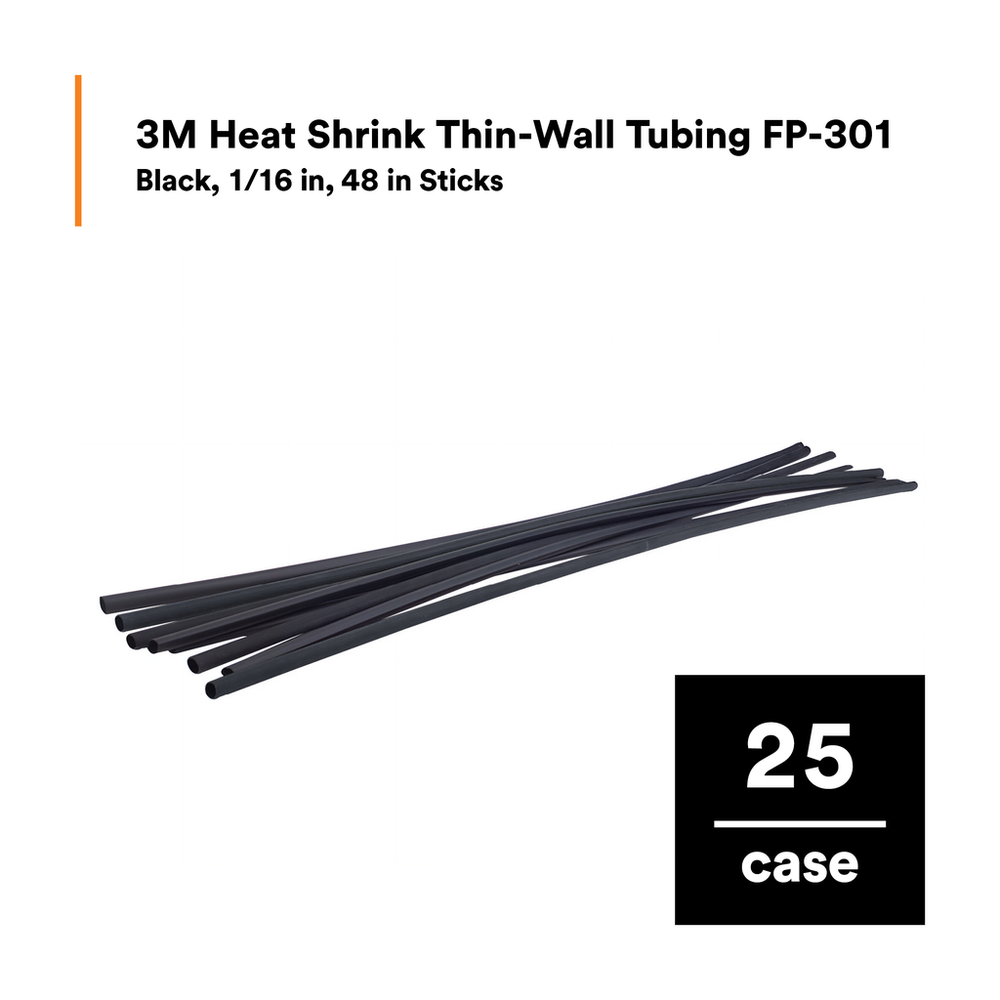

3M™ Heat Shrink Thin-Wall Tubing FP-301-1/16-48"-Black-25 Pcs, 48 in Length sticks, 25 pieces/case - 7000133629

Sold As: 25-Pack
SKU: 7000133629
MPN: 7000133629
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051128599655
3M ID: 80611602261
5 Digit UPC: 59965
$67.02 ($2.68 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Tubing FP-301 is a general purpose, thin wall tubing that provides a balance of electrical, physical and chemical properties, making it ideal for industrial and military applications. This tubing has a 2:1 shrink ratio and provides flame retardant insulation for 600V rated applications. It has a flexible polyolefin construction that offers moisture seal protection.

Features

  • KEY SPECIFICATIONS: UL Listed, File E-39100, SAE AS23053/5, Class 1 (all colors), Class 2 (clear), CSA Certified, and RoHS 2011/65/EU Compliant
  • A VARIETY OF APPLICATIONS: Offers a 2:1 shrink-fit ratio and serves as protection in wire-harnessing, split-resistance covering, wire marking, wire bundling, and component packaging
  • HIGH-STRENGTH PROTECTION: Balances electrical, physical, and chemical properties for various industrial and military applications
  • FOR DEMANDING CONDITIONS: Performs at an operating temperature up to 275 °F (135 °C)
  • FLAME-RETARDANT TUBING: For applications up to 600V (clear is not flame retardant)
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Product ColorBlack
Operating Temperature Range (Fahrenheit)-67 °F to 275 °F
Units per Case25.0
Overall Length (Metric) UOMmm
Inner Diameter After Shrink (Imperial)0.031
Overall Length (Imperial)48.0
Mil SpecSAE-AMS-DTL-23053/5, Class 1
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Inner Diameter After Shrink (Imperial) UOMin
Inner Diameter After Shrink (Metric) UOMmm
Maximum Operating Temperature (Fahrenheit)275.0
Inner Diameter Before Shrink (Imperial)0.063
Overall Length (Metric)1220.0
Adhesive MaterialNone
Heat Shrink TypeSingle-Wall Polyolefin Heat Shrink Tubing
Minimum Expanded Tubing I. D.0.063
Non-CorrosiveYes
Operating Temperature (Celsius)-55 to 135 Degrees Celsius
UL File NumberE-39100
Overall Width (Metric)1.59
Minimum Expanded Tubing I. D. UOMin
Inner Diameter Before Shrink (Imperial) UOMin
Shrink Ratio2:1
Operating Temperature Range (Celsius)-55 °C to +135 °C
UL Bug Temperature (Fahrenheit)257 Degrees Fahrenheit
Maximum Operating Temperature (Celsius) UomDegree
Overall Width (Imperial)0.06
Inner Diameter Before Shrink (Metric)1.6
Overall Width (Imperial) UOMin
Maximum Operating Temperature (Celsius)135.0
ApplicationElectrical Insulation; High-tenacity and chemically resistant tubing
Flame RetardantYes
Minimum Shrink Temperature (Celsius)100.0
UL Bug Temperature (Celsius)125 Degrees Celsius
UL ApprovalYes
UL Bug Voltage600 Volt
Operating Temperature (Fahrenheit)-67 °F to 275 °F
Overall Length (Imperial) UOMin
MaterialPolyolefin
Inner Diameter Before Shrink (Metric) UOMmm
Tubing TypeSingle Wall (Thin)
Elongation UOM%
Maximum Operating Temperature (Fahrenheit) UOMDegree
Overall Width (Metric) UOMmm
Inner Diameter After Shrink (Metric)0.787
