3M Products & Supplies

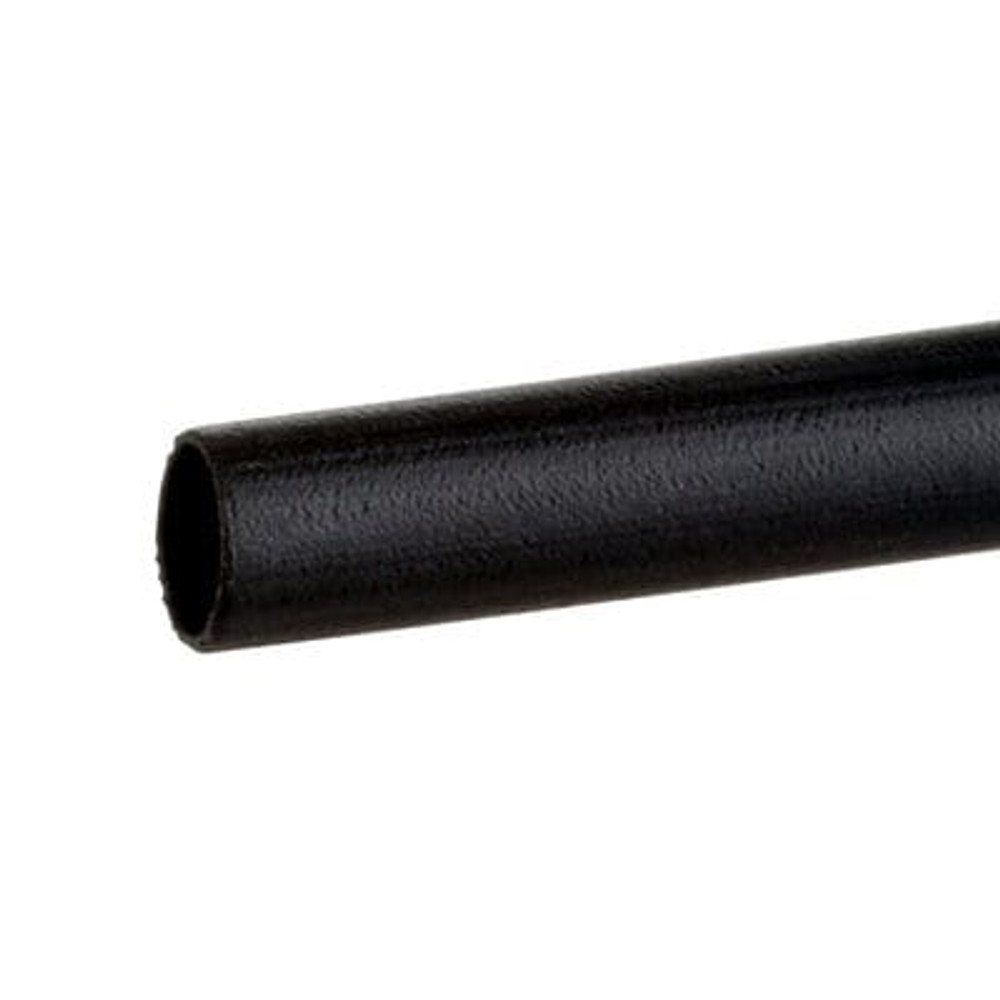

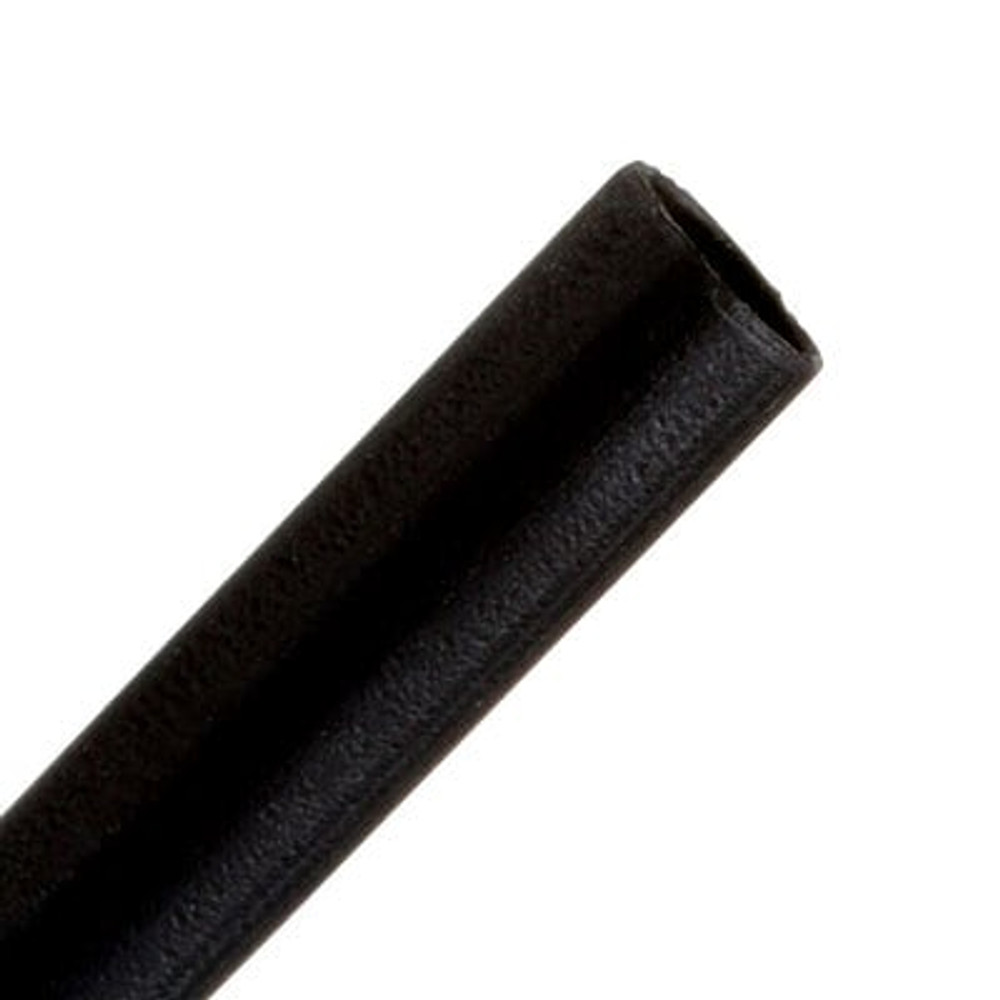

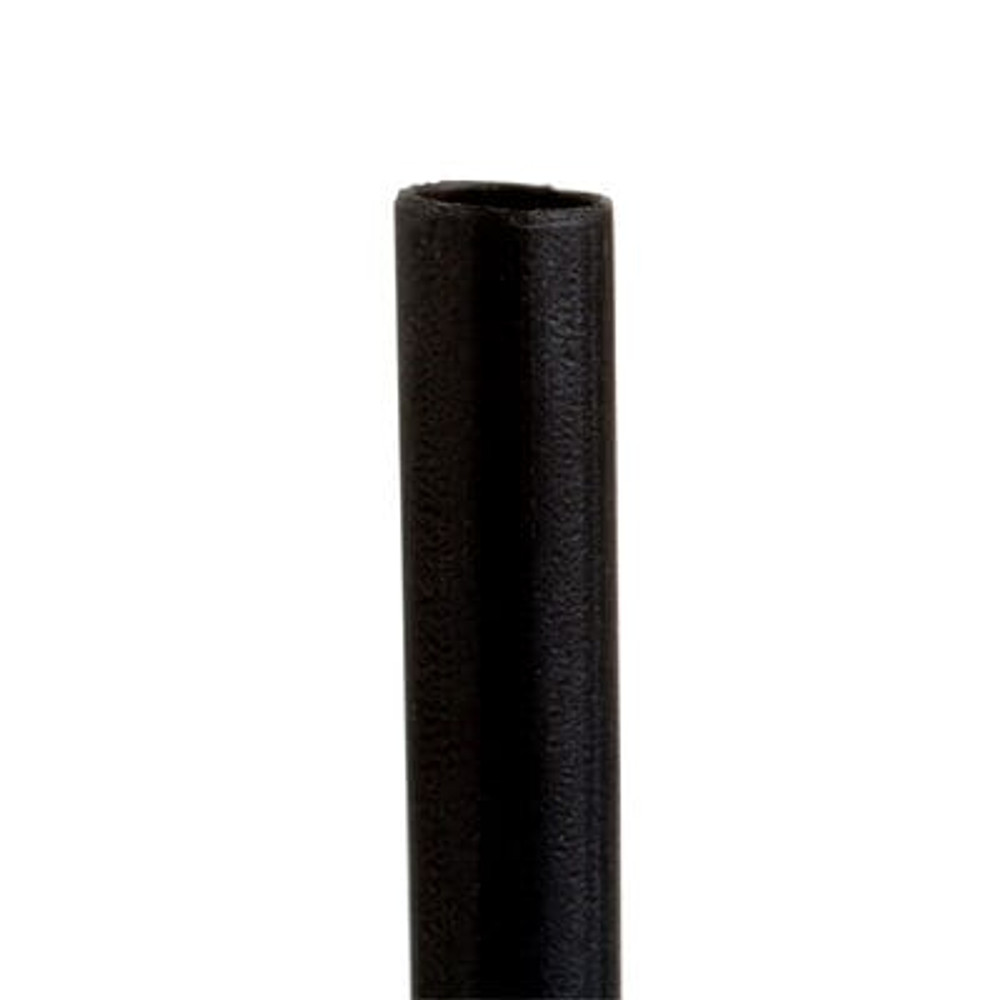

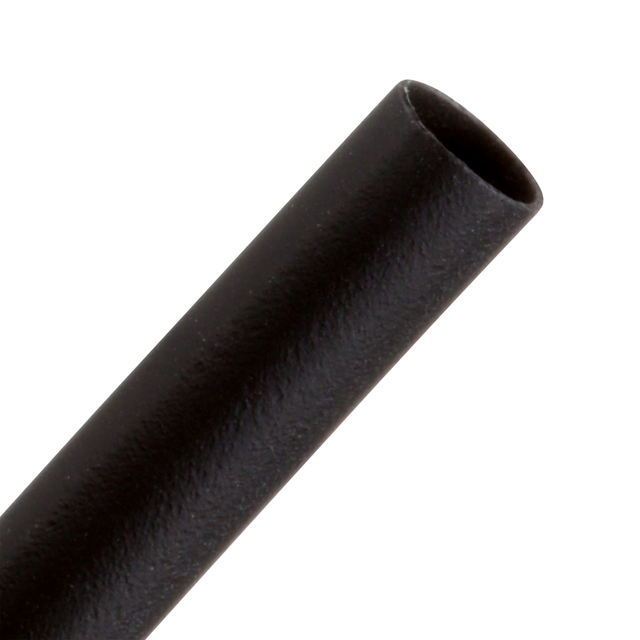

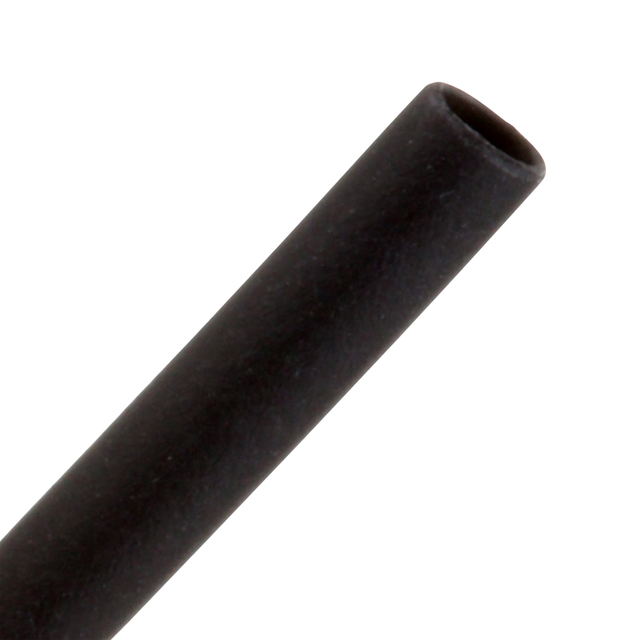

3M™ Heat Shrink Thin-Wall Tubing FP-301-3/32-48"-Black-25 Pcs, 48 in Length sticks, 25 pieces/case - 7000133636

Sold As: 25-Pack
SKU: 7000133636
MPN: 7000133636
For an accurate lead time please contact us
UPC: 00051128599723
3M ID: 80611602337
5 Digit UPC: 59972
$68.45 ($2.74 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Tubing FP-301 is a general purpose, thin wall tubing that provides a balance of electrical, physical and chemical properties, making it ideal for industrial and military applications. This tubing has a 2:1 shrink ratio and provides flame retardant insulation for 600V rated applications. It has a flexible polyolefin construction that offers moisture seal protection.

Features

  • FLAME-RETARDANT TUBING: For applications up to 600V (clear is not flame retardant)
  • HIGH-STRENGTH PROTECTION: Balances electrical, physical, and chemical properties for various industrial and military applications
  • A VARIETY OF APPLICATIONS: Offers a 2:1 shrink-fit ratio and serves as protection in wire-harnessing, split-resistance covering, wire marking, wire bundling, and component packaging
  • FOR DEMANDING CONDITIONS: Performs at an operating temperature up to 275 °F (135 °C)
  • KEY SPECIFICATIONS: UL Listed, File E-39100, SAE AS23053/5, Class 1 (all colors), Class 2 (clear), CSA Certified, and RoHS 2011/65/EU Compliant
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Tubing TypeSingle Wall (Thin)
Overall Width (Metric)2.38
Operating Temperature Range (Celsius)-55 °C to +135 °C
Non-CorrosiveYes
Overall Width (Metric) UOMmm
Maximum Operating Temperature (Celsius)135.0
Inner Diameter After Shrink (Imperial) UOMin
Inner Diameter Before Shrink (Imperial)0.093
Overall Length (Imperial)48.0
Overall Width (Imperial)0.09
Product ColorBlack
Overall Length (Metric)1220.0
UL Bug Temperature (Celsius)125 Degrees Celsius
Units per Case25.0
Shrink Ratio2:1
Maximum Operating Temperature (Fahrenheit) UOMDegree
Inner Diameter After Shrink (Imperial)0.046
Operating Temperature (Fahrenheit)-67 °F to 275 °F
Inner Diameter After Shrink (Metric)1.16
Inner Diameter Before Shrink (Metric)2.36
Overall Width (Imperial) UOMin
UL ApprovalYes
Elongation UOM%
Maximum Operating Temperature (Fahrenheit)275.0
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
UL Bug Temperature (Fahrenheit)257 Degrees Fahrenheit
MaterialPolyolefin
Operating Temperature (Celsius)-55 to 135 Degrees Celsius
Flame RetardantYes
Minimum Shrink Temperature (Celsius)100.0
Minimum Expanded Tubing I. D. UOMin
Overall Length (Metric) UOMmm
UL Bug Voltage600 Volt
Inner Diameter Before Shrink (Imperial) UOMin
Heat Shrink TypeSingle-Wall Polyolefin Heat Shrink Tubing
Operating Temperature Range (Fahrenheit)-67 °F to 275 °F
Inner Diameter After Shrink (Metric) UOMmm
Maximum Operating Temperature (Celsius) UomDegree
Inner Diameter Before Shrink (Metric) UOMmm
Overall Length (Imperial) UOMin
Minimum Expanded Tubing I. D.3.0
Adhesive MaterialNone
ApplicationElectrical Insulation; High-tenacity and chemically resistant tubing
Mil SpecAMS-DTL-23053/5, Class 1
