3M Products & Supplies

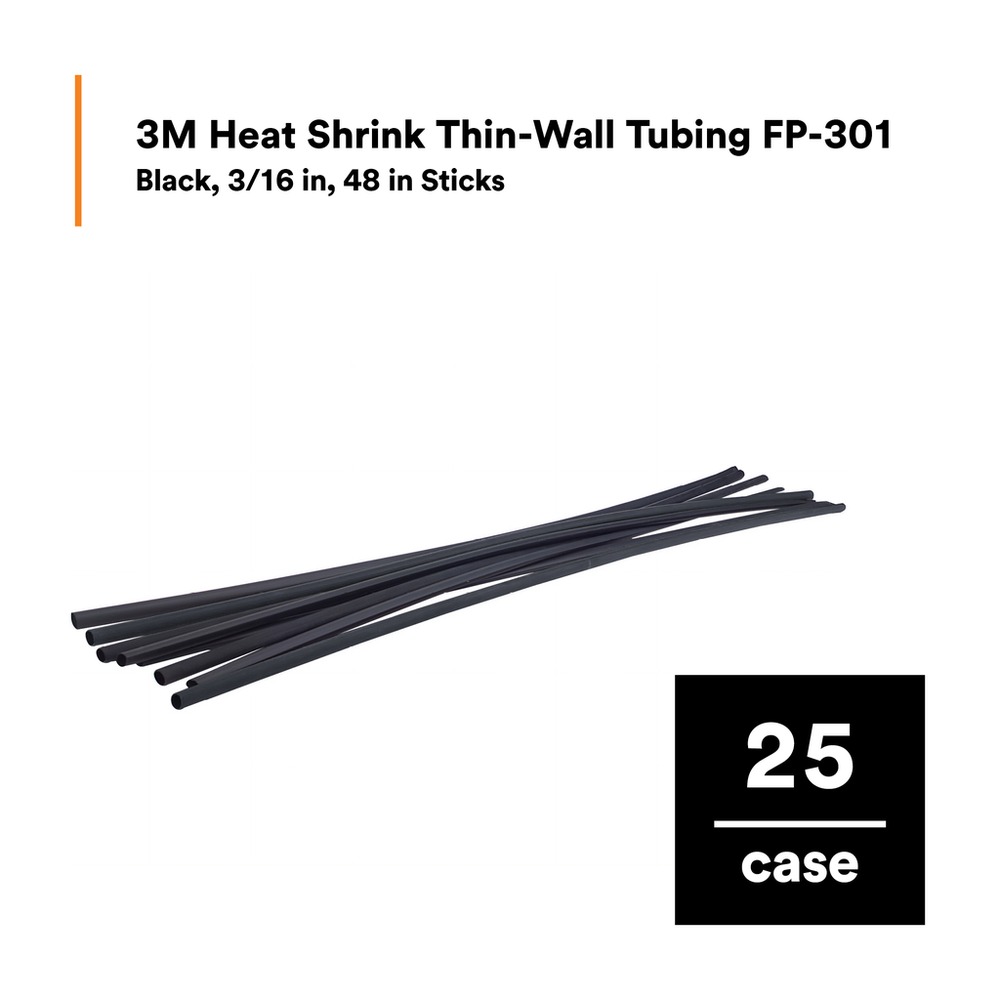

3M™ Heat Shrink Thin-Wall Tubing FP-301-3/16-48"-Black-25 Pcs, 48 in Length sticks, 25 pieces/case - 7000133489

Sold As: 25-Pack
SKU: 7000133489
MPN: 7000133489
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051128595701
3M ID: 80611472319
5 Digit UPC: 59570
$76.82 ($3.07 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Tubing FP-301 is a general purpose, thin wall tubing that provides a balance of electrical, physical and chemical properties, making it ideal for industrial and military applications. This tubing has a 2:1 shrink ratio and provides flame retardant insulation for 600V rated applications. It has a flexible polyolefin construction that offers moisture seal protection.

Features

  • A VARIETY OF APPLICATIONS: Offers a 2:1 shrink-fit ratio and serves as protection in wire-harnessing, split-resistance covering, wire marking, wire bundling, and component packaging
  • FOR DEMANDING CONDITIONS: Performs at an operating temperature up to 275 °F (135 °C)
  • FLAME-RETARDANT TUBING: For applications up to 600V (clear is not flame retardant)
  • KEY SPECIFICATIONS: UL Listed, File E-39100, SAE AS23053/5, Class 1 (all colors), Class 2 (clear), CSA Certified, and RoHS 2011/65/EU Compliant
  • HIGH-STRENGTH PROTECTION: Balances electrical, physical, and chemical properties for various industrial and military applications
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Mil SpecAMS-DTL-23053/5, Class 1
UL Bug Voltage600 Volt
Operating Temperature Range (Celsius)-55 °C to +135 °C
Inner Diameter After Shrink (Imperial) UOMin
Product ColorBlack
UL Bug Temperature (Celsius)125 Degrees Celsius
UL Bug Temperature (Fahrenheit)257 Degrees Fahrenheit
Flame RetardantYes
Overall Width (Imperial)0.19
Overall Width (Metric) UOMmm
Overall Length (Imperial) UOMin
Tubing TypeSingle Wall (Thin)
Maximum Operating Temperature (Fahrenheit) UOMDegree
Operating Temperature (Fahrenheit)-67 °F to 275 °F
Heat Shrink TypeSingle-Wall Polyolefin Heat Shrink Tubing
MaterialPolyolefin
Non-CorrosiveYes
UL ApprovalYes
Inner Diameter After Shrink (Imperial)0.093
Adhesive MaterialNone
Overall Width (Metric)4.75
Elongation UOM%
ApplicationElectrical Insulation; High-tenacity and chemically resistant tubing

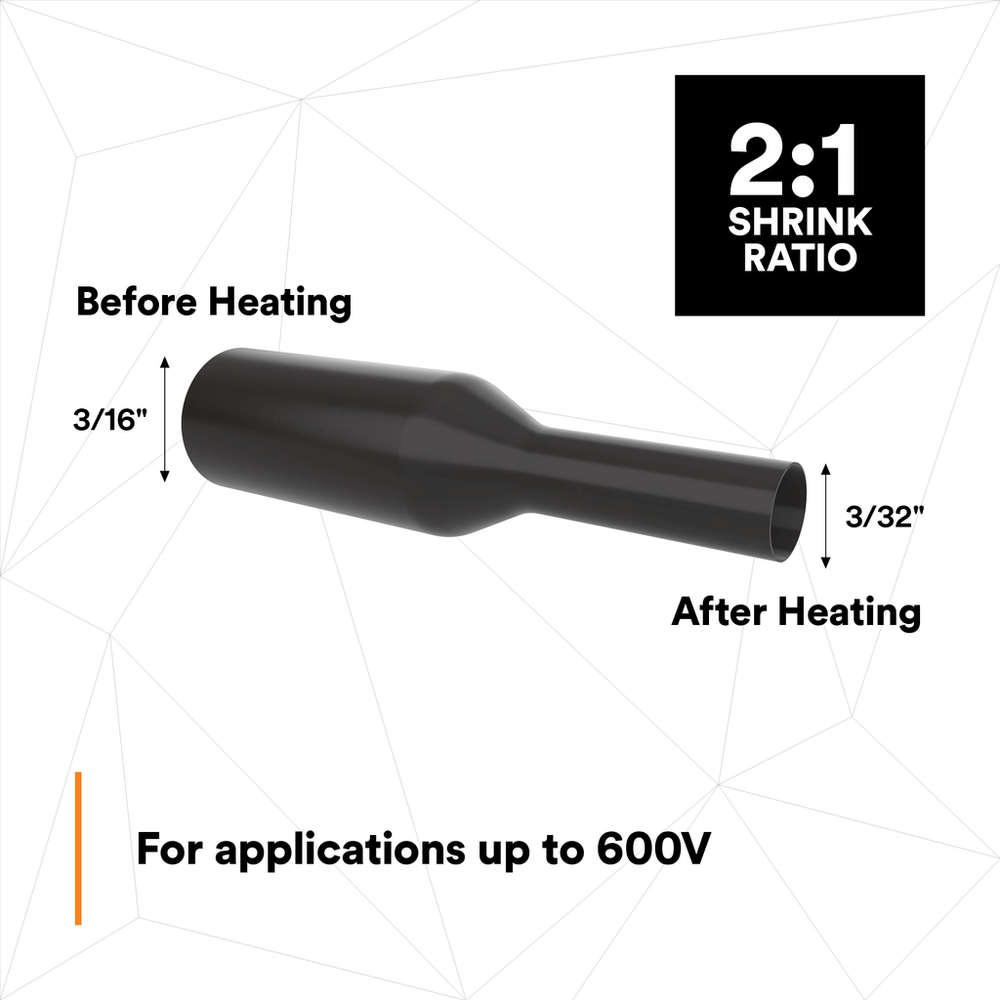

Shrink Ratio2:1
Inner Diameter Before Shrink (Metric) UOMmm
Inner Diameter After Shrink (Metric) UOMmm
Inner Diameter Before Shrink (Imperial)0.187
Inner Diameter Before Shrink (Imperial) UOMin
Inner Diameter Before Shrink (Metric)4.75
Operating Temperature (Celsius)-55 to 135 Degrees Celsius
Maximum Operating Temperature (Fahrenheit)275.0
Overall Length (Metric) UOMmm
Inner Diameter After Shrink (Metric)2.36
Operating Temperature Range (Fahrenheit)-67 °F to 275 °F
Minimum Expanded Tubing I. D.3.0
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Maximum Operating Temperature (Celsius) UomDegree
Minimum Shrink Temperature (Celsius)100.0
Units per Case25.0
Overall Width (Imperial) UOMin
Maximum Operating Temperature (Celsius)135.0
Minimum Expanded Tubing I. D. UOMin
Overall Length (Imperial)48.0
Overall Length (Metric)1220.0
