3M Products & Supplies

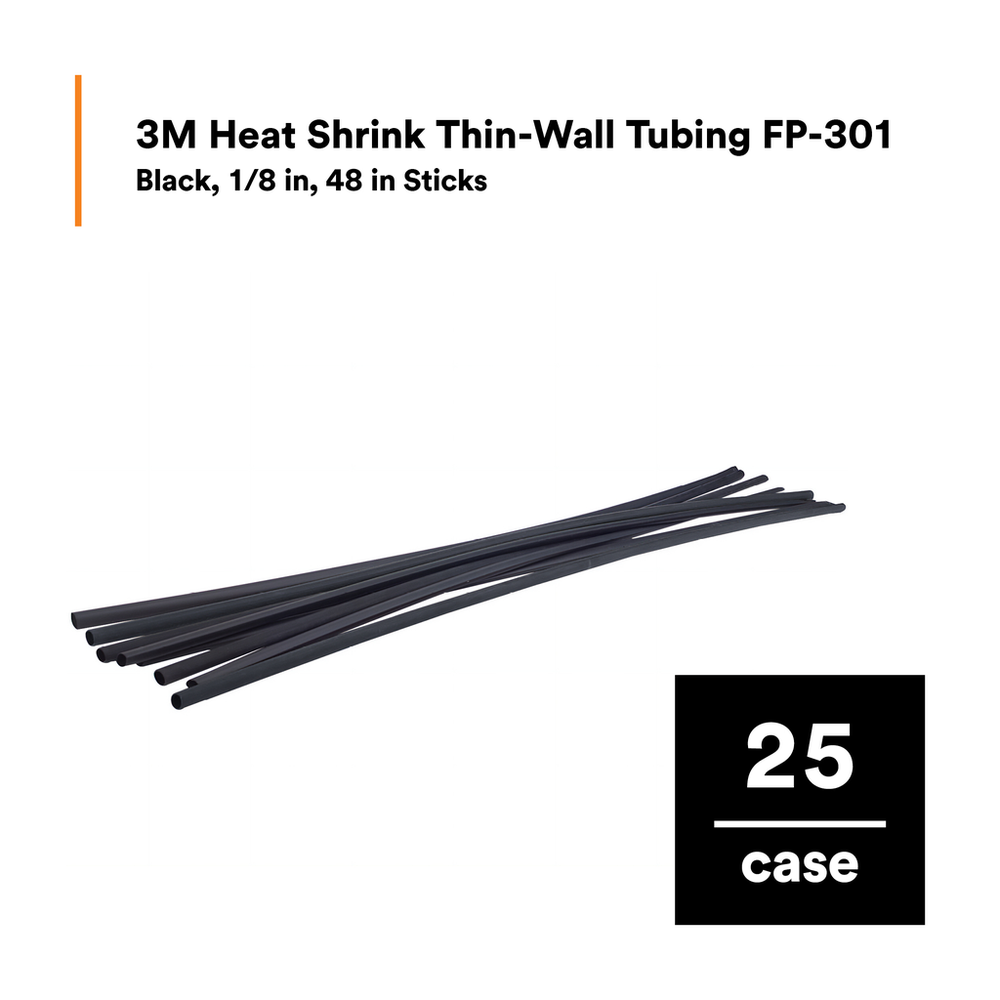

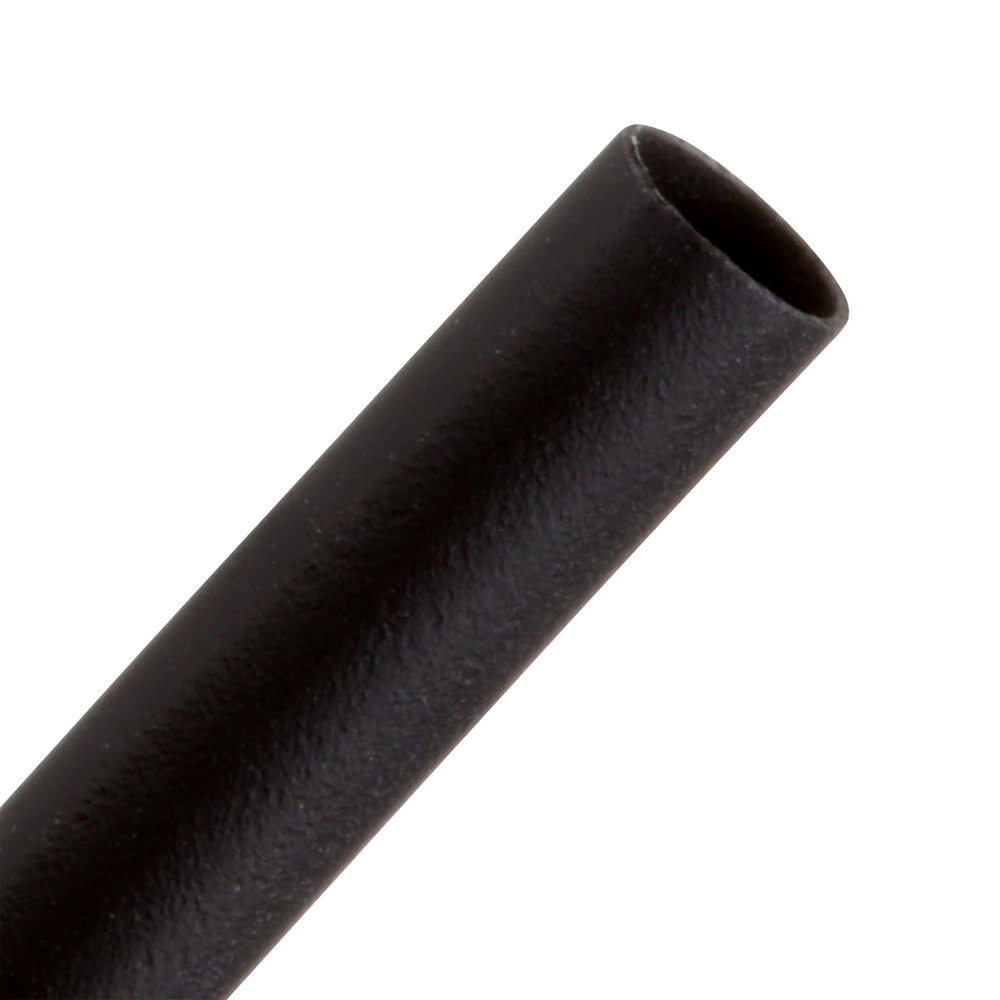

3M™ Heat Shrink Thin-Wall Tubing FP-301-1/8-48"-Black-25 Pcs, 48 in Length sticks, 25 pieces/case - 7100007364

Sold As: 25-Pack
SKU: 7100007364
MPN: 7100007364
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051128599792
3M ID: 80611602402
5 Digit UPC: 59979
$69.47 ($2.78 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Tubing FP-301 is a general purpose, thin wall tubing that provides a balance of electrical, physical and chemical properties, making it ideal for industrial and military applications. This tubing has a 2:1 shrink ratio and provides flame retardant insulation for 600V rated applications. It has a flexible polyolefin construction that offers moisture seal protection.

Features

  • KEY SPECIFICATIONS: UL Listed, File E-39100, SAE AS23053/5, Class 1 (all colors), Class 2 (clear), CSA Certified, and RoHS 2011/65/EU Compliant
  • FLAME-RETARDANT TUBING: For applications up to 600V (clear is not flame retardant)
  • A VARIETY OF APPLICATIONS: Offers a 2:1 shrink-fit ratio and serves as protection in wire-harnessing, split-resistance covering, wire marking, wire bundling, and component packaging
  • FOR DEMANDING CONDITIONS: Performs at an operating temperature up to 275 °F (135 °C)
  • HIGH-STRENGTH PROTECTION: Balances electrical, physical, and chemical properties for various industrial and military applications
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Overall Length (Metric)1220.0
UL Bug Voltage600 Volt
Minimum Shrink Temperature (Celsius)100.0
UL Bug Temperature (Fahrenheit)257 Degrees Fahrenheit
Inner Diameter Before Shrink (Metric)3.18
Maximum Operating Temperature (Fahrenheit)275.0
Inner Diameter After Shrink (Imperial)0.062
Inner Diameter After Shrink (Metric) UOMmm
Inner Diameter Before Shrink (Imperial)0.125
MaterialPolyolefin
Inner Diameter Before Shrink (Metric) UOMmm
Overall Length (Imperial)48.0
Elongation UOM%
Operating Temperature (Celsius)-55 to 135 Degrees Celsius
Overall Width (Metric) UOMmm
Overall Width (Imperial)0.13
UL Bug Temperature (Celsius)125 Degrees Celsius
Tubing TypeSingle Wall (Thin)
ApplicationElectrical Insulation; High-tenacity and chemically resistant tubing
Mil SpecAMS-DTL-23053/5, Class 1
Inner Diameter Before Shrink (Imperial) UOMin
Maximum Operating Temperature (Celsius)135.0
Overall Length (Imperial) UOMin
Maximum Operating Temperature (Celsius) UomDegree
Adhesive MaterialNone
Flame RetardantYes
Heat Shrink TypeSingle-Wall Polyolefin Heat Shrink Tubing
Overall Width (Metric)3.18
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Non-CorrosiveYes
Units per Case25.0
Product ColorBlack
Shrink Ratio2:1
Overall Length (Metric) UOMmm
UL ApprovalYes
Operating Temperature Range (Celsius)-55 °C to +135 °C
Minimum Expanded Tubing I. D. UOMin
Inner Diameter After Shrink (Imperial) UOMin
Overall Width (Imperial) UOMin
Operating Temperature (Fahrenheit)-67 °F to 275 °F
Operating Temperature Range (Fahrenheit)-67 °F to 275 °F
Minimum Expanded Tubing I. D.1.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
Inner Diameter After Shrink (Metric)1.57
