3M Products & Supplies

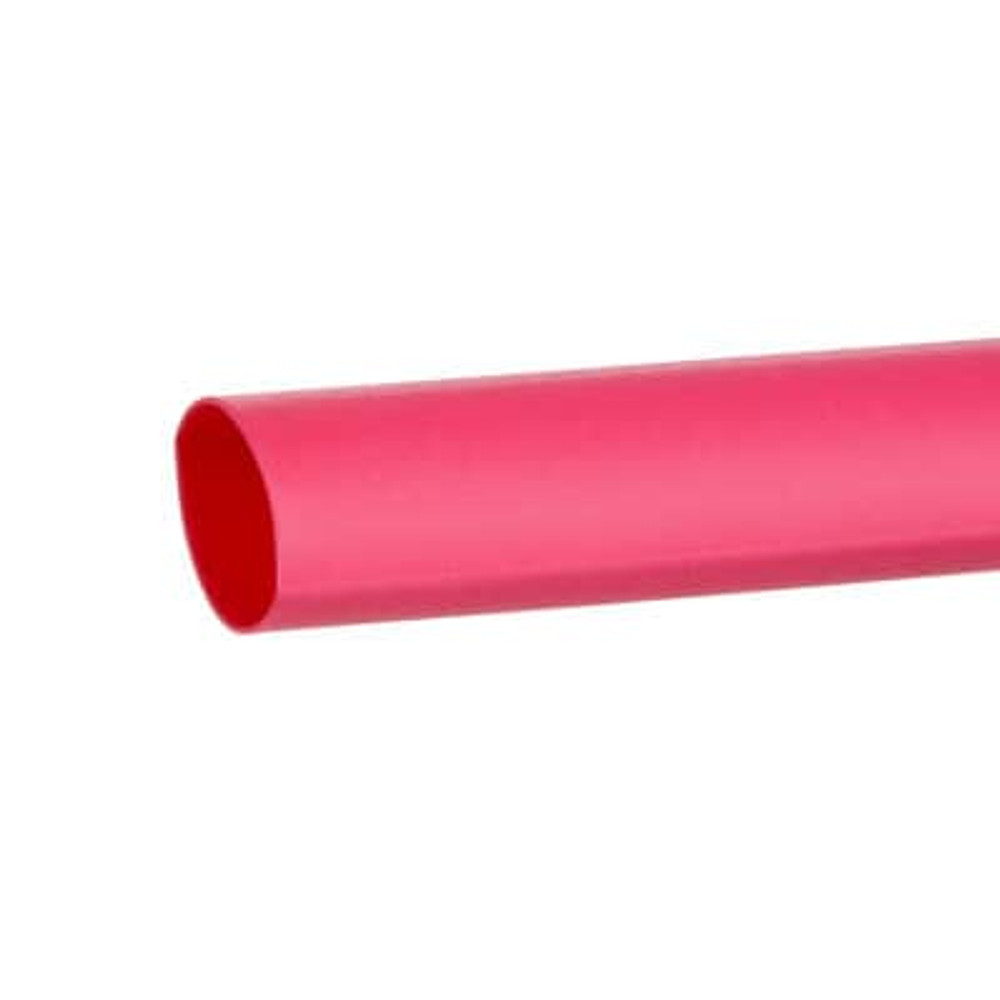

3M™ Heat Shrink Thin-Wall Tubing FP-301-3/8-48"-Red-125 Pcs, 48 in Length sticks, 125 pieces/case - 7010320996

Sold As: 1125-Pack
SKU: 7010320996
MPN: 7010320996
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 10051128598389
3M ID: 80611600992
5 Digit UPC: 59838
$2,840.94 ($2.53 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Tubing FP-301 is a general purpose, thin wall tubing that provides a balance of electrical, physical and chemical properties, making it ideal for industrial and military applications. This tubing has a 2:1 shrink ratio and provides flame retardant insulation for 600V rated applications. It has a flexible polyolefin construction that offers moisture seal protection.

Features

  • HIGH-STRENGTH PROTECTION: Balances electrical, physical, and chemical properties for various industrial and military applications
  • A VARIETY OF APPLICATIONS: Offers a 2:1 shrink-fit ratio and serves as protection in wire-harnessing, split-resistance covering, wire marking, wire bundling, and component packaging
  • FLAME-RETARDANT TUBING: For applications up to 600V (clear is not flame retardant)
  • KEY SPECIFICATIONS: UL Listed, File E-39100, SAE AS23053/5, Class 1 (all colors), Class 2 (clear), CSA Certified, and RoHS 2011/65/EU Compliant
  • FOR DEMANDING CONDITIONS: Performs at an operating temperature up to 275 °F (135 °C)
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Maximum Operating Temperature (Fahrenheit) UOMDegree
Overall Width (Metric)9.52
Maximum Operating Temperature (Fahrenheit)275.0
Inner Diameter Before Shrink (Imperial) UOMin
Inner Diameter Before Shrink (Metric)9.53
Mil SpecAMS-DTL-23053/5, Class 1
Operating Temperature (Celsius)-55 to 135 Degrees Celsius
Adhesive MaterialNone
Overall Length (Metric)1220.0
Inner Diameter After Shrink (Metric) UOMmm
Flame RetardantYes
Inner Diameter Before Shrink (Metric) UOMmm
Maximum Operating Temperature (Celsius)135.0
MaterialPolyolefin
ApplicationElectrical Insulation; High-tenacity and chemically resistant tubing
Overall Length (Metric) UOMmm
Inner Diameter After Shrink (Imperial) UOMin
Inner Diameter After Shrink (Imperial)0.187
Overall Width (Metric) UOMmm
Overall Width (Imperial) UOMin
UL Bug Temperature (Fahrenheit)257 Degrees Fahrenheit
Minimum Expanded Tubing I. D. UOMin
Inner Diameter Before Shrink (Imperial)0.375
UL Bug Voltage600 Volt
Overall Length (Imperial)48.0
Tubing TypeSingle (Thin) Wall
Elongation UOM%
Maximum Operating Temperature (Celsius) UomDegree
Non-CorrosiveYes
Minimum Expanded Tubing I. D.3.0
Inner Diameter After Shrink (Metric)4.75
Operating Temperature (Fahrenheit)-67 °F to 275 °F
Overall Width (Imperial)0.37
Shrink Ratio2:1
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
UL Bug Temperature (Celsius)125 Degrees Celsius
Product ColorRed
Overall Length (Imperial) UOMin
Heat Shrink TypeSingle-Wall Polyolefin Heat Shrink Tubing
