3M Products & Supplies

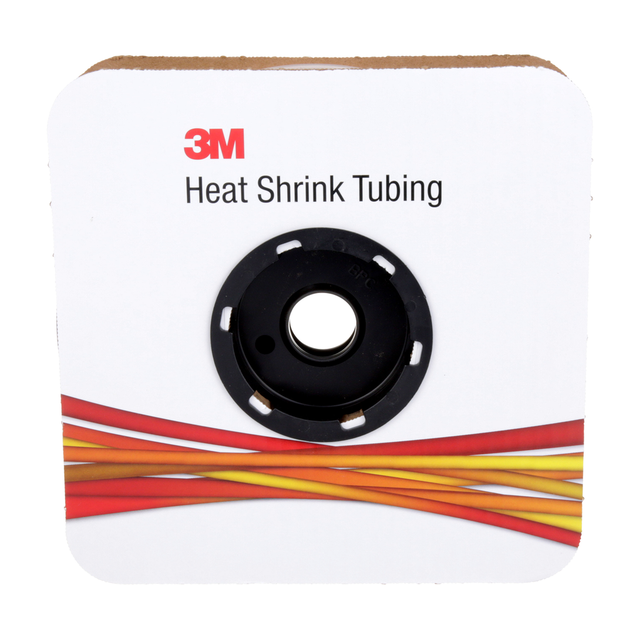

3M™ Heat Shrink Thin-Wall Tubing FP-301-3-Clear-50', 50 ft Length per spool, 1 spool/case - 7100025152

Sold As: 1200-Pack
SKU: 7100025152
MPN: 7100025152
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007389828
3M ID: 80610241160
5 Digit UPC: 38982
$6,747.33 ($5.62 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Tubing FP-301 is a general purpose, thin wall tubing that provides a balance of electrical, physical and chemical properties, making it ideal for industrial and military applications. This tubing has a 2:1 shrink ratio and provides flame retardant insulation for 600V rated applications. It has a flexible polyolefin construction that offers moisture seal protection.

Features

  • A VARIETY OF APPLICATIONS: Offers a 2:1 shrink-fit ratio and serves as protection in wire-harnessing, split-resistance covering, wire marking, wire bundling, and component packaging
  • KEY SPECIFICATIONS: UL Listed, File E-39100, SAE AS23053/5, Class 1 (all colors), Class 2 (clear), CSA Certified, and RoHS 2011/65/EU Compliant
  • FLAME-RETARDANT TUBING: For applications up to 600V (clear is not flame retardant)
  • FOR DEMANDING CONDITIONS: Performs at an operating temperature up to 275 °F (135 °C)
  • HIGH-STRENGTH PROTECTION: Balances electrical, physical, and chemical properties for various industrial and military applications
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Elongation UOM%
Maximum Operating Temperature (Celsius)135.0
Maximum Operating Temperature (Celsius) UomDegree
MaterialFlexible Polyolefin
Inner Diameter Before Shrink (Metric)76.2
UL File NumberE-39100
Inner Diameter After Shrink (Imperial) UOMin
Maximum Operating Temperature (Fahrenheit) UOMDegree

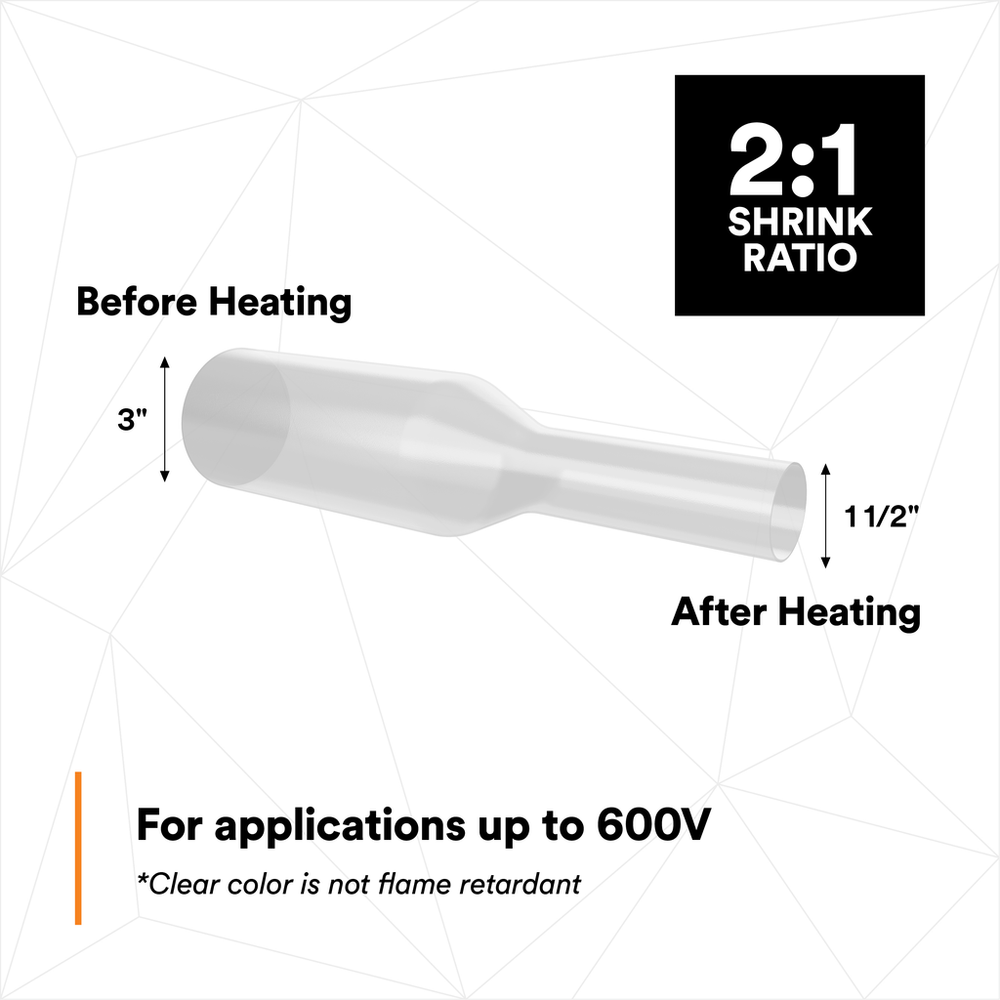

Shrink Ratio2:1
Non-CorrosiveYes
Inner Diameter Before Shrink (Imperial) UOMin
Heat Shrink TypeSingle-Wall Polyolefin Heat Shrink Tubing
Operating Temperature (Celsius)-55 to 135 Degrees Celsius
Mil SpecAMS-DTL-23053/5, Class 2
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Overall Length (Imperial) UOMft
Inner Diameter After Shrink (Metric) UOMmm
Units per Case1.0
Overall Length (Imperial)50.0
Inner Diameter After Shrink (Metric)38.1
Minimum Expanded Tubing I. D. UOMin
Product ColorTransparent
Minimum Shrink Temperature (Celsius)100.0
Operating Temperature Range (Fahrenheit)-67 °F to 275 °F
Operating Temperature Range (Celsius)-55 °C to +135 °C
Inner Diameter Before Shrink (Metric) UOMmm
ApplicationElectrical Insulation; High-tenacity and chemically resistant tubing
Flame RetardantNo
Inner Diameter Before Shrink (Imperial)3.0
Tubing TypeSingle Wall (Thin)
Inner Diameter After Shrink (Imperial)1.5
Minimum Expanded Tubing I. D.3.0
Maximum Operating Temperature (Fahrenheit)275.0
Adhesive MaterialNone
UL ApprovalYes
