3M Products & Supplies

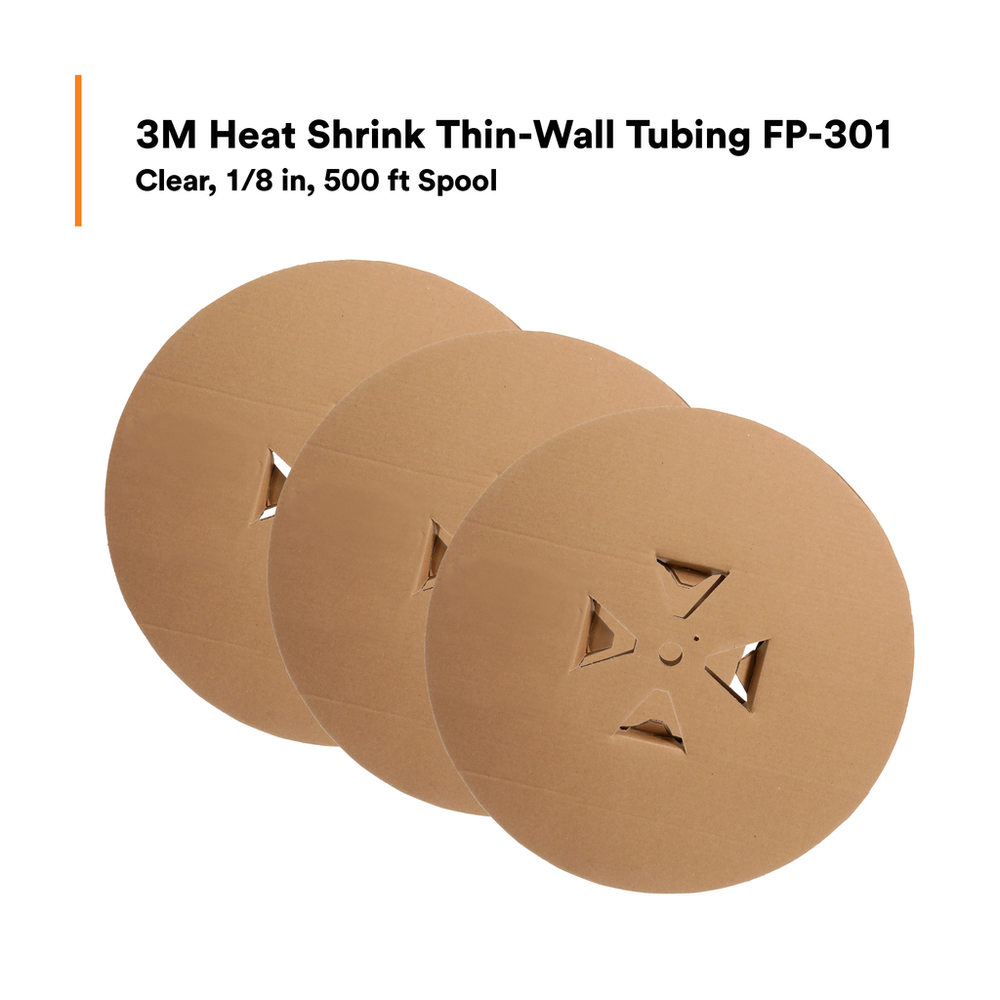

3M™ Heat Shrink Thin-Wall Tubing FP-301-1/8-Clear-500', 500 ft Length per spool, 3 spools/case - 7100020161

Sold As: 1500-Pack
SKU: 7100020161
MPN: 7100020161
For an accurate lead time please contact us
UPC: 00054007085263
3M ID: 80610219943
5 Digit UPC: 8526
$767.53 ($0.51 / Count)
Hurry up! Current stock:

Product Description

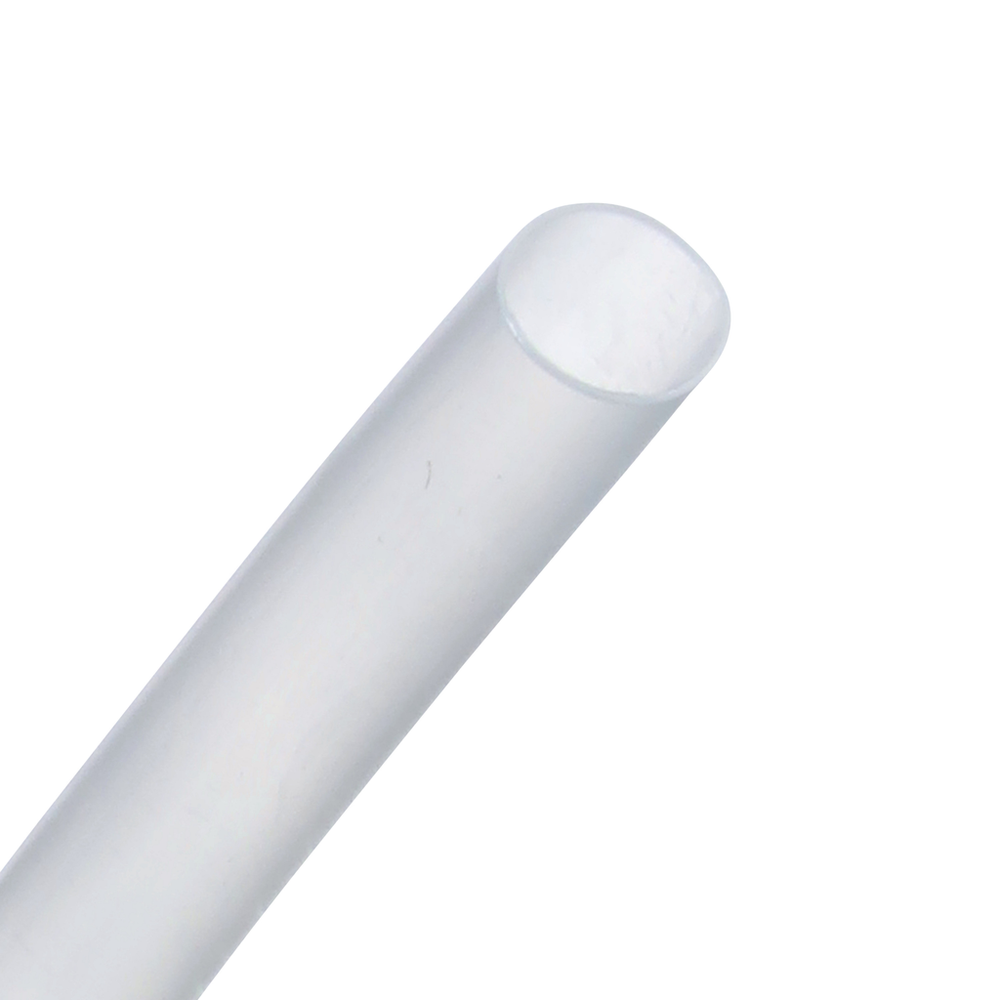

3M™ Heat Shrink Tubing FP-301 is a general purpose, thin wall tubing that provides a balance of electrical, physical and chemical properties, making it ideal for industrial and military applications. This tubing has a 2:1 shrink ratio and provides flame retardant insulation for 600V rated applications. It has a flexible polyolefin construction that offers moisture seal protection.

Features

  • FOR DEMANDING CONDITIONS: Performs at an operating temperature up to 275 °F (135 °C)
  • FLAME-RETARDANT TUBING: For applications up to 600V (clear is not flame retardant)
  • HIGH-STRENGTH PROTECTION: Balances electrical, physical, and chemical properties for various industrial and military applications
  • KEY SPECIFICATIONS: UL Listed, File E-39100, SAE AS23053/5, Class 1 (all colors), Class 2 (clear), CSA Certified, and RoHS 2011/65/EU Compliant

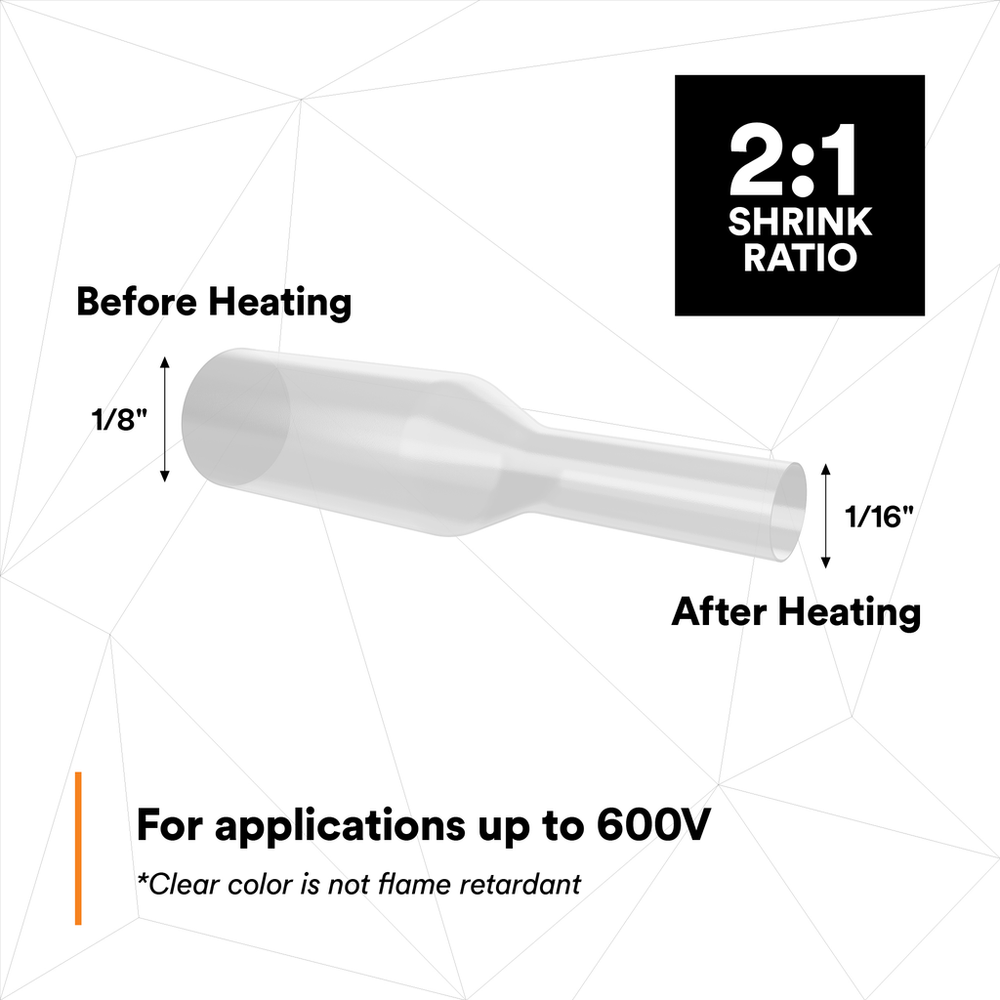

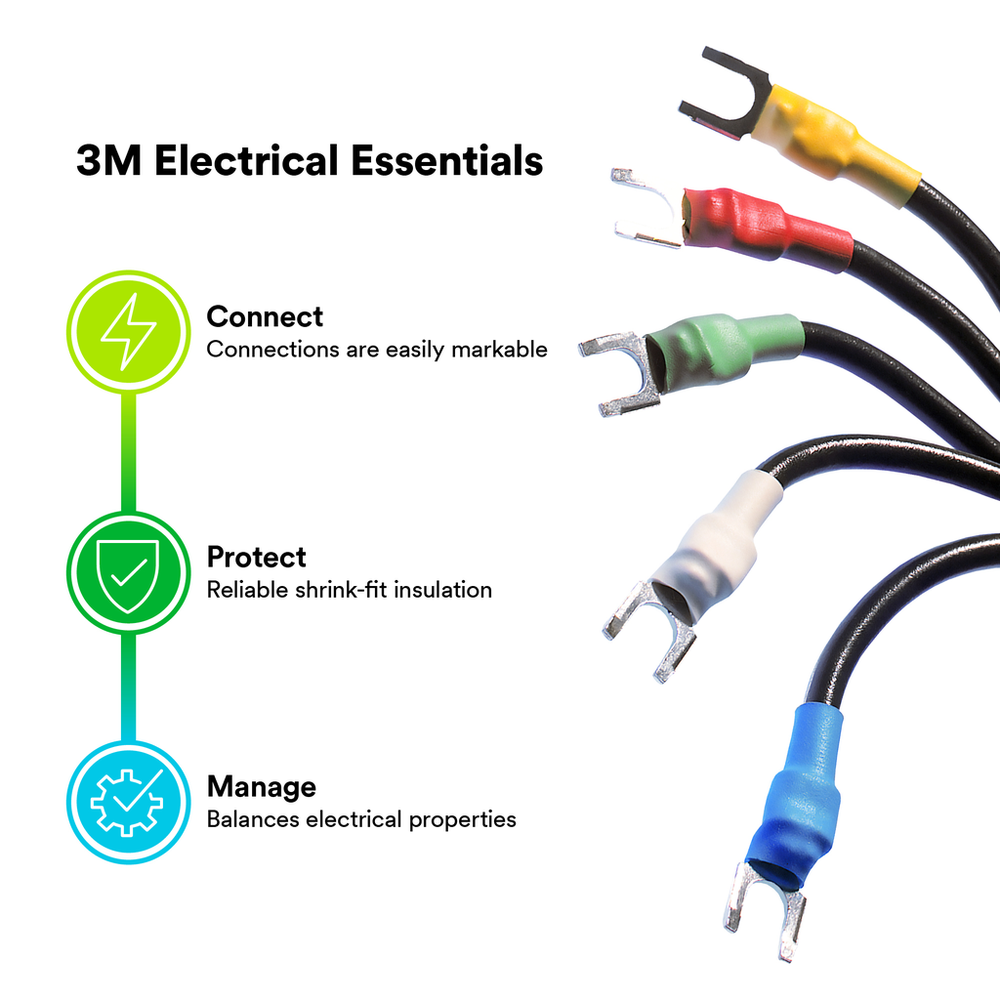

  • A VARIETY OF APPLICATIONS: Offers a 2:1 shrink-fit ratio and serves as protection in wire-harnessing, split-resistance covering, wire marking, wire bundling, and component packaging
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Units per Case3.0
Inner Diameter After Shrink (Imperial)0.062
Operating Temperature Range (Celsius)-55 °C to +135 °C
Product ColorTransparent
UL ApprovalYes
MaterialFlexible Polyolefin
Shrink Ratio2:1
Inner Diameter Before Shrink (Metric) UOMmm
Minimum Expanded Tubing I. D. UOMin
Minimum Shrink Temperature (Celsius)100.0
Operating Temperature (Celsius)-55 to 135 Degrees Celsius
Overall Length (Imperial) UOMft
Tubing TypeSingle Wall (Thin)
Overall Length (Imperial)500.0
Minimum Expanded Tubing I. D.1.0
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Elongation UOM%
Non-CorrosiveYes
Maximum Operating Temperature (Celsius)135.0
Flame RetardantNo
Inner Diameter After Shrink (Imperial) UOMin
Inner Diameter Before Shrink (Imperial)0.125
Product FormStick
Inner Diameter Before Shrink (Imperial) UOMin
UL File NumberE-39100
Operating Temperature Range (Fahrenheit)-67 °F to 275 °F
Inner Diameter Before Shrink (Metric)3.18
Inner Diameter After Shrink (Metric) UOMmm
Maximum Operating Temperature (Fahrenheit)275.0
ApplicationElectrical Insulation; High-tenacity and chemically resistant tubing
Adhesive MaterialNone
Heat Shrink TypeSingle-Wall Polyolefin Heat Shrink Tubing
Inner Diameter After Shrink (Metric)1.57
Maximum Operating Temperature (Celsius) UomDegree
Mil SpecAMS-DTL-23053/5, Class 2
Maximum Operating Temperature (Fahrenheit) UOMDegree
