3M Products & Supplies

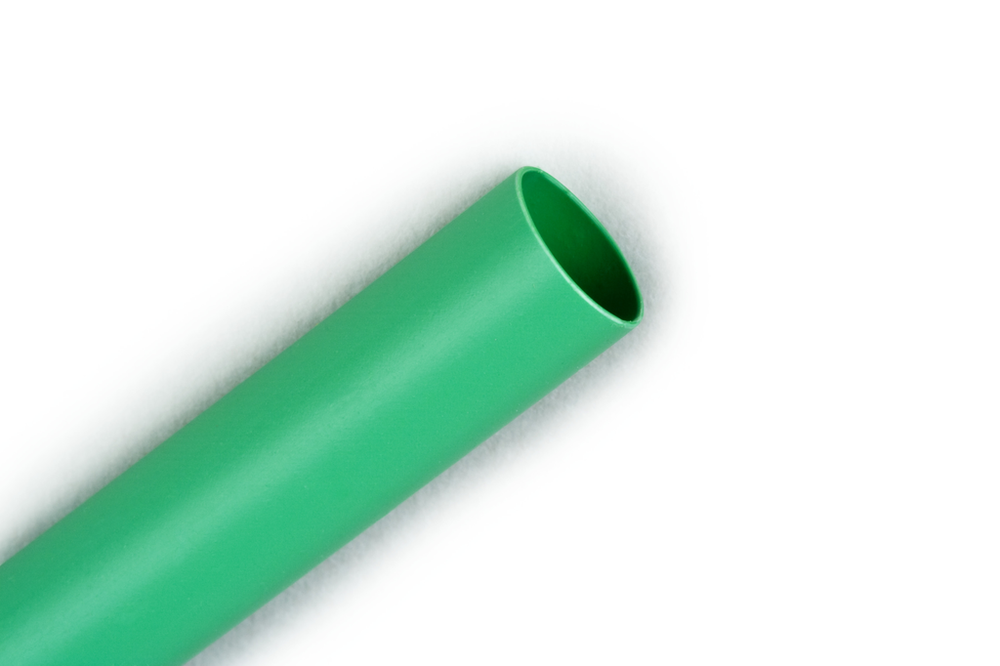

3M™ Heat Shrink Thin-Wall Tubing FP-301-3/32-Green-500`: 500 ft spool length, 500 ft/case - 7010350157

Sold As: 1500-Pack
SKU: 7010350157
MPN: 7010350157
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051135376928
3M ID: 80610855928
5 Digit UPC: 37692
$804.15 ($0.54 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Tubing FP-301 is a general purpose, thin wall tubing that provides a balance of electrical, physical and chemical properties, making it ideal for industrial and military applications. This tubing has a 2:1 shrink ratio and provides flame retardant insulation for 600V rated applications. It has a flexible polyolefin construction that offers moisture seal protection.

Features

  • KEY SPECIFICATIONS: UL Listed, File E-39100, SAE AS23053/5, Class 1 (all colors), Class 2 (clear), CSA Certified, and RoHS 2011/65/EU Compliant
  • HIGH-STRENGTH PROTECTION: Balances electrical, physical, and chemical properties for various industrial and military applications
  • FOR DEMANDING CONDITIONS: Performs at an operating temperature up to 275 °F (135 °C)
  • A VARIETY OF APPLICATIONS: Offers a 2:1 shrink-fit ratio and serves as protection in wire-harnessing, split-resistance covering, wire marking, wire bundling, and component packaging
  • FLAME-RETARDANT TUBING: For applications up to 600V (clear is not flame retardant)
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Minimum Expanded Tubing I. D.3.0
Overall Length (Imperial) UOMft
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Maximum Operating Temperature (Fahrenheit) UOMDegree
Mil SpecAMS-DTL-23053/5, Class 1
ApplicationElectrical Insulation; High-tenacity and chemically resistant tubing
Maximum Operating Temperature (Fahrenheit)275.0
Minimum Expanded Tubing I. D. UOMin
Elongation UOM%
Inner Diameter After Shrink (Metric)1.17
Operating Temperature (Celsius)-55 to 135 Degrees Celsius
Inner Diameter After Shrink (Imperial) UOMin
Inner Diameter After Shrink (Metric) UOMmm
Adhesive MaterialNone
Inner Diameter Before Shrink (Imperial) UOMin
UL File NumberE-39100
Inner Diameter After Shrink (Imperial)0.046
Heat Shrink TypeSingle-Wall Polyolefin Heat Shrink Tubing
Maximum Operating Temperature (Celsius) UomDegree
Shrink Ratio2:1
Non-CorrosiveYes
Product ColorGreen
Maximum Operating Temperature (Celsius)135.0
Tubing TypeSingle (Thin) Wall
Inner Diameter Before Shrink (Metric)2.36
Flame RetardantYes
Inner Diameter Before Shrink (Metric) UOMmm
Inner Diameter Before Shrink (Imperial)0.093
Overall Length (Imperial)500.0
