3M Products & Supplies

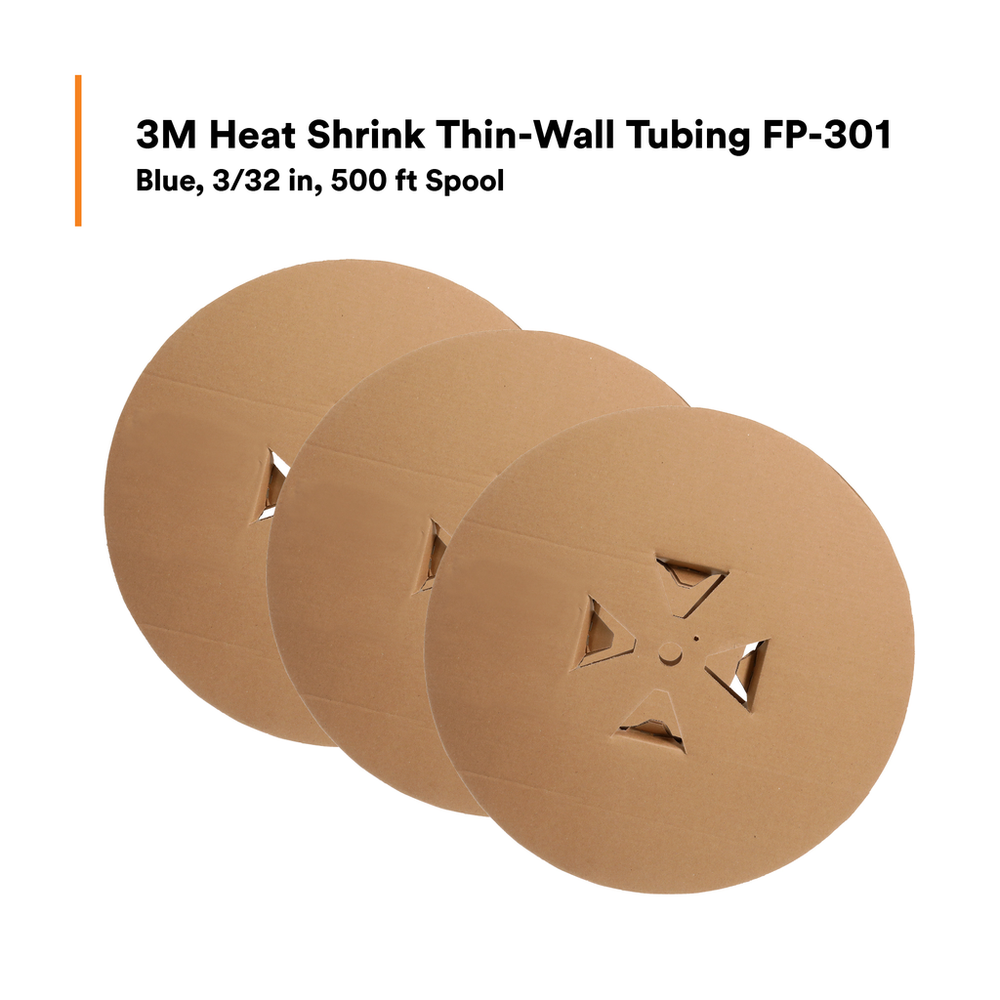

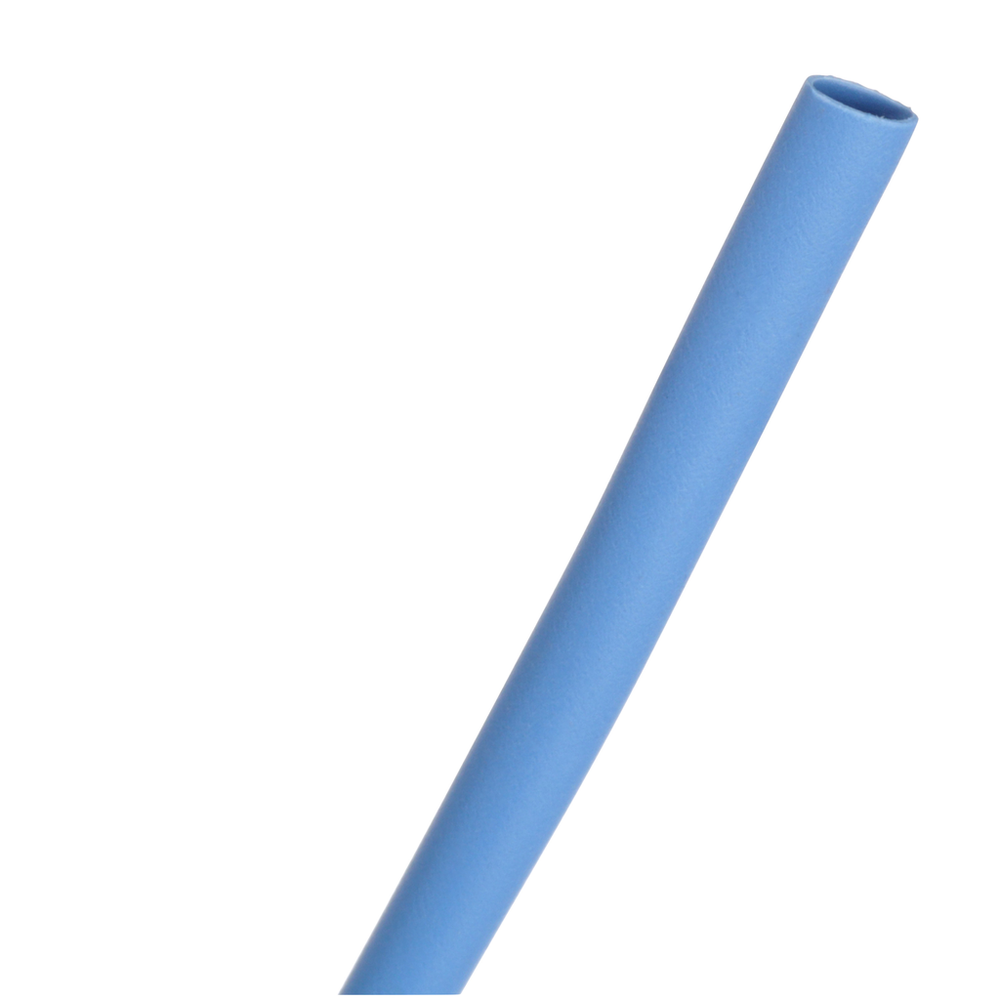

3M™ Heat Shrink Thin-Wall Tubing FP-301-3/32-Blue-500', 500 ft Length per spool, 3 Rolls/Case - 7010349730

Sold As: 1500-Pack
SKU: 7010349730
MPN: 7010349730
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007084686
3M ID: 80610219364
5 Digit UPC: 8468
$809.16 ($0.54 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Tubing FP-301 is a general purpose, thin wall tubing that provides a balance of electrical, physical and chemical properties, making it ideal for industrial and military applications. This tubing has a 2:1 shrink ratio and provides flame retardant insulation for 600V rated applications. It has a flexible polyolefin construction that offers moisture seal protection.

Features

  • HIGH-STRENGTH PROTECTION: Balances electrical, physical, and chemical properties for various industrial and military applications
  • FLAME-RETARDANT TUBING: For applications up to 600V (clear is not flame retardant)
  • FOR DEMANDING CONDITIONS: Performs at an operating temperature up to 275 °F (135 °C)
  • KEY SPECIFICATIONS: UL Listed, File E-39100, SAE AS23053/5, Class 1 (all colors), Class 2 (clear), CSA Certified, and RoHS 2011/65/EU Compliant
  • A VARIETY OF APPLICATIONS: Offers a 2:1 shrink-fit ratio and serves as protection in wire-harnessing, split-resistance covering, wire marking, wire bundling, and component packaging
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Flame RetardantYes
Maximum Operating Temperature (Fahrenheit) UOMDegree
ApplicationElectrical Insulation; High-tenacity and chemically resistant tubing
Heat Shrink TypeSingle-Wall Polyolefin Heat Shrink Tubing
Maximum Operating Temperature (Celsius)135.0
UL File NumberE-39100
Inner Diameter After Shrink (Imperial) UOMin
Operating Temperature (Celsius)-55 to 135 Degrees Celsius
Elongation UOM%
Overall Length (Imperial)500.0

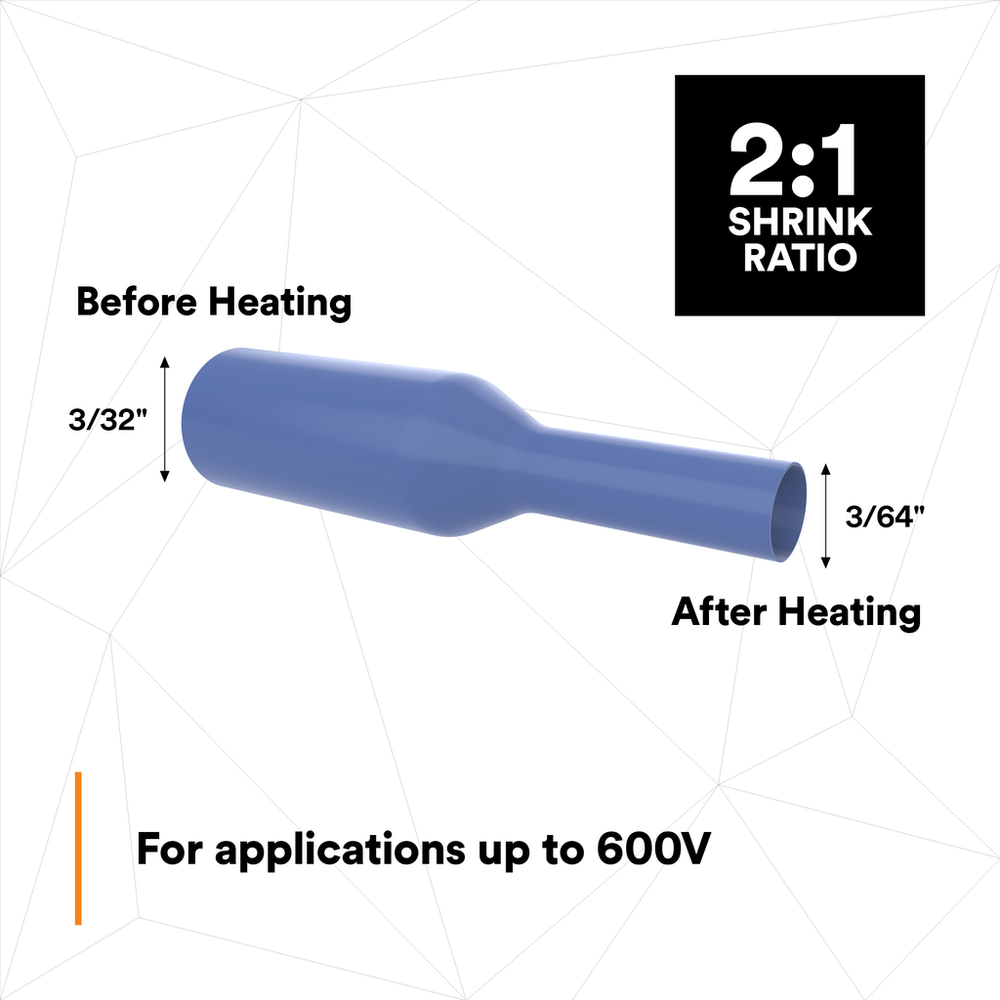

Shrink Ratio2:1
Minimum Expanded Tubing I. D. UOMin
Inner Diameter After Shrink (Metric)1.17
Inner Diameter Before Shrink (Imperial)0.093
Mil SpecAMS-DTL-23053/5, Class 1
Non-CorrosiveYes
Inner Diameter After Shrink (Imperial)0.046
Overall Length (Imperial) UOMft
Tubing TypeSingle (Thin) Wall
Inner Diameter After Shrink (Metric) UOMmm
Adhesive MaterialNone
Inner Diameter Before Shrink (Metric) UOMmm
Inner Diameter Before Shrink (Metric)2.36
Product ColorBlue
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Inner Diameter Before Shrink (Imperial) UOMin
Maximum Operating Temperature (Celsius) UomDegree
Maximum Operating Temperature (Fahrenheit)275.0
Minimum Expanded Tubing I. D.3.0
