3M Products & Supplies

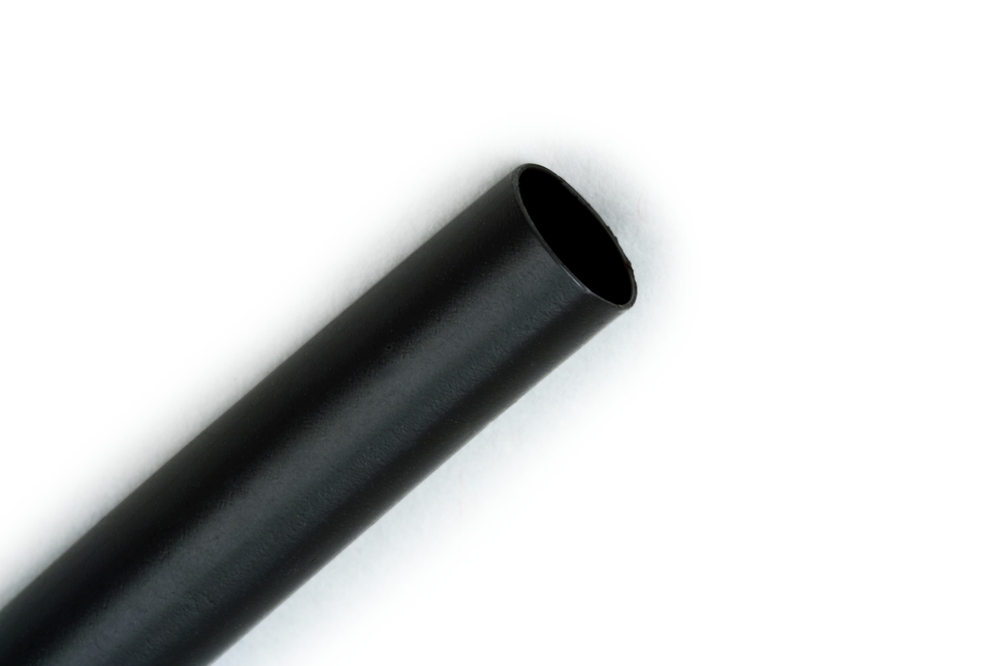

3M™ Heat Shrink Thin-Wall Tubing FP-301VW 3/32-Black-500', 500 ft Length per spool, 3 Rolls/Case - 7010396208

Sold As: 3000-Pack
SKU: 7010396208
MPN: 7010396208
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007084679
3M ID: 80610219356
5 Digit UPC: 8467
$1,598.67 ($0.53 / Count)
Hurry up! Current stock:

Product Description

3M™ FP-301VW Heat Shrink Tubing is a thin wall tubing that provides a balance of electrical, physical and chemical properties. This tubing has a 2:1 shrink ratio and provides insulation for 600V rated applications. It has highly flame retardant, flexible polyolefin construction for moisture seal protection.

Features

  • Suitable for flame-retardant applications requiring UL VW-1 and CSA OFT, fire-resistant wiring
  • Made of black flexible polyolefin
  • Withstands temperatures of -67 to 275 degrees F (-55 to 135 degrees C)
  • Balances electrical, physical and chemical properties for various industrial and military applications
  • Rated for 600V applications
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
MaterialHighly Flame-retardant, Flexible Polyolefin
Operating Temperature (Celsius)-55 to 135 Degrees Celsius
Product ColorBlack
Mil SpecAMS-DTL-23053/5, Class 3
Maximum Operating Temperature (Celsius)135.0
Inner Diameter Before Shrink (Metric)2.36
Non-CorrosiveYes
Minimum Expanded Tubing I. D.3.0
Flame RetardantYes
Tubing TypeSingle (Thin) Wall
Inner Diameter After Shrink (Metric)1.17
Shrink Ratio2:1
Minimum Expanded Tubing I. D. UOMin
Overall Length (Imperial) UOMft
Inner Diameter After Shrink (Metric) UOMmm
Inner Diameter Before Shrink (Imperial)0.093
Maximum Operating Temperature (Celsius) UomDegree
Inner Diameter Before Shrink (Metric) UOMmm
Maximum Operating Temperature (Fahrenheit)275.0
Overall Length (Imperial)500.0
Elongation UOMdB
Inner Diameter Before Shrink (Imperial) UOMin
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Heat Shrink TypeSingle-Wall Polyolefin Heat Shrink Tubing
Maximum Operating Temperature (Fahrenheit) UOMDegree
Inner Diameter After Shrink (Imperial) UOMin
UL File NumberE-39100
Inner Diameter After Shrink (Imperial)0.046
