3M Products & Supplies

3M™ Heat Shrink Thin-Wall Tubing FP-301-1/8-Black-500', 500 ft Length per spool, 3 spools/case - 7100025139

Sold As: 1500-Pack
SKU: 7100025139
MPN: 7100025139
Stock Item: Stock items typically ship within 2-3 business days
UPC: 30054007084724
3M ID: 80610219406
5 Digit UPC: 8472
$767.53 ($0.51 / Count)
Hurry up! Current stock:

Product Description

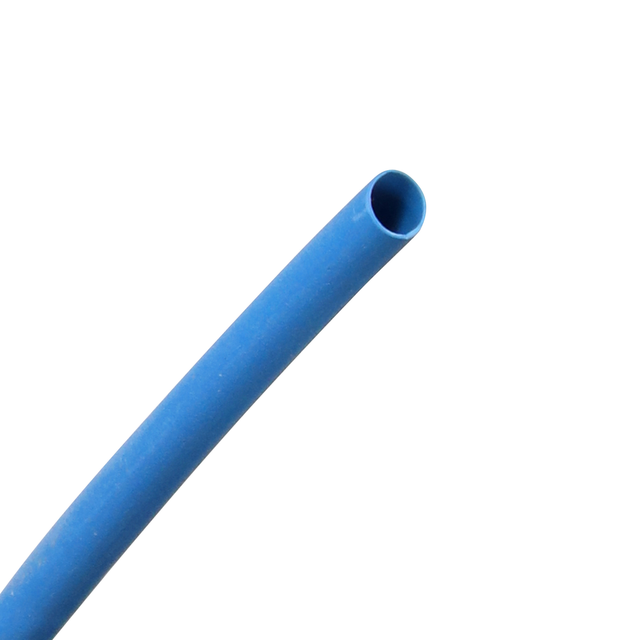

3M™ Heat Shrink Tubing FP-301 is a general purpose, thin wall tubing that provides a balance of electrical, physical and chemical properties, making it ideal for industrial and military applications. This tubing has a 2:1 shrink ratio and provides flame retardant insulation for 600V rated applications. It has a flexible polyolefin construction that offers moisture seal protection.

Features

  • KEY SPECIFICATIONS: UL Listed, File E-39100, SAE AS23053/5, Class 1 (all colors), Class 2 (clear), CSA Certified, and RoHS 2011/65/EU Compliant
  • A VARIETY OF APPLICATIONS: Offers a 2:1 shrink-fit ratio and serves as protection in wire-harnessing, split-resistance covering, wire marking, wire bundling, and component packaging
  • FLAME-RETARDANT TUBING: For applications up to 600V (clear is not flame retardant)
  • HIGH-STRENGTH PROTECTION: Balances electrical, physical, and chemical properties for various industrial and military applications
  • FOR DEMANDING CONDITIONS: Performs at an operating temperature up to 275 °F (135 °C)
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
UL ApprovalYes
Inner Diameter Before Shrink (Metric)3.18
Adhesive MaterialNone
Minimum Expanded Tubing I. D. UOMin
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Maximum Operating Temperature (Fahrenheit) UOMDegree
MaterialFlexible Polyolefin
Inner Diameter After Shrink (Imperial)0.062
Flame RetardantYes
Overall Length (Imperial)500.0
Overall Length (Imperial) UOMft
Tubing TypeSingle Wall (Thin)
Maximum Operating Temperature (Fahrenheit)275.0
Maximum Operating Temperature (Celsius)135.0
Inner Diameter After Shrink (Metric) UOMmm
Non-CorrosiveYes
Heat Shrink TypeSingle-Wall Polyolefin Heat Shrink Tubing
Minimum Shrink Temperature (Celsius)100.0
Operating Temperature Range (Celsius)-55 °C to +135 °C
ApplicationElectrical Insulation; High-tenacity and chemically resistant tubing
Maximum Operating Temperature (Celsius) UomDegree
Inner Diameter Before Shrink (Metric) UOMmm
Units per Case3.0
Inner Diameter Before Shrink (Imperial)0.125
UL File NumberE-39100
Elongation UOM%
Inner Diameter Before Shrink (Imperial) UOMin
Inner Diameter After Shrink (Imperial) UOMin
Mil SpecAMS-DTL-23053/5, Class 1
Minimum Expanded Tubing I. D.1.0
Shrink Ratio2:1
Operating Temperature Range (Fahrenheit)-67 °F to 275 °F
Inner Diameter After Shrink (Metric)1.57
Product ColorBlack
Operating Temperature (Celsius)-55 to 135 Degrees Celsius
