3M Products & Supplies

3M™ Heat Shrink Thin-Wall Tubing FP-301-1/8-White-500', 500 ft Length per spool, 3 Rolls/Case - 7010396212

Sold As: 1500-Pack
SKU: 7010396212
MPN: 7010396212
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00054007084761
3M ID: 80610219448
5 Digit UPC: 8476
$782.18 ($0.52 / Count)
Hurry up! Current stock:

Product Description

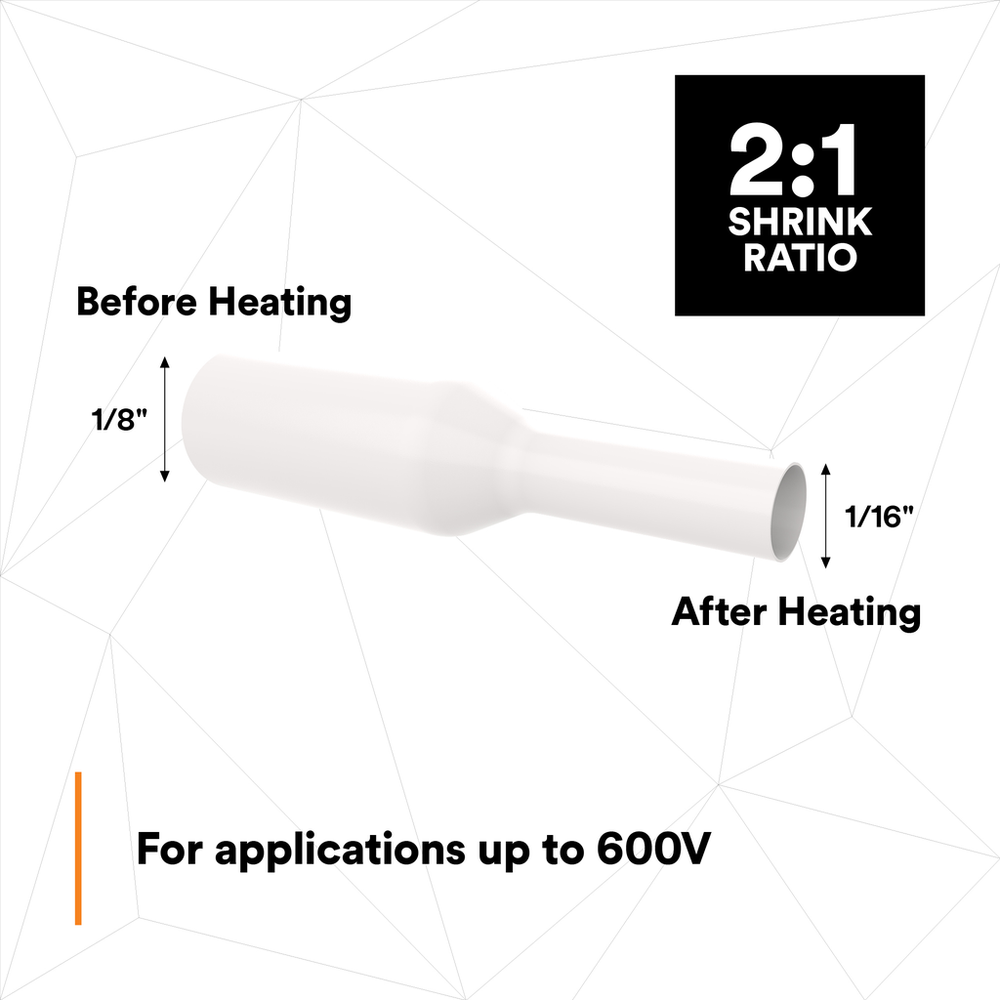

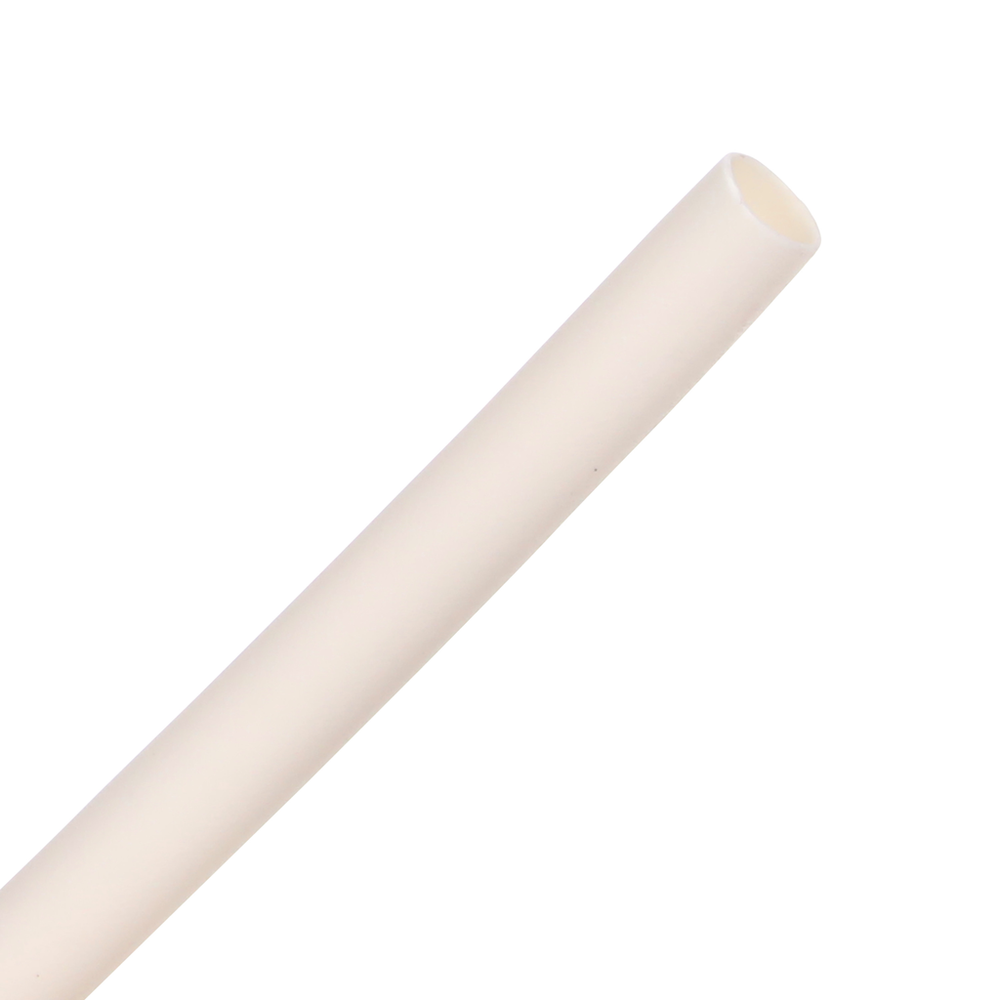

3M™ Heat Shrink Tubing FP-301 is a general purpose, thin wall tubing that provides a balance of electrical, physical and chemical properties, making it ideal for industrial and military applications. This tubing has a 2:1 shrink ratio and provides flame retardant insulation for 600V rated applications. It has a flexible polyolefin construction that offers moisture seal protection.

Features

  • HIGH-STRENGTH PROTECTION: Balances electrical, physical, and chemical properties for various industrial and military applications
  • A VARIETY OF APPLICATIONS: Offers a 2:1 shrink-fit ratio and serves as protection in wire-harnessing, split-resistance covering, wire marking, wire bundling, and component packaging
  • FLAME-RETARDANT TUBING: For applications up to 600V (clear is not flame retardant)
  • KEY SPECIFICATIONS: UL Listed, File E-39100, SAE AS23053/5, Class 1 (all colors), Class 2 (clear), CSA Certified, and RoHS 2011/65/EU Compliant
  • FOR DEMANDING CONDITIONS: Performs at an operating temperature up to 275 °F (135 °C)
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Flame RetardantYes
Inner Diameter After Shrink (Imperial)0.062
Overall Length (Imperial) UOMft
UL File NumberE-39100
Inner Diameter After Shrink (Metric) UOMmm
Non-CorrosiveYes
Inner Diameter After Shrink (Metric)1.57
Mil SpecAMS-DTL-23053/5, Class 1
Inner Diameter After Shrink (Imperial) UOMin
Operating Temperature (Celsius)-55 to 135 Degrees Celsius
Maximum Operating Temperature (Celsius)135.0
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Overall Length (Imperial)500.0
Shrink Ratio2:1
Product ColorWhite
Maximum Operating Temperature (Fahrenheit) UOMDegree
Inner Diameter Before Shrink (Metric)3.18
Maximum Operating Temperature (Fahrenheit)275.0
Inner Diameter Before Shrink (Metric) UOMmm
Heat Shrink TypeSingle-Wall Polyolefin Heat Shrink Tubing
Elongation UOM%
Minimum Expanded Tubing I. D. UOMin
Minimum Expanded Tubing I. D.1.0
Tubing TypeSingle (Thin) Wall
Inner Diameter Before Shrink (Imperial)0.125
Adhesive MaterialNone
ApplicationElectrical Insulation; High-tenacity and chemically resistant tubing
Inner Diameter Before Shrink (Imperial) UOMin
Maximum Operating Temperature (Celsius) UomDegree
