3M Products & Supplies

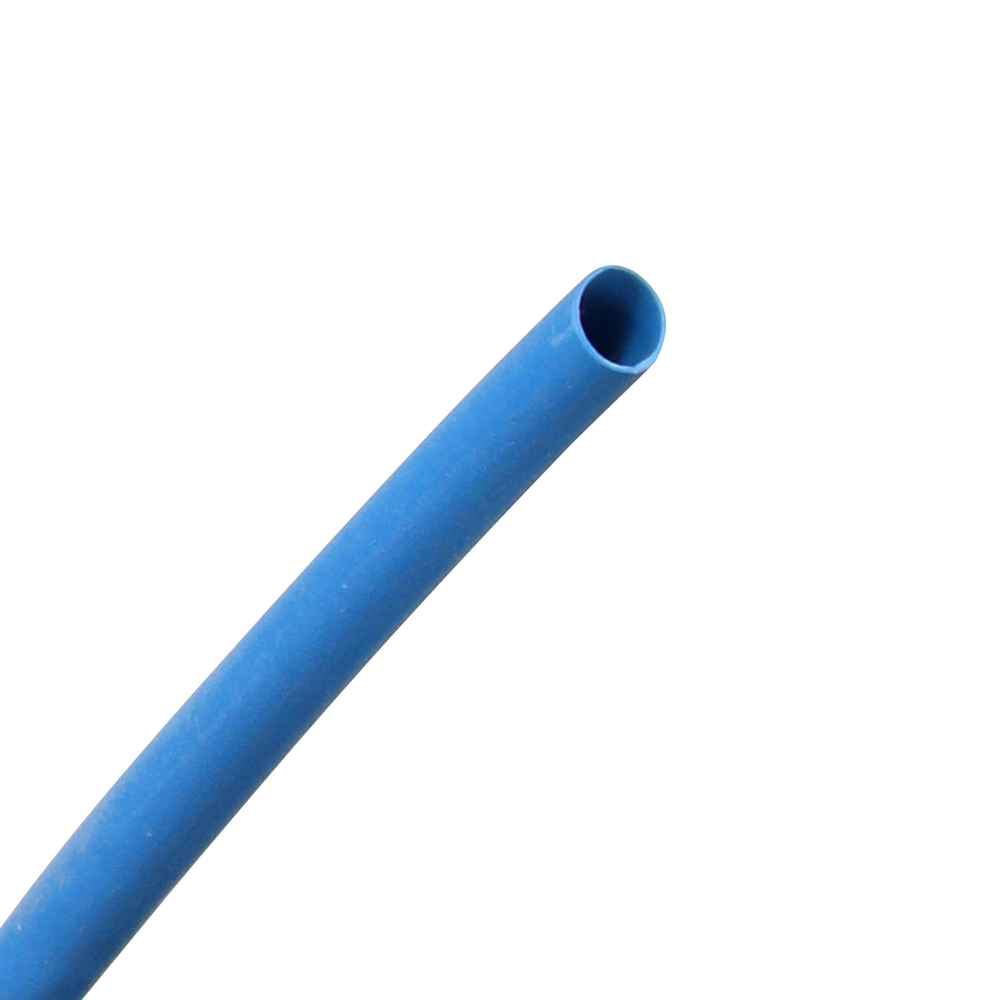

3M™ Heat Shrink Thin-Wall Tubing FP-301-1/8-Blue-500', 500 ft Length per spool, 3 Rolls/Case - 7100020159

Sold As: 1500-Pack
SKU: 7100020159
MPN: 7100020159
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007084747
3M ID: 80610219422
5 Digit UPC: 8474
$821.31 ($0.55 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Tubing FP-301 is a general purpose, thin wall tubing that provides a balance of electrical, physical and chemical properties, making it ideal for industrial and military applications. This tubing has a 2:1 shrink ratio and provides flame retardant insulation for 600V rated applications. It has a flexible polyolefin construction that offers moisture seal protection.

Features

  • FOR DEMANDING CONDITIONS: Performs at an operating temperature up to 275 °F (135 °C)
  • HIGH-STRENGTH PROTECTION: Balances electrical, physical, and chemical properties for various industrial and military applications
  • FLAME-RETARDANT TUBING: For applications up to 600V (clear is not flame retardant)
  • KEY SPECIFICATIONS: UL Listed, File E-39100, SAE AS23053/5, Class 1 (all colors), Class 2 (clear), CSA Certified, and RoHS 2011/65/EU Compliant

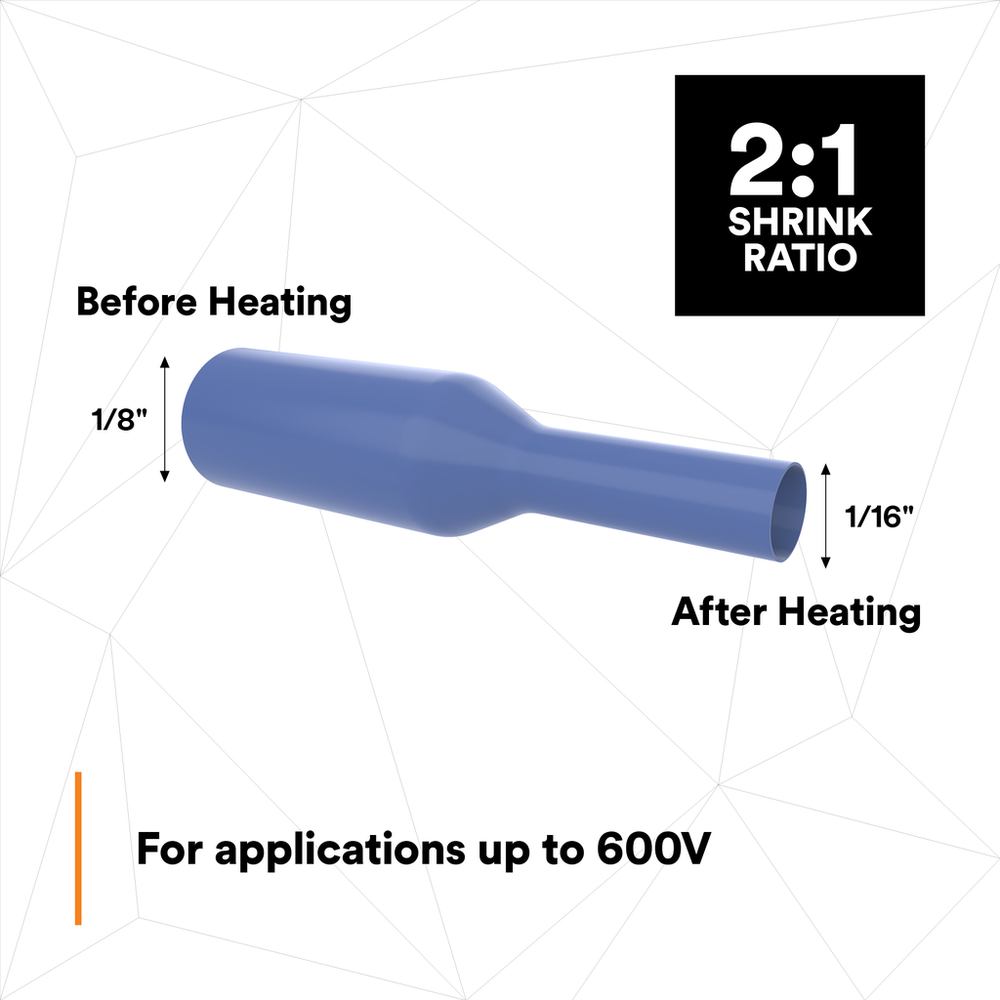

  • A VARIETY OF APPLICATIONS: Offers a 2:1 shrink-fit ratio and serves as protection in wire-harnessing, split-resistance covering, wire marking, wire bundling, and component packaging
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Inner Diameter After Shrink (Metric)0.79
Flame RetardantYes
Inner Diameter Before Shrink (Metric) UOMmm
Elongation UOM%
Product FormStick
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Maximum Operating Temperature (Celsius)135.0
Inner Diameter Before Shrink (Imperial)0.063
Inner Diameter After Shrink (Imperial)0.031
Mil SpecAMS-DTL-23053/5, Class 1
MaterialFlexible Polyolefin
Product ColorBlue
Minimum Expanded Tubing I. D. UOMin
Operating Temperature Range (Fahrenheit)-67 °F to 275 °F
Overall Length (Imperial)500.0
Tubing TypeSingle Wall (Thin)
Heat Shrink TypeSingle-Wall Polyolefin Heat Shrink Tubing
Shrink Ratio2:1
Inner Diameter After Shrink (Metric) UOMmm
Non-CorrosiveYes
UL ApprovalYes
Inner Diameter Before Shrink (Imperial) UOMin
ApplicationElectrical Insulation; High-tenacity and chemically resistant tubing
Maximum Operating Temperature (Celsius) UomDegree
Maximum Operating Temperature (Fahrenheit) UOMDegree
Adhesive MaterialNone
UL File NumberE-39100
Inner Diameter After Shrink (Imperial) UOMin
Overall Length (Imperial) UOMft
Operating Temperature (Celsius)-55 to 135 Degrees Celsius
Minimum Expanded Tubing I. D.1.0
Maximum Operating Temperature (Fahrenheit)275.0
Minimum Shrink Temperature (Celsius)100.0
Operating Temperature Range (Celsius)-55 °C to +135 °C
Inner Diameter Before Shrink (Metric)1.6
